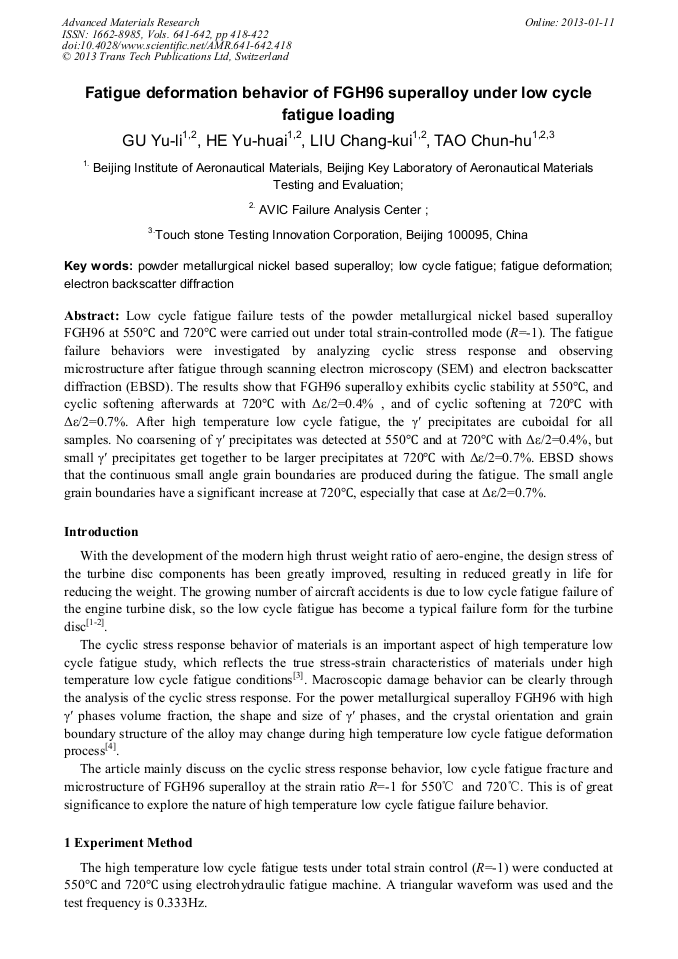

Fatigue Deformation Behavior of FGH96 Superalloy under Low Cycle Fatigue Loading

Abstract:

Low cycle fatigue failure tests of the powder metallurgical nickel based superalloy FGH96 at 550°C and 720°C were carried out under total strain-controlled mode (R=-1). The fatigue failure behaviors were investigated by analyzing cyclic stress response and observing microstructure after fatigue through scanning electron microscopy (SEM) and electron backscatter diffraction (EBSD). The results show that FGH96 superalloy exhibits cyclic stability at 550°C, and cyclic softening afterwards at 720°C with Δε/2=0.4% , and of cyclic softening at 720°C with Δε/2=0.7%. After high temperature low cycle fatigue, the γ′ precipitates are cuboidal for all samples. No coarsening of γ′ precipitates was detected at 550°C and at 720°C with Δε/2=0.4%, but small γ′ precipitates get together to be larger precipitates at 720°C with Δε/2=0.7%. EBSD shows that the continuous small angle grain boundaries are produced during the fatigue. The small angle grain boundaries have a significant increase at 720°C, especially that case at Δε/2=0.7%.

• Periodical: Advanced Materials Research (Volumes 641-642)
• Pages: 418-422
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.641-642.418
• Online since: January 2013
• Authors: Yu Li Gu, Yu Huai He, Chang Kui Liu, Chun Hu Tao
• Keywords: Electron Backscatter Diffraction (EBSD), Fatigue Deformation, Low Cycle Fatigue, Powder Metallurgical Nickel Based Superalloy

References

[1] Karimbaev K D, Servetnik A D. Low-cycle fatigue life assessment for gas turbine engine disks under flight cycle conditions[J]. Strength of Materials, 2009, 41(1): 102-105.

DOI: 10.1007/s11223-009-9105-8

[2] Shanyavskiy A A, Potapenko Yu A. In-service fatigue mechanisms in covered disks of a TV3-117VK helicopter turbine engine[J]．Strength of Materials, 200841(1): 158-161.

DOI: 10.1007/s11223-008-0041-9

[3] Heilmaier M, Maier H J, et al．Cycli stress-strain response of the ODS nickel-base superalloy PM1000 under variable amplitude loading at high temperatures[J]. Materials Science and Engineering A, 281(11): 37-44.

DOI: 10.1016/s0921-5093(99)00739-x

[4] Zhou H, Ro Y, Harada K, et al．Deformation microstructures after low-cycle fatigue in a fourth-generation Ni-base SC superalloy TMS-138[J]．Materials Science and Engineering A, 2004: 20-27.

DOI: 10.1016/j.msea.2004.04.051

[5] Rahmani Kh, Nategh S．Low cycle fatigue mechanism of Rene80 at high temperature-high strain[J]．Materials Science and Engineering, 2008, 494(1-2): 385-390.

DOI: 10.1016/j.msea.2008.04.067
