Photoelectric Characteristics of ZnO Nanowires Grown on AZO Thin Film

Su Hua Yang; Yi Ming Hsh; Li Hsiang Wang; Ming Yu Chang; Ting Jen Hsueh

doi:10.4028/www.scientific.net/AMR.646.51

Paper Titles

Preparation and Curing Behaviour of N-Phenylmaleimide-Styrene-Maleic Anhydride Copolymer/o-Cresol Formaldehyde Epoxy Resin Composite System
p.30

Deterministic Single InGaN Quantum Dots grown on GaN Micro-Pyramid Arrays
p.34

Study on the Effect of Matrix Properties on the Mechanical Performance of Carbon Fabric Composites
p.38

Research Progress of Surface Treatment Techniques in the Application of Fouling Prevention and Heat Transfer Enhancement
p.44

Photoelectric Characteristics of ZnO Nanowires Grown on AZO Thin Film
p.51

Comparative Evaluation of Different Methods for Preparation of SiO₂/Epoxy Nanocomposite
p.55

Influence of Magnetoelastic Anisotropy on Properties of Nanostructured Microwires
p.59

Distribution Time of Gold Nanoparticles Pass through the Solid State Nanopore in Deionized Water
p.67

Synthesis of Silver Nanowire Using a Template Wetting Process
p.72

HomeAdvanced Materials ResearchAdvanced Materials Research Vol. 646Photoelectric Characteristics of ZnO Nanowires...

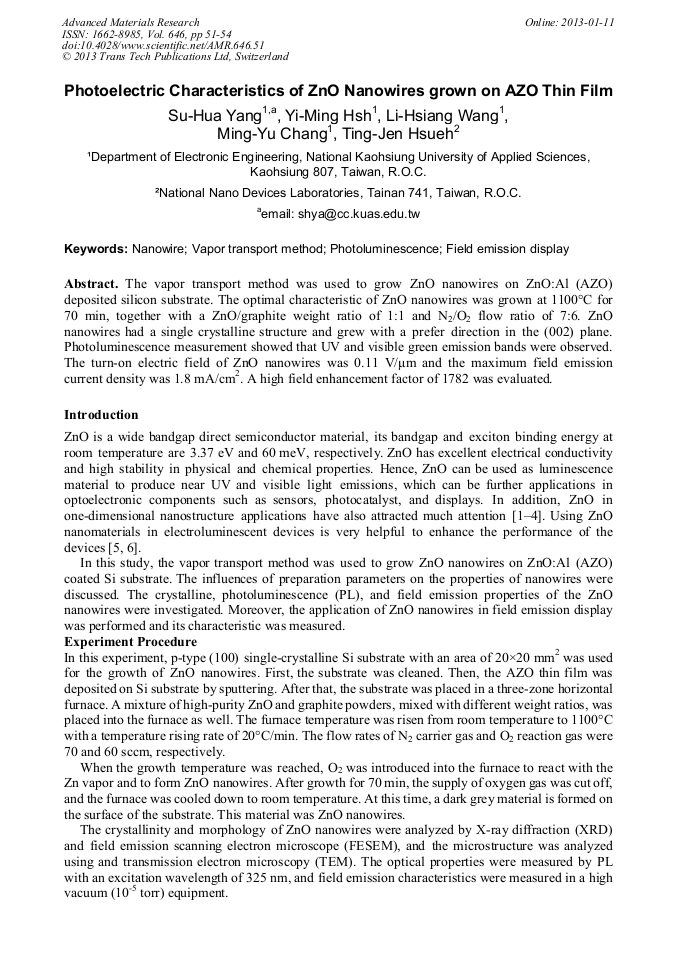

Photoelectric Characteristics of ZnO Nanowires Grown on AZO Thin Film

Abstract:

The vapor transport method was used to grow ZnO nanowires on ZnO:Al (AZO) deposited silicon substrate. The optimal characteristic of ZnO nanowires was grown at 1100°C for 70 min, together with a ZnO/graphite weight ratio of 1:1 and N2/O2 flow ratio of 7:6. ZnO nanowires had a single crystalline structure and grew with a prefer direction in the (002) plane. Photoluminescence measurement showed that UV and visible green emission bands were observed. The turn-on electric field of ZnO nanowires was 0.11 V/μm and the maximum field emission current density was 1.8 mA/cm2. A high field enhancement factor of 1782 was evaluated.
