Using Modified Creep and Recovery Tests to Evaluate the Foam-Based Warm Mix Asphalt Contained Nano Hydrated Lime

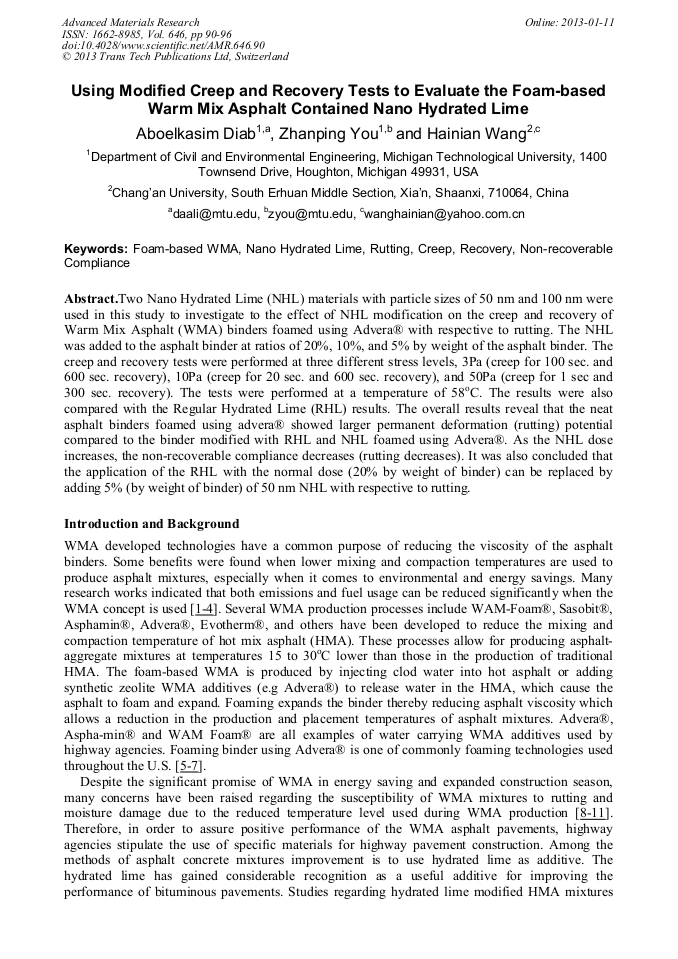

Article Preview

Abstract:

Two Nano Hydrated Lime (NHL) materials with particle sizes of 50 nm and 100 nm were used in this study to investigate to the effect of NHL modification on the creep and recovery of Warm Mix Asphalt (WMA) binders foamed using Advera® with respective to rutting. The NHL was added to the asphalt binder at ratios of 20%, 10%, and 5% by weight of the asphalt binder. The creep and recovery tests were performed at three different stress levels, 3Pa (creep for 100 sec. and 600 sec. recovery), 10Pa (creep for 20 sec. and 600 sec. recovery), and 50Pa (creep for 1 sec and 300 sec. recovery). The tests were performed at a temperature of 58oC. The results were also compared with the Regular Hydrated Lime (RHL) results. The overall results reveal that the neat asphalt binders foamed using advera® showed larger permanent deformation (rutting) potential compared to the binder modified with RHL and NHL foamed using Advera®. As the NHL dose increases, the non-recoverable compliance decreases (rutting decreases). It was also concluded that the application of the RHL with the normal dose (20% by weight of binder) can be replaced by adding 5% (by weight of binder) of 50 nm NHL with respective to rutting.

You might also be interested in these eBooks
Advanced Technologies in Nano Materials and Electric Devices View Preview

Info:

Periodical:

Advanced Materials Research (Volume 646)

Pages:

90-96

DOI:

https://doi.org/10.4028/www.scientific.net/AMR.646.90

Citation:

Cite this paper

Online since:

January 2013

Authors:

Aboelkasim Diab, Zhan Ping You, Hai Nian Wang

Keywords:

Creep, Foam-Based WMA, Nanohydrated Lime, Non-Recoverable Compliance, Recovery, Rutting

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

© 2013 Trans Tech Publications Ltd. All Rights Reserved

Share:

Citation:

References

[1] S. W. Goh and Z. You: Preliminary Study of Evaluating Asphalt Pavement Rutting Performance Using The Mechanistic-Empirical Pavement Design Guide, Proceedings of the 14th Conference on Cold Regions Engineering, American Society of Civil Engineers, Duluth, Minnesota, 366-373, (2009).

DOI: 10.1061/41072(359)36

Google Scholar

[2] J. W. Button, C. Estakhri, and A. Wimsatt: A Synthesis of Warm-Mix Asphalt, Report 0-5597-1, Texas Transportation Institute, Austin, Texas, (2007).

Google Scholar

[3] M. M. Hassan: Life-Cycle Assessment of Warm-Mix Asphalt: Environmental and Economic Perspectives, Transportation Research Board, (2009).

Google Scholar

[4] Z. You and S.W. Goh: Laboratory Evaluation of Warm Mix Asphalt: A Preliminary Study, International Journal of Pavement Research and Technology, 1(1): pp.34-40, (2008).

Google Scholar

[5] J. D'Angelo, E. Harm, J. Bartozsek, G. Baumgardner, M. Corrigan, J. Cowsert, T. Harman, M. Jamshidi, W. Jones, D. Newcomb, B. Prowell, R. Sines, and B. Yeaton: Warm Mix Asphalt: European Practice, FHWA report no: FHWA-PL-08-007. 68p, (2008).

Google Scholar

[6] A. Jamshidi, M.O. Hamzah, and Z. You: Performance of Warm Mix Asphalt containing Sasobit®: State-of-the-art, Construction and Building Materials. 38: pp.530-553, (2012).

DOI: 10.1016/j.conbuildmat.2012.08.015

Google Scholar

[7] S.W. Goh and Z. You: Mechanical Properties of Porous Asphalt Pavement Materials with Warm Mix Asphalt and RAP, ASCE Journal of Transportation Engineering. 138(1): pp.90-97, (2012).

DOI: 10.1061/(asce)te.1943-5436.0000307

Google Scholar

[8] S. W. Goh and Z. You: Resilient Modulus and Dynamic Modulus of Warm Mix Asphalt, GeoCongress 2008, Geosustainability and Geohazard Mitigation, Geotechnical Special Publication (GSP 178), American Society of Civil Engineers, 1000-1007, (2008).

DOI: 10.1061/40971(310)125

Google Scholar

[9] G. C. Hurley, B. D. Prowell, G. Reinke, P. Joskowicz, R. Davis, J. Scherocman, S. Brown, X. Hongbin, and D. Bonte: Evaluation of Potential Processes For Use In Warm Mix Asphalt, Association of Asphalt Paving Technologist, White Bear Lake, MN 55110, United States, Savannah, GA, United States, 41-90., (2006).

Google Scholar

[10] N. M. Wasiuddin, S. Selvamohan, M. M. Zaman, and M. L. T. A. Guegan: A Comparative Laboratory Study of Sasobit® and Aspha-min® in Warm-Mix Asphalt, Transportation Research Board 86th Annual Meeting, Washington DC, United States, (2007).

DOI: 10.3141/1998-10

Google Scholar

[11] N. M. Wasiuddin, M.M. Zaman, and E. A. Rear: Effect of Sasobit and Asphamin on Wettability and Adhesion Between Asphalt Binders and Aggregates, Transportation Research Board, (2008).

DOI: 10.3141/2051-10

Google Scholar

[12] D. N. Little and J. Epps: The benefits of hydrated lime in hot mix asphalt, Report for national lime association, (2001).

Google Scholar

[13] P. E. Sebaaly, E. Hilty, and D. Weizel: Effectiveness of lime in hot mix asphalt pavement, University of Nevada,. Reno, http: /www. wrscunt. edu/WRSCMoisture_files/repor. pdf., (2001).

Google Scholar

[14] J. C. Peterson: Lime treatment of asphalt to reduce age hardening and improve flow properties, Presentation at the Annul meeting of AAPT, Reno, Nevada, pp.23-25, (1987).

Google Scholar

[15] A. Diab, Z. You, A.M. Othman, and H.Y. Ahmed: Fatigue characteristics of Hydrated Lime Modified HMA, International Journal of Pavement Research and Technology (IJPRT), (2012).

Google Scholar

[16] F. Xiao, S.N. Amirkhanian, and B.J. Putman: Evaluation of rutting resistance in warm-mix asphalts containing moist aggregate, Transport Res Rec: J Transport Res Board, 2180 (2010), p.75–84 http: /dx. doi. org/10. 3141/2180-09, (2010).

DOI: 10.3141/2180-09

Google Scholar

[17] J. Shen, B. Huang, X. Shu, and B. Tang: Influence of nano-sized hydrated lime (HL) on selected properties of hot-mix asphalt (HMA), Int J Pavement Res Technol, 4 (4) (2010), p.252–257, (2010).

Google Scholar

[18] J. Cheng, J. Shen, and F. Xiao: Moisture susceptibility of warm mix asphalt mixtures containing nanosized hydrated lime, Journal of Material in Civil Engeering, p.265, (2011).

DOI: 10.1061/(asce)mt.1943-5533.0000308

Google Scholar

[19] J. D'Angelo, R. Kluttz, R. Dongre, K. Stephens, and L. Zanzotto: Revision of the Superpave High Temperature Binder Specification: The Multiple Stress Creep Recovery Test, Asphalt Paving Technology, v76, no. 123, (2007).

Google Scholar

[20] J. D'Angelo, R. Dongre, and G. Reinke: Evaluation of Repeated Creep and Recovery Test Method as an Alternative to SHRP+ Requirements for Polymer Modified Asphalt Binders, Proceedings, Canadian Technical Asphalt Association, (2006).

Google Scholar

[21] J. D'Angelo and R. Dongre: Practical Use of the MSCR Test: Characterization of SBS Dispersion and Other Additives in PMA Binders, Transportation Research Board Annual Meeting, (2009).

Google Scholar

[22] A. Dreessen, J.P. Planche, and V. Gandel: A new performance related test method for rutting prediction: MSCRT, Advanced Testing and Characterization of Bituminous Materials, (2009).

DOI: 10.1201/9780203092989.ch93

Google Scholar

[23] T. L. J. Wasage, J. Stastna, and L. Zanzotto: Rheological Analysis of Multiple Stress Creep and Recovery (MSCR) test, International Journal of Pavement Engineering, (2011).

DOI: 10.1080/10298436.2011.573557

Google Scholar
