Kinematic and Dynamic Stress Analysis of the Structural System of Wheel Loader Based on the Rigid-Flexible Coupling

Abstract:

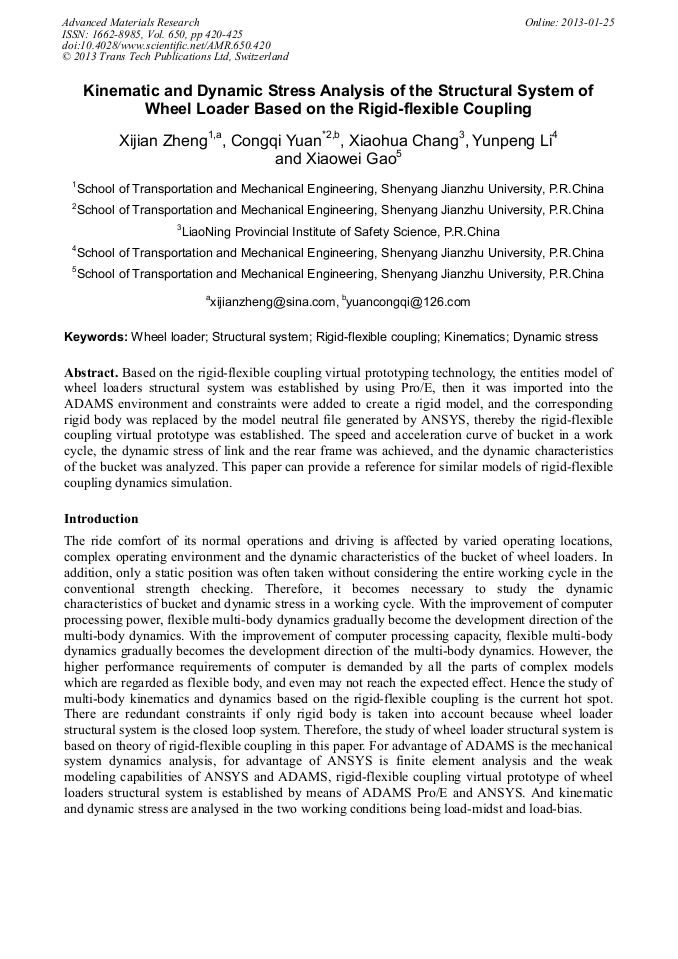

Based on the rigid-flexible coupling virtual prototyping technology, the entities model of wheel loaders structural system was established by using Pro/E, then it was imported into the ADAMS environment and constraints were added to create a rigid model, and the corresponding rigid body was replaced by the model neutral file generated by ANSYS, thereby the rigid-flexible coupling virtual prototype was established. The speed and acceleration curve of bucket in a work cycle, the dynamic stress of link and the rear frame was achieved, and the dynamic characteristics of the bucket was analyzed. This paper can provide a reference for similar models of rigid-flexible coupling dynamics simulation.
