HomeAdvanced Materials ResearchAdvanced Materials Research Vol. 651Effect of Two-Step Deposition Process on...

Effect of Two-Step Deposition Process on Morphology and Optical Properties of Nanostructured Diamond Films

Abstract:

The morphology and optical properties of nanostructured diamond films affected by the two-step deposition process with changing CH₄ concentration were investigated. The CH₄ concentration was 1% for the first step and 2% for the second step. The films were prepared by chemical vapor deposition in a microwave plasma reactor with a CH₄/H₂ gas mixture. Nanocrystalline columnar-structured diamond film with lowering of sp²-bonded carbon content was achieved by the two-step deposition process. Unlike that of the single-step process with 1%CH₄, the two-step process promoted the morphology to more uniform and smoother film. The two-step process increased the higher grain boundary as well as decreased the sp²-bonded carbon content in the film, as compared with the single-step process with 2%CH4_{Subscript text}.

You might also be interested in these eBooks

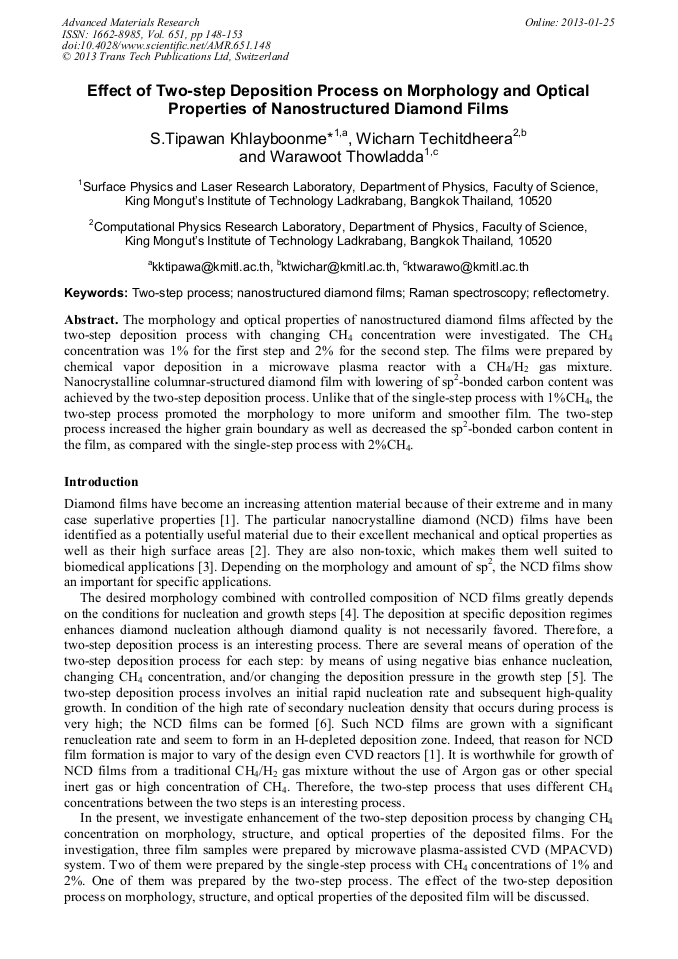

View Preview

Info:

Periodical:

Advanced Materials Research (Volume 651)

Pages:

148-153

DOI:

https://doi.org/10.4028/www.scientific.net/AMR.651.148

Citation:

Cite this paper

Online since:

January 2013

Authors:

S. Tipawan Khlayboonme, Wicharn Techitdheera, Warawoot Thowladda

Keywords:

Nanostructured Diamond Films, Raman Spectroscopy, Reflectometry, Two-Step Process

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] O.A. Williams: Diamond Relat. Mater. Vol. 20 (2011), p.621.

Google Scholar

[2] V. N. Mochalin, O. Shenderova, D. Ho and Y. Gogotsi: Nature Nanotechnology Vol. 7 (2012), p.11.

Google Scholar

[3] J. E. Butler and A. V. Sumant: Chem. Vap. Deposition, Vol. 14 (2008), p.145.

Google Scholar

[4] H. Ye, C. Q. Sun, P. Hing, H. Xie, S. Zhang and J. Wei: Surf. Coat. Technol. Vol. 123 (2003), p.129.

Google Scholar

[5] S.B. Abu Suilik, D. Shimamoto, H. Kitagawa, K. Hasezaki and Y. Noda: Diamond Relat. Mater. Vol. 15 (2006), p.1765.

DOI: 10.1016/j.diamond.2006.03.009

Google Scholar

[6] O.J.L. Fox, J. Ma, P.W. May, M.N.R. Ashfold and Yu.A. Mankelevich: Diamond Relat. Mater. Vol. 18 (2009), p.750.

Google Scholar

[7] P.W. May, N.L. Allan, M.N.R. Ashfold, J.C. Richley and Yu.A. Mankelevich: Diamond Relat. Mater. Vol. 19 (2010), p.389.

Google Scholar

[8] F. Klauser, D. Steinmüller-Nethl, R. Kaindl, E. Bertel and N. Memmel: Chem. Vap. Deposition Vol. 16 (2010), p.127.

DOI: 10.1002/cvde.200906827

Google Scholar

[9] A.K. Arora, M. Rajalakshmi and T.R. Ravindran: Encyclopedia of Nanosicence and Nanotechnology Vol. 8 (2004), p.499.

Google Scholar

[10] S. C. Ramos, A. F. Azevedo, M. R. Baldan and N. G. Ferreira: J. Vac. Sci. Technol. A Vol. 28 (2010), p.27.

Google Scholar

[11] Z. Yin, H. S. Tan and F. W. Smith: Diamond Relat. Mater. Vol. 5 (1996), p.1490.

Google Scholar
