The Effect of Aging on the Corrosion Property of Al-7Si-0.3Mg

You Bin Wang; Jian Min Zeng

doi:10.4028/www.scientific.net/AMR.652-654.1124

Paper Titles

Microstructure and Growth Behavior of the Intermetallic Compound for Sn-1.0Ag-0.5Cu-NiB/Cu Solder Joint Interface
p.1106

Eutectoid Transformation in Zn Alloy with High Al Content
p.1111

High Temperature Oxidation Behaviour of AlCuTiFeNiCr High-Entropy Alloy
p.1115

Microstructure Evolution of Al-Ti-C Alloy Wires during Remelting Process
p.1119

The Effect of Aging on the Corrosion Property of Al-7Si-0.3Mg
p.1124

Precipitation Kinetics and Behavior of δ Phase in Inconel 718 Alloy
p.1128

Research on Multiple Plastic Deformations of Ultra-High Strength Aluminium Alloy
p.1132

Prediction of Electrical Conductivity of Cu-15Ni-8Sn-XSi Alloys Using the Physical Model and Artificial Intelligence Model
p.1138

Preparation and Corrosion Resistance of Cu-Based Bulk Glassy Alloys
p.1143

HomeAdvanced Materials ResearchAdvanced Materials Research Vols. 652-654The Effect of Aging on the Corrosion Property of...

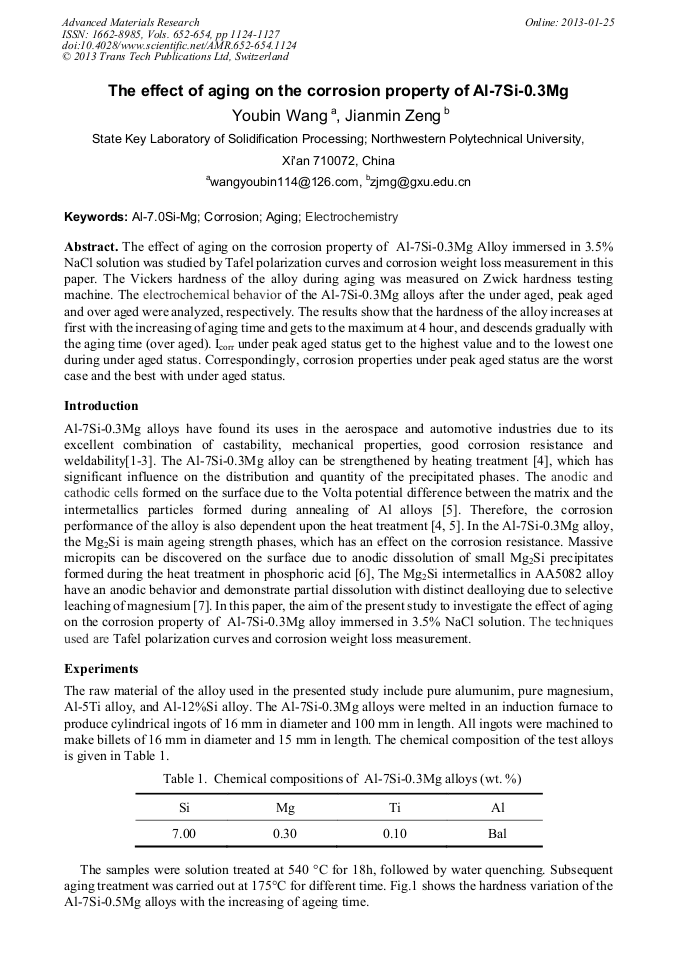

The Effect of Aging on the Corrosion Property of Al-7Si-0.3Mg

Abstract:

The effect of aging on the corrosion property of Al-7Si-0.3Mg Alloy immersed in 3.5% NaCl solution was studied by Tafel polarization curves and corrosion weight loss measurement in this paper. The Vickers hardness of the alloy during aging was measured on Zwick hardness testing machine. The electrochemical behavior of the Al-7Si-0.3Mg alloys after the under aged, peak aged and over aged were analyzed, respectively. The results show that the hardness of the alloy increases at first with the increasing of aging time and gets to the maximum at 4 hour, and descends gradually with the aging time (over aged). Icorr under peak aged status get to the highest value and to the lowest one during under aged status. Correspondingly, corrosion properties under peak aged status are the worst case and the best with under aged status.
