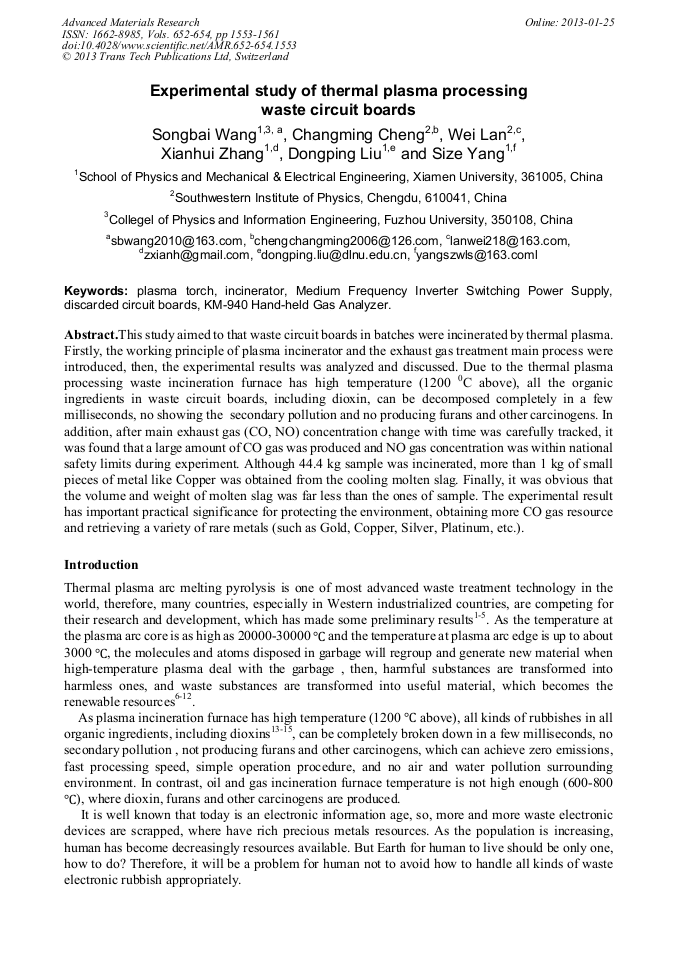

Experimental Study of Thermal Plasma Processing Waste Circuit Boards

Abstract:

This study aimed to that waste circuit boards in batches were incinerated by thermal plasma. Firstly, the working principle of plasma incinerator and the exhaust gas treatment main process were introduced, then, the experimental results was analyzed and discussed. Due to the thermal plasma processing waste incineration furnace has high temperature (1200 0C above), all the organic ingredients in waste circuit boards, including dioxin, can be decomposed completely in a few milliseconds, no showing the secondary pollution and no producing furans and other carcinogens. In addition, after main exhaust gas (CO, NO) concentration change with time was carefully tracked, it was found that a large amount of CO gas was produced and NO gas concentration was within national safety limits during experiment. Although 44.4 kg sample was incinerated, more than 1 kg of small pieces of metal like Copper was obtained from the cooling molten slag. Finally, it was obvious that the volume and weight of molten slag was far less than the ones of sample. The experimental result has important practical significance for protecting the environment, obtaining more CO gas resource and retrieving a variety of rare metals (such as Gold, Copper, Silver, Platinum, etc.).

• Periodical: Advanced Materials Research (Volumes 652-654)
• Pages: 1553-1561
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.652-654.1553
• Online since: January 2013
• Authors: Song Bai Wang, Chang Ming Cheng, Wei Lan, Xian Hui Zhang, Dong Ping Liu, Si Ze Yang
• Keywords: DC Plasma Torch, Discarded Circuit Boards, Incinerator, KM-940 Hand-Held Gas Analyzer, Medium Frequency Inverter Switching Power Supply

References

[1] Brilhac J F, Pateyron B, Coudert J F, et al., Plasma Chem. Plasma Process 15: 257, (1995).

[2] Brilhac J F, Pateyron B, Delluc G, et al., Plasma Chem. Plasma Process 15: 231(1995).

[3] Koutaro Katou, Tomonori Asou,Yoshihihito Kurauchi,Ryoji Sameshima., Thin Solid Films, 386:183～188,(2001)

DOI: 10.1016/s0040-6090(00)01640-0

[4] Min Hur，Keun Su Kim, Sang Hee Hong., Plasma Sources Sci. Techn.12: 255(2003).

[5] Valincius V, Krusinskaite V, Valatkevicius P, et al., Plasma Sources Sci. Techn.13:199(2004).

[6] Beauchesne, I., Meunier, N., Drogui, P., Hausler, R., Mercier, G., Blais J.F., Journal of Hazardous Materials B120,201–211(2005).

DOI: 10.1016/j.jhazmat.2005.01.006

[7] Environmental Protection Agency, EPA, Taipei, ROC(2002).

[8] Jung, C.H., Matsuto, T., Tanaka, N., Okada, T.. Waste Management 24, 381–391(2004).

[9] Kuo, Y.M., Lin, T.C., Tsai, P.J., Journal of Hazardous Materials B109, 79–84(2004).

[10] Nae-Wen Kuo, Hwong-Wen Ma, et al., Waste Management 27 , 1673–1679(2007).

[11] Van Gerven, T., Van Keer, E., et al., Waste Management 25, 291–300(2005b).

[12] C. Vandecasteele, G. Wauters, et al., Waste Management 27, 1366–1375(2007).

[13] Ecke H,Sakanakura H,Matsuto T,et al.,.Waste Management & Research 18(1): 41~51(2000).

[14] Hirth M,Wieckert CH,Jochum J,Jodeit H., Recycling International 2:1561～1566(1989).

[15] Vehlow, J., Hunsinger, H., Mark, F.E., In: 2nd WTERT Meeting, 13–14 November 2003, Columbia University, New York(2003).

[16] Andy Spoerri , Daniel J. Lang, et al., Waste Management 30, 1382–1394(2010)

[17] Beukens, A., Rivet, F., Process Safety and Environmental Protection 78, 5–14(2000).

[18] European IPPC Bureau, 2005. Integrated Pollution Prevention and Control, Reference Document on the Best Available Techniques for Waste Incineration, July 2005. Available from: <http://cippcb.jrc.es>.

[19] Margarida J. Quina, et al., Waste Management 29 , 2483–2493(2009).

[20] Morselli, L., Bartoli, M., Bertacchini, M., Brighetti, A., Luzi, J., Passarini, F., Masoni, P., Waste Management 25, 191–196(2005).

DOI: 10.1016/j.wasman.2004.12.008

[21] Ole Hjelmar.Journal of Hazardous Materials 47:345～368(1996).

[22] Sabbas, T., Polettini, A., et al., Waste Management 23, 61–88(2003).

[23] Young Jun Park,Jong Heo., Journal of Hazardous Materials B91:83～93(2002).

[24] Abe S,Kanbayashi F,Yoshida Y,Ikeda M., Kubota Technical Report 35, 3～11(1998).

[25] Bawkon, B., Pollution Engineering 23, 96–109(1991).
