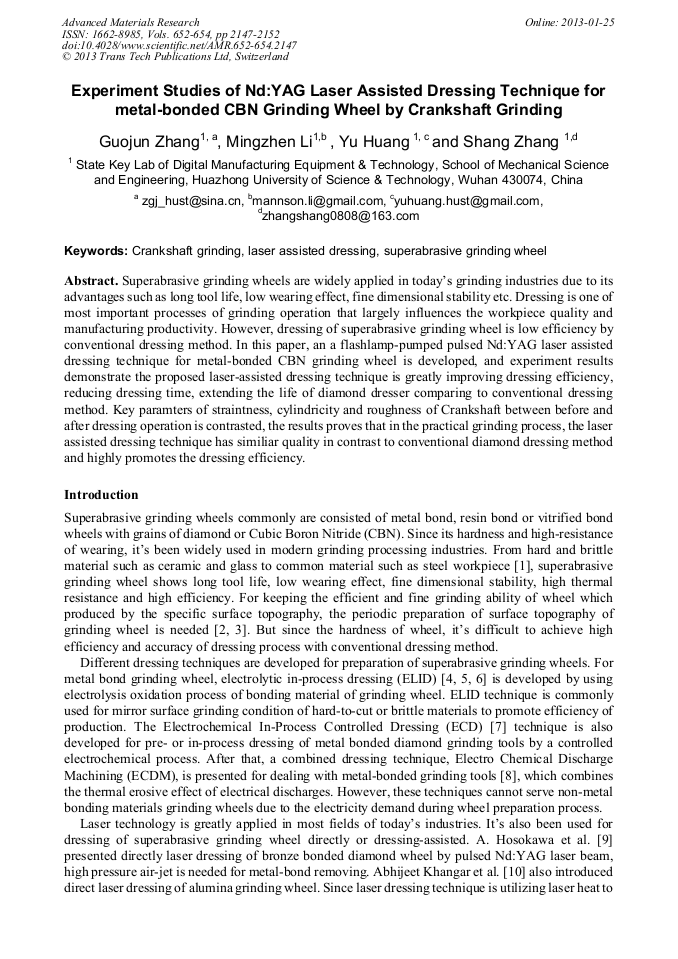

Experiment Studies of Nd:YAG Laser Assisted Dressing Technique for Metal-Bonded CBN Grinding Wheel by Crankshaft Grinding

Abstract:

Superabrasive grinding wheels are widely applied in today’s grinding industries due to its advantages such as long tool life, low wearing effect, fine dimensional stability etc. Dressing is one of most important processes of grinding operation that largely influences the workpiece quality and manufacturing productivity. However, dressing of superabrasive grinding wheel is low efficiency by conventional dressing method. In this paper, an a flashlamp-pumped pulsed Nd:YAG laser assisted dressing technique for metal-bonded CBN grinding wheel is developed, and experiment results demonstrate the proposed laser-assisted dressing technique is greatly improving dressing efficiency, reducing dressing time, extending the life of diamond dresser comparing to conventional dressing method. Key paramters of straintness, cylindricity and roughness of Crankshaft between before and after dressing operation is contrasted, the results proves that in the practical grinding process, the laser assisted dressing technique has similiar quality in contrast to conventional diamond dressing method and highly promotes the dressing efficiency.

• Periodical: Advanced Materials Research (Volumes 652-654)
• Pages: 2147-2152
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.652-654.2147
• Online since: January 2013
• Authors: Guo Jun Zhang*, Ming Zhen Li, Yu Huang, Shang Zhang
• Keywords: Crankshaft Grinding, Laser Assisted Dressing, Superabrasive Grinding Wheel

References

[1] Tricard M. Webster, J. Innovations in abrasive products for precision grinding. CIRP Annals - Manufacturing Technology, 53:597–617, 2004.

DOI: 10.1016/s0007-8506(07)60031-6

[2] M. C¸inar E. Brinksmeier. Characterization of dressing processes by determination of the collision number of the abrasive grits. CIRP Annals - Manufacturing Technology, 44:299–304, 1995.

DOI: 10.1016/s0007-8506(07)62330-0

[3] König W. Klocke, F. Appropriate conditioning strategies increase the performance capabilities of vitrified-bond cbn grinding wheels. CIRP Annals - Manufacturing Technology, 44:305–310, 1995.

DOI: 10.1016/s0007-8506(07)62331-2

[4] A. Senthil Kumar M.Rahman H.S. Lim, K.Fathima. A fundamental study on the mechanism of electrolytic in-process dressing (elid) grinding. International Journal of Machine Tools & Manufacture, 42:935–943, 2002.

DOI: 10.1016/s0890-6955(02)00023-8

[5] Ioan Marinescu Radu Pavel, Madalina Pavel. Investigation of predressing time for ELID grinding technique. Journal of Materials Processing Technology, 149:591–596, 2004.

DOI: 10.1016/j.jmatprotec.2004.02.026

[6] B.P. Bandyopadhyay H.Ohmori, I.Takahashi. Ultra-precision grinding of structural ceramics by electrolytic in-process dressing (elid) grinding.

DOI: 10.1016/0924-0136(95)02079-9

[7] B. Schumacher D. Kramer, F. Rehsteiner. Ecd (electrochemical in-Process controlled dressing), a new method for grinding of modern high-performance cutting materials to highest quality. CIRP Annals - Manufacturing Technology, 48:265–268, 1999.

DOI: 10.1016/s0007-8506(07)63180-1

[8] M. Boccadoro D. Kramer B. Schumacher M. Schöpf, I. Beltrami. ECDM (electro chemical discharge machining), a new method for trueing and dressing of metal bonded diamond grinding tools. CIRP Annals -Manufacturing Technology, 50:125–128, 2001.

DOI: 10.1016/s0007-8506(07)62086-1

[9] T. Yunoki A. Hosokawa, T. Ueda. Laserdressing of metal bonded diamond wheel. CIRP Annals - Manufacturing Technology, 55:329–332, 2006.

DOI: 10.1016/s0007-8506(07)60428-4

[10] Mark J. Jackson Abhijeet Khangar, Narendra B. Dahotre and Grant M. Robinson. Laser dressing of alumina grinding wheels. Journal OF Materials Engineering and Performance, 15:178–181, 2006.

DOI: 10.1361/105994906x95832

[11] Yung C Shin Chunhe Zhang. A novel laser-assisted truing and dressing technique for vitrified cbn wheels. International Journal of Machine Tools and Manufacture, 42:825–835, 2002.

DOI: 10.1016/s0890-6955(02)00014-7

[12] Yung C Shin Chunhe Zhang. Wear of diamond dresser in laser assisted truing and dressing of vitrified cbn wheels. International Journal of Machine Tools and Manufacture, 43:41–49, 2003.

DOI: 10.1016/s0890-6955(02)00161-x
