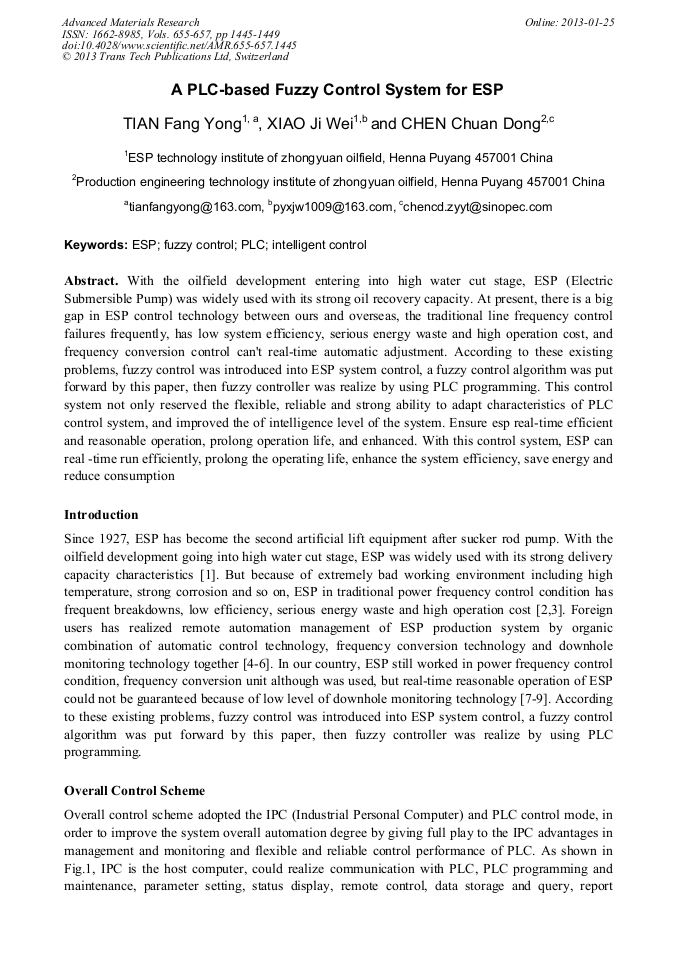

A PLC-Based Fuzzy Control System for ESP

Abstract:

With the oilfield development entering into high water cut stage, ESP (Electric Submersible Pump) was widely used with its strong oil recovery capacity. At present, there is a big gap in ESP control technology between ours and overseas, the traditional line frequency control failures frequently, has low system efficiency, serious energy waste and high operation cost, and frequency conversion control can't real-time automatic adjustment. According to these existing problems, fuzzy control was introduced into ESP system control, a fuzzy control algorithm was put forward by this paper, then fuzzy controller was realize by using PLC programming. This control system not only reserved the flexible, reliable and strong ability to adapt characteristics of PLC control system, and improved the of intelligence level of the system. Ensure esp real-time efficient and reasonable operation, prolong operation life, and enhanced. With this control system, ESP can real -time run efficiently, prolong the operating life, enhance the system efficiency, save energy and reduce consumption

• Periodical: Advanced Materials Research (Volumes 655-657)
• Pages: 1445-1449
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.655-657.1445
• Online since: January 2013
• Authors: Fang Yong Tian, Ji Wei Xiao, Chuan Dong Chen
• Keywords: ESP, Fuzzy Control, Intelligent Control, Programmable Logic Controller (PLC)

References

[1] Sijie Mei, Yongshi Shao and Jun Liu: Submersible Electric pump Technology (Petroleum Industry Publications, China 2000) (In Chinese).

[2] Lei Zhang, Chunxia Gao: Study of a Novel Cell Cascaded High—Voltage Inverter for Electro-Dive Pumps. Mine Machinery. 2009, Vol. 38(7), pp.38-42(In Chinese).

[3] Zhenzhi Li, Zhouhuai Tang and Xingyun Gong etc: Application of Frequency-converter in Submersible Electric Pump Oil Well. Drilling and Production Technology. 2001, Vol. 4(3), pp.45-48(In Chinese).

[4] Junde Zheng, Zhonghong Zhang: New Development of Electrical Submersible Pump Production Technology in Abroad. Drilling and Production Technology. 2007, Vol. 30(1), pp.68-70(In Chinese).

[5] J.F. Lea: What's New in Artificial lift. World Oil. 2001, Vol. 222(4), pp.51-61.

[6] Zhaoyong Zhen, Xinfeng Wang: New Progress of Foreign ESP System Electrical Measurement and Control technology. Journal of Shengli Oilfield Teachers College. 2002, Vol. 16(4), pp.88-89(In Chinese).

[7] Xueshong Zhang, G. uishan Ren and Rui Lv etc: Research on Optimization Design Method of Frequency Conversion Control in ESP Well. China Petroleum and Chemical Industry. 2002, Vol. 16(4), pp.88-89(In Chinese).

[8] Qin Qian, Jing Xue and Yong Zheng etc: Optimization Design to Improve the Efficiency of ESP Production System. Journal of Oil and Gas Technology. 2006, Vol. 28(4), pp.134-135(In Chinese).

[9] Chunling Xu, Rui He: Application Prospect of Modern Control Technology in Offshore ESP's Production Management. China Offshore Oil and Gas (Engineering). 2003, Vol. 15(6), pp.39-40(In Chinese).

[10] Zhengqin. Sun, Zhidong Deng and Zaixing Zhang: Intelligent Control Theory and Technology (Tsinghua University Publications, China 2011) (In Chinese).
