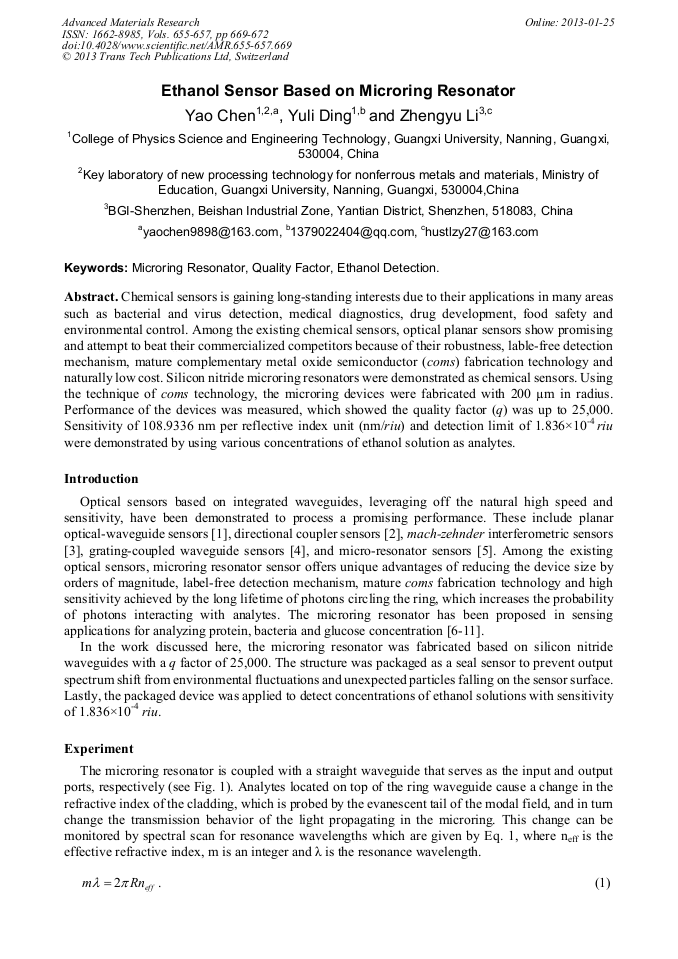

Ethanol Sensor Based on Microring Resonator

Abstract:

Chemical sensors is gaining long-standing interests due to their applications in many areas such as bacterial and virus detection, medical diagnostics, drug development, food safety and environmental control. Among the existing chemical sensors, optical planar sensors show promising and attempt to beat their commercialized competitors because of their robustness, lable-free detection mechanism, mature complementary metal oxide semiconductor (coms) fabrication technology and naturally low cost. Silicon nitride microring resonators were demonstrated as chemical sensors. Using the technique of coms technology, the microring devices were fabricated with 200 µm in radius. Performance of the devices was measured, which showed the quality factor (q) was up to 25,000. Sensitivity of 108.9336 nm per reflective index unit (nm/riu) and detection limit of 1.836×10-4 riu were demonstrated by using various concentrations of ethanol solution as analytes.

You might also be interested in these eBooks

Engineering Solutions for Manufacturing Processes

View Preview

Info:

Periodical:

Advanced Materials Research (Volumes 655-657)

Pages:

669-672

DOI:

https://doi.org/10.4028/www.scientific.net/AMR.655-657.669

Citation:

Cite this paper

Online since:

January 2013

Authors:

Yao Chen, Yu Li Ding, Zheng Yu Li

Keywords:

Ethanol Detection., Microring Resonator, Quality Factor

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] T. Okamoto, M. Yamamoto and I. Yamaguchi: J. Opt. Soc. Amer. A, Opt Image Sci., Vol. 17 (2000), no. 10, p.1880.

Google Scholar

[2] B.J. Luff, R.D. Harris, J.S. Wilkinson, R. Wilson and D.J. Schiffrin: Opt. Lett., Vol. 21 (1996), no. 8, p.618.

Google Scholar

[3] Z. Qi, N. Matsuda, K. Itoh, M. Murabayashi and C.R. Lavers: Sens. Actuators B, Chem., Vol. 81 (2002), no. 2, p.254.

Google Scholar

[4] R. Hornath, H.C. Pedersen, N. Skivesen, D. Selmeczi and N.B. Larsen: Opt. Lett., Vol. 28 (2003), no. 14, p.1233.

Google Scholar

[5] C.Y. Chao and L.J. Guo: Appl. Phys. Lett., Vol. 83 (2003), no. 8, p.1527.

Google Scholar

[6] Z. Xia, Y. Chen and Z. Zhou: IEEE Journal of Quantum Electronics, Vol. 44 (2008), no. 1, p.100.

Google Scholar

[7] H. Yi, D.S. Citrin, Y. Chen and Z. Zhou: Appl. Phys. Lett., Vol. 95 (2009), p.191112.

Google Scholar

[8] Y. Chen, Z. Li, H. Yi, Z. Zhou and J. Yu: Front. Optoelectron. China, Vol. 2 (2009), no. 3, p.304.

Google Scholar

[9] C.Y. Chao, W. Fung and L.J. Guo: IEEE J. Sel. Topics Quantum Electron., Vol. 12 (2006), p.134.

Google Scholar

[10] K.D. Vos, I. Bartolozzi, E. Schacht, P. Bienstman and R. Baets: Opt. Exp., Vol. 15 (2007), no. 12. p.7610.

DOI: 10.1364/oe.15.007610

Google Scholar

[11] R.L. Rich, D.G. Myszka: Journal of Molecular Recognition, Vol. 20 (2007), no. 5, p.300.

Google Scholar
