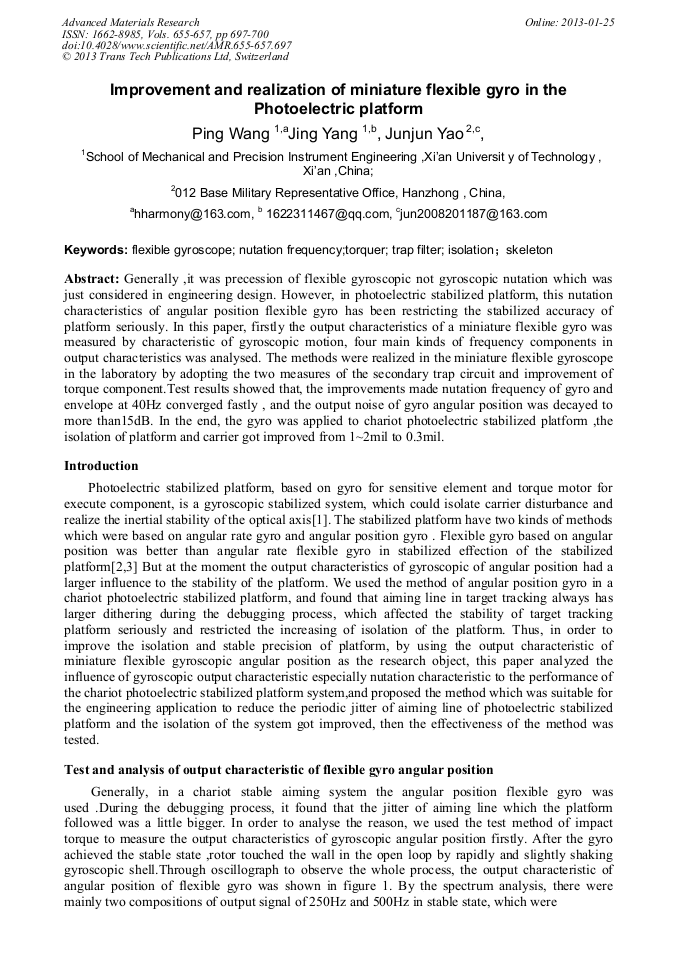

Improvement and Realization of Miniature Flexible Gyro in the Photoelectric Platform

Abstract:

Generally ,it was precession of flexible gyroscopic not gyroscopic nutation which was just considered in engineering design. However, in photoelectric stabilized platform, this nutation characteristics of angular position flexible gyro has been restricting the stabilized accuracy of platform seriously. In this paper, firstly the output characteristics of a miniature flexible gyro was measured by characteristic of gyroscopic motion, four main kinds of frequency components in output characteristics was analysed. The methods were realized in the miniature flexible gyroscope in the laboratory by adopting the two measures of the secondary trap circuit and improvement of torque component.Test results showed that, the improvements made nutation frequency of gyro and envelope at 40Hz converged fastly , and the output noise of gyro angular position was decayed to more than15dB. In the end, the gyro was applied to chariot photoelectric stabilized platform ,the isolation of platform and carrier got improved from 1~2mil to 0.3mil.

• Periodical: Advanced Materials Research (Volumes 655-657)
• Pages: 697-700
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.655-657.697
• Online since: January 2013
• Authors: Ping Wang, Jing Yang, Jun Jun Yao
• Keywords: Flexible Gyroscope, Isolation, Nutation Frequency, Skeleton, Torquer, Trap Filter

References

[1] Hong Hua-jie，Zhao Chuang-she，Lei Jin-li，Yun Ping-ping．method for improving servo control rigidity of the photoelectric stabilized platform [J]．Opto-Electronic Engineering，2009，36（8）: 5～9.

[2] Wang Zheng-lin．Efectiveness comparison between close loop mode and open loop mode for flexible gyroscope of electro-optical system [J]．Infrared，2012，3：35～38.

[3] Shen Hong-hai, Liu Jing-hong, Zhang Bao, Dai Ming, Jia Ping, Wei Zhong-he, Xiong Jing, wu. Stabilization properties of airborne imaging platform based on position gyro and rate gyro [J]. Optics and Precision Engineering，2007，15（8）：1293～1299.

[4] Yao Jun-jun, Ren Jian-xin, Gao Ying-jun, Liu Jun-wei．Design and development of analog rebalance loop for flexible gyroscope [J] . Messurement & Control Technology，2011, 30(4); 1-4 Reference to a book.

[5] Zhou Bai-ling Dynamically tuned gyro and manufacturing[M] Southeast university press 2002. 5: pp.214-218.
