Synthesis and Performance of Nanocrystalline 5083 Aluminum Alloy Powders by Cryomilling

Xiu Hua Ma; Wei Min Wang; Hao Wang; Yu Cheng Wang; Zheng Yi Fu

doi:10.4028/www.scientific.net/AMR.66.187

Paper Titles

Controlled Synthesize of BaTiO₃ Nanoparticles and BaCO₃ Nanowires through the Reverse Micelle System
p.171

Effect of Processing Parameters on the Microstructure of Silicon Nitride Coatings by Chemical Vapor Deposition
p.175

Graphitic N-Free/N-Doped Nanostructured Carbon Molecular Sieves via CVD Method and their Hydrogen Storage
p.179

Laser Energy Dependent Structure of Pulsed Laser Deposited Barium Dititanate Films
p.183

Synthesis and Performance of Nanocrystalline 5083 Aluminum Alloy Powders by Cryomilling
p.187

Preparation of the Boron Nitride Fibers by Chemical Reaction
p.191

(TiB₂)pNi/Ni₃Al/Metals Graded Materials Prepared by the Field-Activated and Pressure-Assisted Combustion Process
p.194

Impact of Carbon Nanotube Aspect Ratio and Dispersion on Epoxy Nanocomposite Performance
p.198

Preparation and Characterization of Pt/YSZ Composite Electrode
p.202

HomeAdvanced Materials ResearchAdvanced Materials Research Vol. 66Synthesis and Performance of Nanocrystalline 5083...

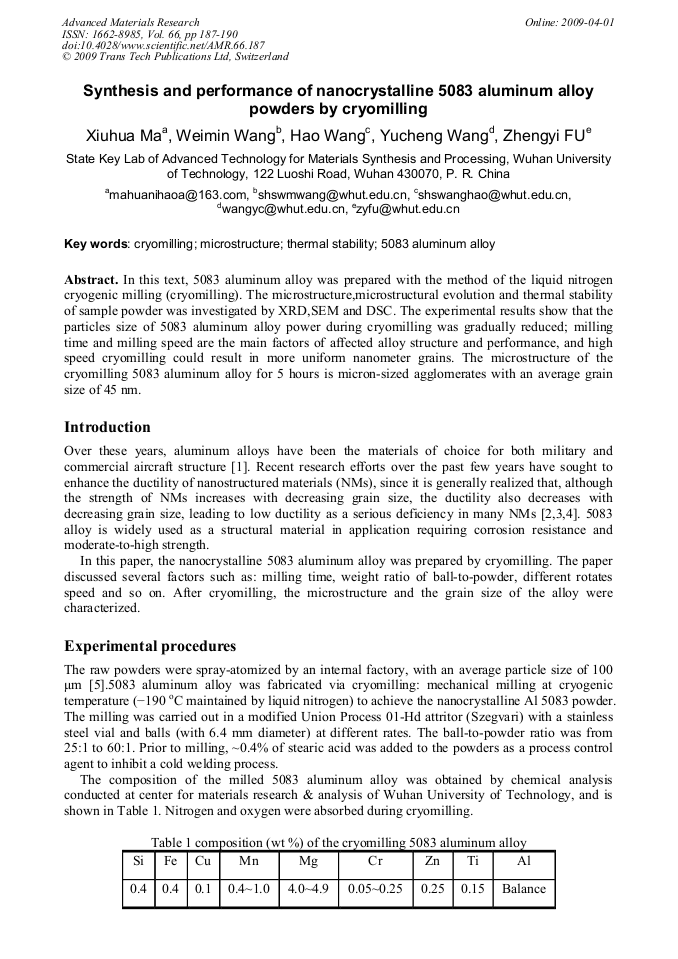

Synthesis and Performance of Nanocrystalline 5083 Aluminum Alloy Powders by Cryomilling

Abstract:

In this text, 5083 aluminum alloy was prepared with the method of the liquid nitrogen cryogenic milling (cryomilling). The microstructure,microstructural evolution and thermal stability of sample powder was investigated by XRD,SEM and DSC. The experimental results show that the particles size of 5083 aluminum alloy power during cryomilling was gradually reduced; milling time and milling speed are the main factors of affected alloy structure and performance, and high speed cryomilling could result in more uniform nanometer grains. The microstructure of the cryomilling 5083 aluminum alloy for 5 hours is micron-sized agglomerates with an average grain size of 45 nm.
