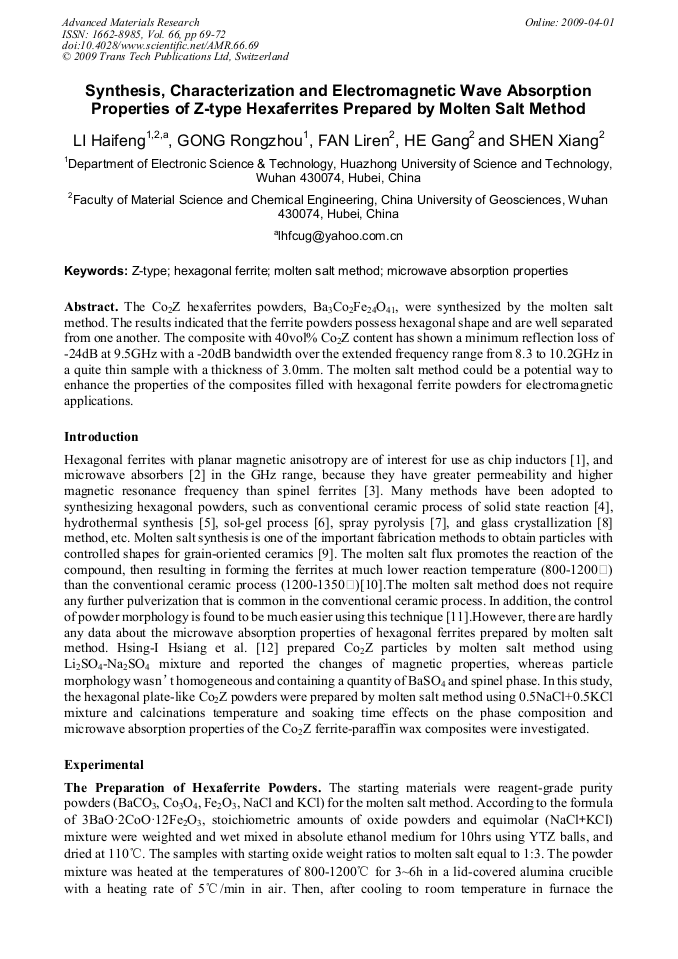

Synthesis, Characterization and Electromagnetic Wave Absorption Properties of Z-Type Hexaferrites Prepared by Molten Salt Method

Hai Feng Li; Rong Zhou Gong; Li Ren Fan; Gang He; Xiang Shen

doi:10.4028/www.scientific.net/AMR.66.69

Paper Titles

Structure and Property of Ti-Al-C/TiB₂ Composite Ceramics
p.53

Synthesis, Characterization and Catalytic Properties of La₄BaCu_5-xNixO_13+δ (x=0, 1, 2, 3, 4, 5)
p.57

Oxidation of ZrB₂/ZrO₂ and ZrB₂/ZrO₂/SiC Ceramics
p.61

Molten Salt Synthesis and Photoluminescence of YVO₄:Eu Microcrystalline Phosphors
p.65

Synthesis, Characterization and Electromagnetic Wave Absorption Properties of Z-Type Hexaferrites Prepared by Molten Salt Method
p.69

Carbothermal Reduction and Nitridation Synthesis of γ-AlON Powder under High Heating Rate
p.73

Synthesis of Ultra-Fine ZrB₂ Powder by Borothermal Reaction under High Heating Rate
p.77

Microstructure and Properties of Mulite-FeCr Multifunctional Composite
p.81

Effect of Sintering Temperature on the Properties of Porous Silicon Nitride Ceramics
p.85

HomeAdvanced Materials ResearchAdvanced Materials Research Vol. 66Synthesis, Characterization and Electromagnetic...

Synthesis, Characterization and Electromagnetic Wave Absorption Properties of Z-Type Hexaferrites Prepared by Molten Salt Method

Abstract:

The Co2Z hexaferrites powders, Ba3Co2Fe24O41, were synthesized by the molten salt method. The results indicated that the ferrite powders possess hexagonal shape and are well separated from one another. The composite with 40vol% Co2Z content has shown a minimum reflection loss of -24dB at 9.5GHz with a -20dB bandwidth over the extended frequency range from 8.3 to 10.2GHz in a quite thin sample with a thickness of 3.0mm. The molten salt method could be a potential way to enhance the properties of the composites filled with hexagonal ferrite powders for electromagnetic applications.
