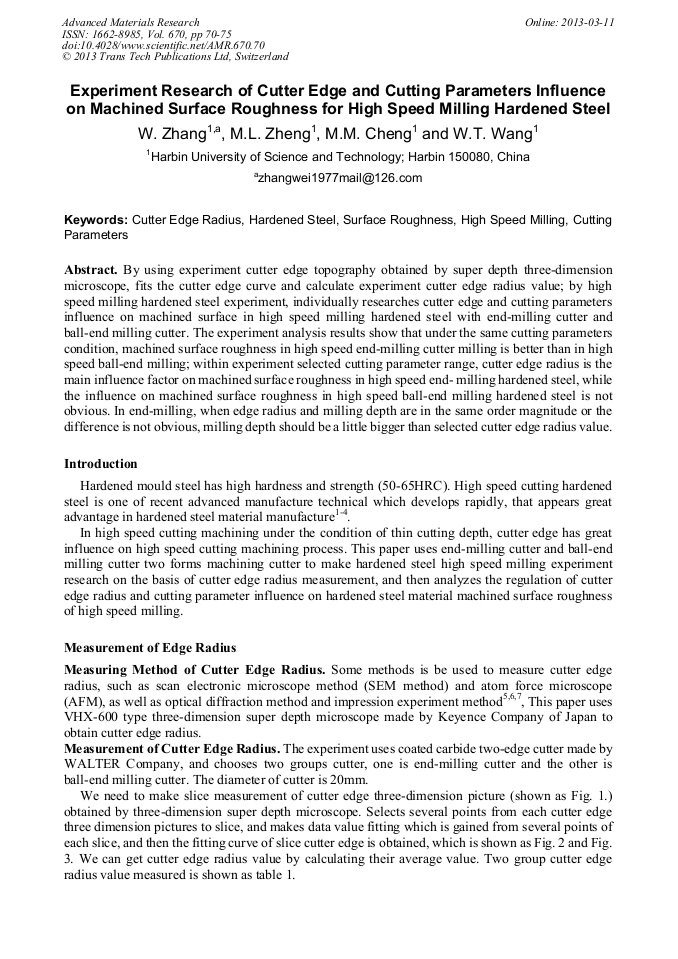

Experiment Research of Cutter Edge and Cutting Parameters Influence on Machined Surface Roughness for High Speed Milling Hardened Steel

Abstract:

By using experiment cutter edge topography obtained by super depth three-dimension microscope, fits the cutter edge curve and calculate experiment cutter edge radius value; by high speed milling hardened steel experiment, individually researches cutter edge and cutting parameters influence on machined surface in high speed milling hardened steel with end-milling cutter and ball-end milling cutter. The experiment analysis results show that under the same cutting parameters condition, machined surface roughness in high speed end-milling cutter milling is better than in high speed ball-end milling; within experiment selected cutting parameter range, cutter edge radius is the main influence factor on machined surface roughness in high speed end- milling hardened steel, while the influence on machined surface roughness in high speed ball-end milling hardened steel is not obvious. In end-milling, when edge radius and milling depth are in the same order magnitude or the difference is not obvious, milling depth should be a little bigger than selected cutter edge radius value.

• Periodical: Advanced Materials Research (Volume 670)
• Pages: 70-75
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.670.70
• Online since: March 2013
• Authors: Wei Zhang, M.L. Zheng, M.M. Cheng, W.T. Wang
• Keywords: Cutter Edge Radius, Cutting Parameter, Hardened Steel, High Speed Milling, Surface Roughness (SR)

References

[1] X.X. YIN and F.J. Wu, J. Modern Manufacturing Engineering, 7 (2009) 144.

[2] X.C. Liang and X.G. Zheng, J. Chinese Journal of Mechanical Engineer, 37(2001) 109.

[3] Dominguez H. and R. Alvarez, Proceedings of the 2001 IEEE International Conference on Control Applications, 27(2002) 144.

[4] M.H. Deng and N. Ying, J. Tool Engineering, 38 (2004) 25.

[5] C.K. Toh, J. Journal of Sound and Vibration, 58 (2003) 321.

[6] C.K. Toh, J. Material and Design, 27 (2004) 107.

[7] C.K. Toh, J. Material and Design, 30 (2004) 41.

[8] L.Y. WANG and H.H. HUANG, Journal of Central South University (Science and Technology), 40 (2009) 1604.

[9] Z.Q. Liu and Y. Wan, J. Machinery Manufacturing Engineer, 12 (2002) 10.
