Analysis and Test for the Space Different Thickness Film Structure in Still Air

Abstract:

The air added mss have important influence on film modal. Based on the commercial finite element (FE) package ABAQUS, a numerical procedure for membrane mode analysis was set up and used to analyze a square film modal. The membrane pre-stress can be introduced through temperature load . The equilibrium shape of the space film was obtained through a geometrical nonlinear step .The dry and wet mode of the film structure was calculated and analyzed by means of the Lanczos method. The added mass above each vibration region is equal to the uniformly distributed air with height of 0.65l. The rectangular plane film test revealed the validity of the finite element simulation on the membrane structure base frequency. The film structure with edge cable is a rational structure form. The proposed analysis method and conclusion on the film structure modal analysis has the reference value.

You might also be interested in these eBooks

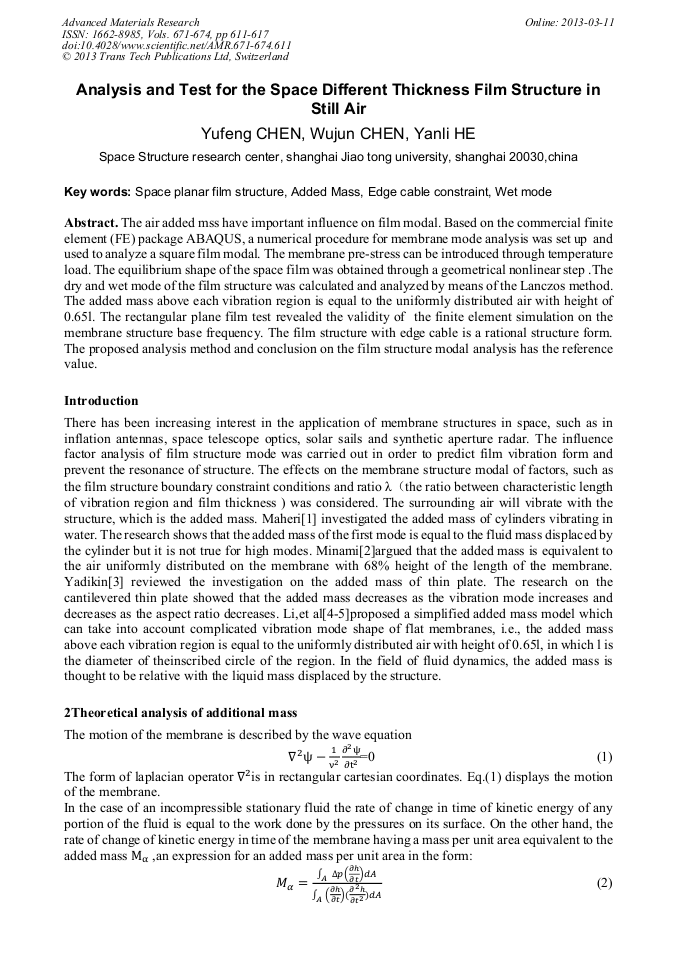

View Preview

Info:

Periodical:

Advanced Materials Research (Volumes 671-674)

Pages:

611-617

DOI:

https://doi.org/10.4028/www.scientific.net/AMR.671-674.611

Citation:

Cite this paper

Online since:

March 2013

Authors:

Yu Feng Chen, Wu Jun Chen, Yan Li He

Keywords:

Added Mass, Edge Cable Constraint, Space Planar Film Structure, Wet Mode

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] M.R. Maheri and R.T. Severn. Experimental added-mass in modal vibration of cylindrical structures, Engineering Structures, Vol. 14(1992), pp.163-175.

DOI: 10.1016/0141-0296(92)90027-n

Google Scholar

[2] H. Minami. Added mass of a membrane vibrating at finite amplitude, Journal of Fluids and Structures, Vol. 12(1998), pp.919-932.

DOI: 10.1006/jfls.1998.0175

Google Scholar

[3] Yadykin Y, Tenetov V, Levin D. The added mass of a flexible plate oscillating in a fluid[J]. Journal of Fluids and Structures, 2003, 17: 115-123.

DOI: 10.1016/s0889-9746(02)00100-7

Google Scholar

[4] Yi Zhou, Yu anqi Li , Zuyan Shen. Numerical Investigation on Added Mass of Circle Membrane Vibrating in Still Air[J]. Advanced Materials Research, 2012, 1770-1773.

DOI: 10.4028/www.scientific.net/amr.374-377.1770

Google Scholar

[5] Y.Q. Li, L. Wang, Z.Y. Shen, Y. Tamura. Added mass estimation of flat membranes vibrating in still air, Journal of Wind Engineering and Industrial Aerodynamics, Vol. 99(2011), pp.815-824.

DOI: 10.1016/j.jweia.2011.05.006

Google Scholar
