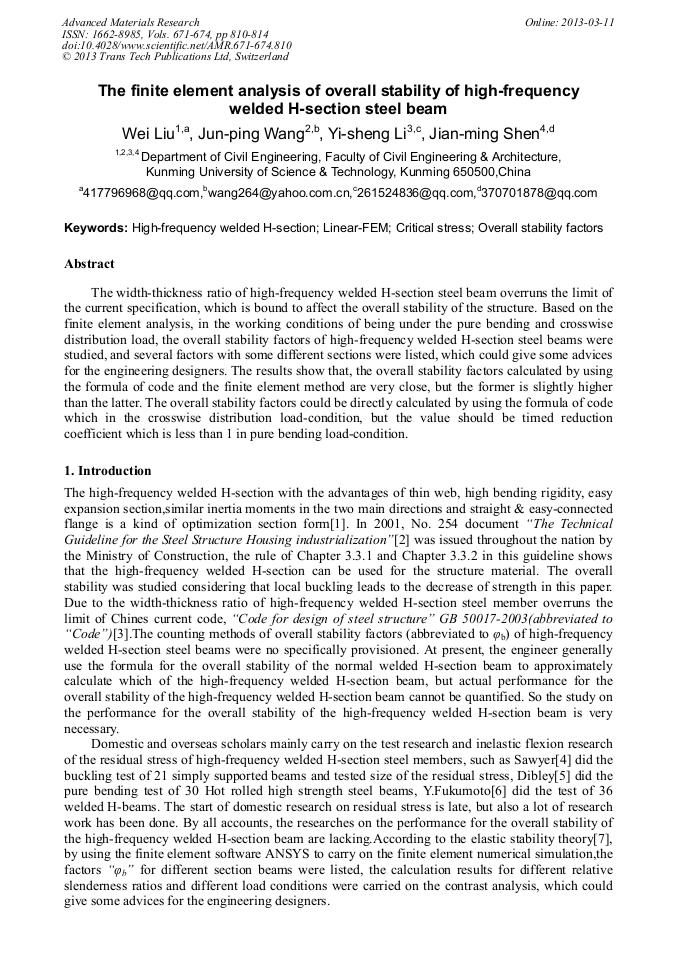

The Finite Element Analysis of Overall Stability of High-Frequency Welded H-Section Steel Beam

Abstract:

The width-thickness ratio of high-frequency welded H-section steel beam overruns the limit of the current specification, which is bound to affect the overall stability of the structure. Based on the finite element analysis, in the working conditions of being under the pure bending and crosswise distribution load, the overall stability factors of high-frequency welded H-section steel beams were studied, and several factors with some different sections were listed, which could give some advices for the engineering designers. The results show that, the overall stability factors calculated by using the formula of code and the finite element method are very close, but the former is slightly higher than the latter. The overall stability factors could be directly calculated by using the formula of code which in the crosswise distribution load-condition, but the value should be timed reduction coefficient which is less than 1 in pure bending load-condition.

• Periodical: Advanced Materials Research (Volumes 671-674)
• Pages: 810-814
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.671-674.810
• Online since: March 2013
• Authors: Wei Liu, Jun Ping Wang, Yi Sheng Li, Jian Ming Shen
• Keywords: Critical Stress, High-Frequency Welded H-Section, Linear-FEM, Overall Stability Factors

References

[1] Feng Dong, Wang Yi-jun, WANG Guo-ping: Design of Automatic Production Line for HF Welding Light Gauge H-beam, Building Structures, 2001. 02.

[2] The Technical Guideline for the Steel Structure Housing industrialization, China, (2001).

[3] Code for design of steel structure, GB 50017-2003, Beijing: Chinese Plan Publishing House, (2003).

[4] H.A. Sawyer, Post-Elastic Behavior of Wide-Flange Steel Beams, ASCE.S. D, (1961).

[5] J.E. Dibley, Lateral Torsional Buckling of- Sections in Grade 55 Steel, Proc I.C. E, (1969).

[6] Y. Fukumoto, Yltoh and M. Kubo, Strength Variation of Laterally Unsupported Beams, (1980).

[7] Lv Lie-wu, Shen Shi-zhao, Shen Zu-yan etc: Stability Theory for Steel Structure Member. Beijing: China architecture &building press, (1983).

[8] The high-frequency welded light gauge H-sections for construction JG/T 137-2001. Beijing: China architecture &building press, (2001).

[9] ANSYS, Inc: ANSYS HELP, SAS IPINC, (2000).

[10] Wang Xin-min: Engineering structure numerical analysis with ANSYS. Beijing: China communications press, (2007).
