Electroluminescent Quantum Dot Light-Emitting Diodes with ZnO and MoO3 Carrier Transport Layers

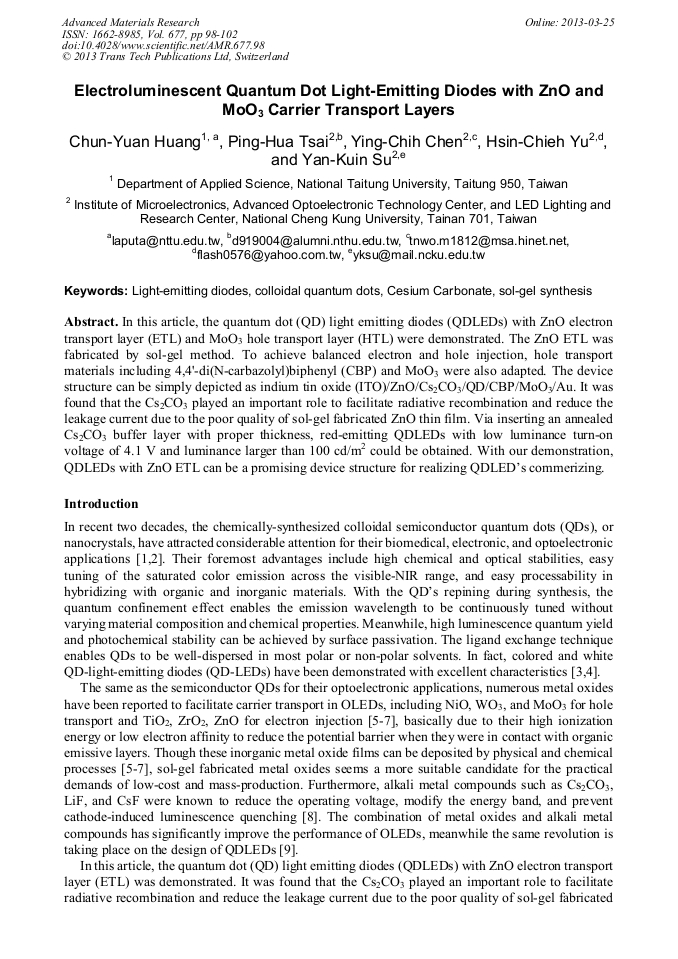

Article Preview

Abstract:

In this article, the quantum dot (QD) light emitting diodes (QDLEDs) with ZnO electron transport layer (ETL) and MoO3 hole transport layer (HTL) were demonstrated. The ZnO ETL was fabricated by sol-gel method. To achieve balanced electron and hole injection, hole transport materials including 4,4'-di(N-carbazolyl)biphenyl (CBP) and MoO3 were also adapted. The device structure can be simply depicted as indium tin oxide (ITO)/ZnO/Cs2CO3/QD/CBP/MoO3/Au. It was found that the Cs2CO3 played an important role to facilitate radiative recombination and reduce the leakage current due to the poor quality of sol-gel fabricated ZnO thin film. Via inserting an annealed Cs2CO3 buffer layer with proper thickness, red-emitting QDLEDs with low luminance turn-on voltage of 4.1 V and luminance larger than 100 cd/m2 could be obtained. With our demonstration, QDLEDs with ZnO ETL can be a promising device structure for realizing QDLED’s commerizing.

You might also be interested in these eBooks

Info:

Periodical:

Pages:

98-102

Citation:

Online since:

March 2013

Export:

Price:

Permissions CCC:

Permissions PLS:

Сopyright:

© 2013 Trans Tech Publications Ltd. All Rights Reserved

Share:

Citation:

[1] S. Nizamoglu, G. Zengin, and H.V. Demir: Appl. Phys. Lett. Vol. 92 (2008), p.031102.

Google Scholar

[2] C.Y. Huang, Y.K. Su, T.C. Wen, T.F. Guo, and M.L. Tu: IEEE Photon. Technol. Lett. Vol. 20 (2008), p.282.

Google Scholar

[3] C.Y. Huang, Y.K. Su, R.W. Chuang, Y.C. Chen, T.S. Huang, and C.T. Wan: J. ElectroChem. Soc. Vol. 156 (2009), p. H625.

Google Scholar

[4] Z. Tan, B. Hedrick, F. Zhang, and A.Y. Wang: IEEE Photon. Technol. Lett. Vol. 20 (2008), p. (1998).

Google Scholar

[5] D. Kabra , L.P. Lu , M.H. Song , H.J. Snaith, and R.H. Friend: Adv. Mater. Vol. 22 (2010), p.3194.

Google Scholar

[6] Y. Wang, Q. Niu, C. Hu, W. Wang, M. He, Y. Zhang, S. Li, L. Zhao, X. Wang, J. Xu, Q. Zhu, and S. Chen: Opt. Lett. Vol. 36 (2011), p.1521.

Google Scholar

[7] N. Tokmoldin, N. Griffiths, D.D.C. Bradley, and S.A. Haque: Adv. Mater. Vol. 21 (2009), p.3475.

Google Scholar

[8] C.Y. Huang, Y.K. Su, T.S. Huang, M.V.M. Rao, T.F. Guo, T.C. Wen: IEEE Photonics Global@Singapore (2008), p.1.

Google Scholar

[9] C.Y. Huang, T.S. Huang, Y.C. Chen, C.Y. Cheng, C.T. Wan, M.V.M. Rao, Y.K. Su, IEEE Photon. Tech. Lett. Vol. 22 (2010), p.305.

Google Scholar

[10] J. Huang, X. Qiao, Y. Xia, X. Zhu, D. Ma, Y. Cao, and J. Roncali, Adv. Mater. Vol. 20 (2008), p.4172.

Google Scholar

[11] J. Shinar and R. Shinar: J. Phys. D Vol. 41 (2008), p.133001.

Google Scholar

[12] W. Hu, R. Henderson, Y. Zhang, G. You, L. Wei, Y. Bai, J. Wang and J. Xu: Nanotechnol. Vol. 23 (2012), p.375202.

Google Scholar

[13] J. Kwak, W. Bae, D. Lee, I. Park, J. Lim, and M. Park, Nano Lett. Vol. 12 (2012), p.2362.

Google Scholar

[14] V. Musat, A.M. Rego, R. Monteiro, and E. Fortunato, Thin Solid Films Vol. 516 (2008), p.1512.

DOI: 10.1016/j.tsf.2007.07.198

Google Scholar

[15] H. Bourvon, S. Calvez, H. Kanaan, C. Philippot, and P. Reiss, Adv. Mater. Vol. 24 (2012), p.4414.

DOI: 10.1002/adma.201200981

Google Scholar
