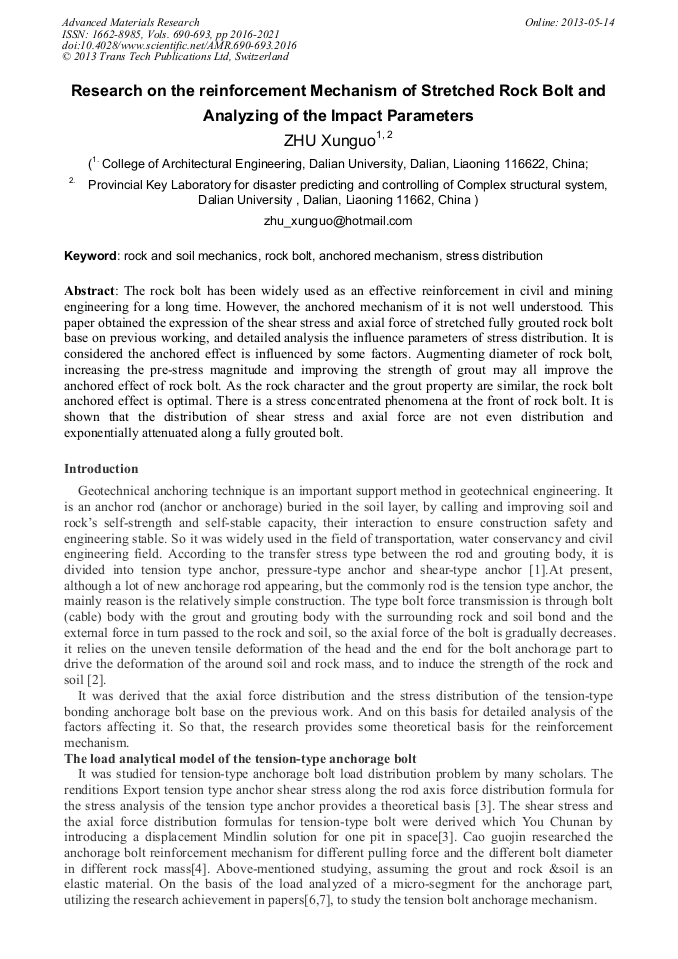

Research on the Reinforcement Mechanism of Stretched Rock Bolt and Analyzing of the Impact Parameters

Abstract:

The rock bolt has been widely used as an effective reinforcement in civil and mining engineering for a long time. However, the anchored mechanism of it is not well understood. This paper obtained the expression of the shear stress and axial force of stretched fully grouted rock bolt base on previous working, and detailed analysis the influence parameters of stress distribution. It is considered the anchored effect is influenced by some factors. Augmenting diameter of rock bolt, increasing the pre-stress magnitude and improving the strength of grout may all improve the anchored effect of rock bolt. As the rock character and the grout property are similar, the rock bolt anchored effect is optimal. There is a stress concentrated phenomena at the front of rock bolt. It is shown that the distribution of shear stress and axial force are not even distribution and exponentially attenuated along a fully grouted bolt.

• Periodical: Advanced Materials Research (Volumes 690-693)
• Pages: 2016-2021
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.690-693.2016
• Online since: May 2013
• Authors: Xun Guo Zhu*
• Keywords: Anchored Mechanism, Rock and Soil Mechanics, Rock Bolt, Stress Distribution

References

[1] Lu Shiliang Tang Lei, Yang Xinan of Anchor force anchoring technology [M] Beijing: Coal Industry Press, (1998)

[2] Peng Zhenbin anchor engineering design calculations and construction [M], Wuhan: China University of Geosciences Press, 1997.

[3] You Chunan. The fully bonded bolt stress analysis [J]. Rock Mechanics and Engineering, 2000, 19 (3): 339~341

[4] Cao gUOJINe, Jiang Hongdao, Xiong Hongmei A to determine the length of the tension-type bolting method [J] Rock Mechanics and Engineering, 2003,22 (7): 1141~1145

[5] C.Li, B.Stillborg. An analytical model for rock bolts [J]. International Journal of Rock Mechanics and Mining Sciences, 1999, 36:1013 ~ 1029

DOI: 10.1016/s1365-1609(99)00064-7

[6] Farmer IW Stress distribution along a resin grouted rock anchor [J]. International Journal of Rock Mechanics and Mining Science and Geomechanics Abstract, 1975, 12:347~351

DOI: 10.1016/0148-9062(75)90168-0

[7] Holmberg M. The mechanical behavior of intentioned grouted rock bolts. [D] ISRN KTH/JOB/R-91-SE, Royal Institute of Technology, Stockholm, Sweden, (1991)

[8] Liang Hyung-kwan, editor of the anchoring and grouting technical manual [M], Beijing: China Electric Power Press, (1999)
