Influence of Fluctuation Frequency on Stress Corrosion Cracking of X70 Pipeline Steel Welding Joint

Qi Lei Sun; Wei Wei Shao; Xing Gang Wang; Cheng Bei Wang

doi:10.4028/www.scientific.net/AMR.690-693.2668

Paper Titles

The Temperature and Residual Stress Distributions of Butt Weld Pass on Nickel Alloy 690 Plate
p.2651

The Welding Track Planning and Motion Control of T-Type Tube Autowelding Machine
p.2655

Three-Dimensional Numerical Simulation of Temperature Field and Force Field of T-Type Turbe during Welding
p.2659

Vacuum Brazing of Copper Tubes Using Ag-Cu Filler
p.2664

Influence of Fluctuation Frequency on Stress Corrosion Cracking of X70 Pipeline Steel Welding Joint
p.2668

The Characteristics of Weld Metal Zone Welded with Various Filler Metals
p.2673

A Method Based on the Morphology of Lead-Free Solder Powder Adhesive Particle Segmentation
p.2681

Research for Viscoplastic Behaviors of SAC405 Pb-Free Solder
p.2686

A New Method for Minimizing Cogging Torque in Permanent Magnet Machines Using Genetic Algorithm
p.2693

HomeAdvanced Materials ResearchAdvanced Materials Research Vols. 690-693Influence of Fluctuation Frequency on Stress...

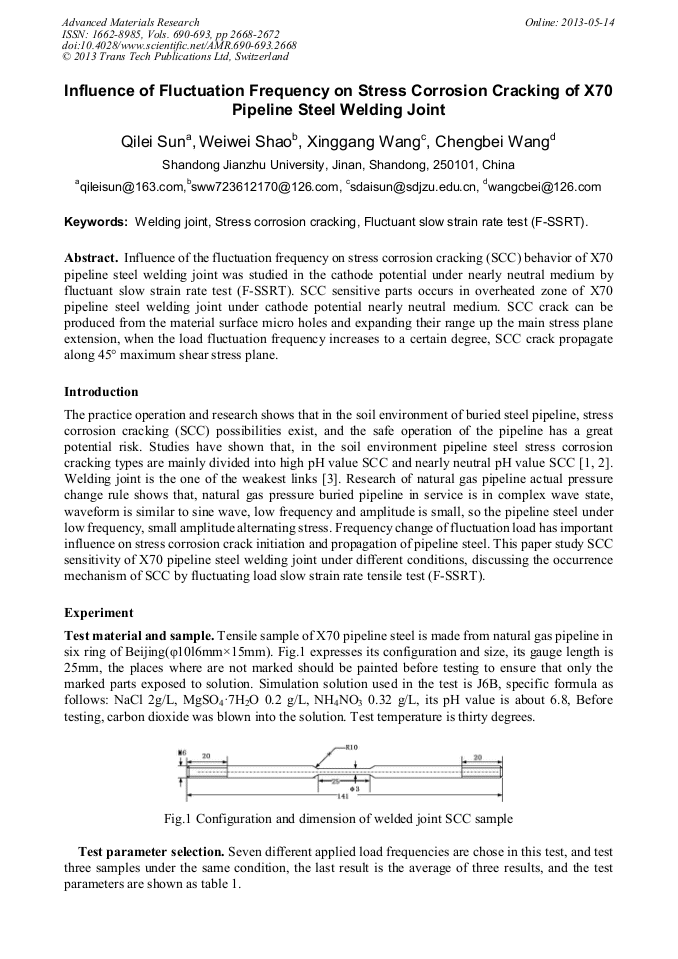

Influence of Fluctuation Frequency on Stress Corrosion Cracking of X70 Pipeline Steel Welding Joint

Abstract:

Influence of the fluctuation frequency on stress corrosion cracking (SCC) behavior of X70 pipeline steel welding joint was studied in the cathode potential under nearly neutral medium by fluctuant slow strain rate test (F-SSRT). SCC sensitive parts occurs in overheated zone of X70 pipeline steel welding joint under cathode potential nearly neutral medium. SCC crack can be produced from the material surface micro holes and expanding their range up the main stress plane extension, when the load fluctuation frequency increases to a certain degree, SCC crack propagate along 45° maximum shear stress plane.
