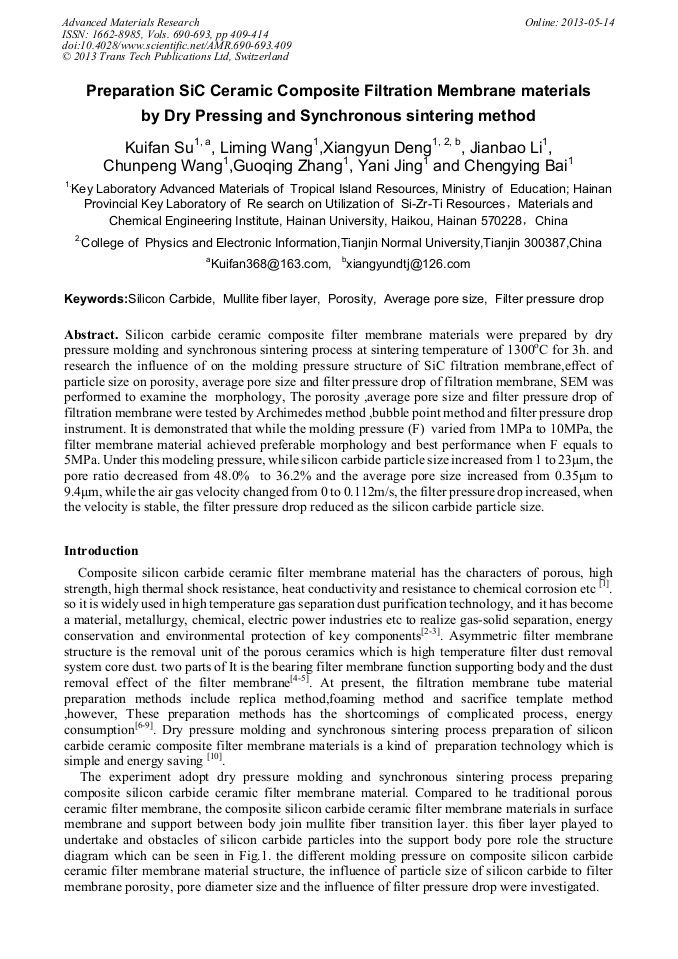

Preparation SiC Ceramic Composite Filtration Membrane Materials by Dry Pressing and Synchronous Sintering Method

Abstract:

Silicon carbide ceramic composite filter membrane materials were prepared by dry pressure molding and synchronous sintering process at sintering temperature of 1300oC for 3h. and research the influence of on the molding pressure structure of SiC filtration membrane,effect of particle size on porosity, average pore size and filter pressure drop of filtration membrane, SEM was performed to examine the morphology, The porosity ,average pore size and filter pressure drop of filtration membrane were tested by Archimedes method ,bubble point method and filter pressure drop instrument. It is demonstrated that while the molding pressure (F) varied from 1MPa to 10MPa, the filter membrane material achieved preferable morphology and best performance when F equals to 5MPa. Under this modeling pressure, while silicon carbide particle size increased from 1 to 23μm, the pore ratio decreased from 48.0% to 36.2% and the average pore size increased from 0.35μm to 9.4μm, while the air gas velocity changed from 0 to 0.112m/s, the filter pressure drop increased, when the velocity is stable, the filter pressure drop reduced as the silicon carbide particle size.

• Periodical: Advanced Materials Research (Volumes 690-693)
• Pages: 409-414
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.690-693.409
• Online since: May 2013
• Authors: Kui Fan Su, Li Ming Wang, Xiang Yun Deng, Jian Bao Li, Chun Peng Wang, Guo Qing Zhang, Ya Ni Jing, Cheng Ying Bai
• Keywords: Average Pore Size, Filter Pressure Drop, Mullite Fiber Layer, Porosity, Silicon Carbide (SiC)

References

[1] N. Agoudjila;S. Kermadia and A. Larbotb ,et al. Synthesis of inorganic membrane by sol-gel process, J. Desalination, 2008 , 223(3):417~424.

[2] Charpin, A. J. Burggraaf, and L. Cot, et al. A Survey of Ceramic Membranes for Separations in Liquid and Gaseous Media, J. Ind. Ceram, 1991,11(2)84~89.

[3] Roewer G, Herzog, U, Trommer, K, Mueller, et al. Silicon carbide-a survey of synthetic approaches properties and applications, J. Struct. Bonding, 2002, 101(4):59–135.

DOI: 10.1007/3-540-45613-9_2

[4] Hunt M L, Tien C L. Effects of thermal dispersion on forced-convection in fibrous media, J. Int J Heat Mass Tran, 1988, 31(6):301-309.

DOI: 10.1016/0017-9310(88)90013-0

[5] Katsuki H, Furuta S, Komarneni S. Formation of novel ZSM-5/porous mullite composite from sintered kaolin honeycomb by hydrothermal reaction, J. Am Ceram Soc, 2000, 83(2):1093-1097.

DOI: 10.1111/j.1151-2916.2000.tb01336.x

[6] Kim Y W, Chun Y S, Nishimura T, et al. High-temperature strength of silicon carbide ceramics sintered with rare-earth oxide and aluminum nitride, J. Acta Mater, 2007, 55(4):727-736.

DOI: 10.1016/j.actamat.2006.08.059

[7] Guo X Z, Yang H, Zhang L J, et al. Sintering behavior, microstructure and mechanical properties of silicon carbide ceramics containing different nano-TiN additive, J. Ceram Int, 2010, 36(2):161-165.

DOI: 10.1016/j.ceramint.2009.07.013

[8] Sigl L S, Kleebe H J. Core rim structure of liquid-phase-sintered silicon-carbide, J. Am Ceram Soc, 1993, 76:773-776.

DOI: 10.1111/j.1151-2916.1993.tb03677.x

[9] Maddocks A R, Harris A T. Biotemplated synthesis of novel porous SiC, J. Mater Lett, 2009, 63(4):748-750.

DOI: 10.1016/j.matlet.2008.12.039

[10] Xiangyun Deng, Kuifan Su,Jianbao Li1, Chunpeng Wang, et al. Composite silicon carbide ceramic filter membrane material preparation method, P. SIPO,CN102718494A . 2012-06-21.
