Flow Behavior and Microstructural Evolution of an As-Wrought Duplex Stainless Steel during Hot Compression Deformation

Lei Chen; Xiao Cong Ma; Ming Jia Wang; Hua Gui Huang

doi:10.4028/www.scientific.net/AMR.699.808

Paper Titles

The Modification of Polypropylene Hollow Fiber Membrane by Grafting with N,N’-Methylene-Bisac-Rylamide on the Surface
p.783

Structural Evolution and Optical Properties of TiO₂ Thin Films Prepared by DC-Reactive Sputtering Technique
p.789

Effect of Heat Treatment on Mechanical/Metallurgical Properties of Direct Metal Laser Sintered 17-4 Precipitate Hardened Stainless Steel
p.795

Numerical Simulation Research on Triple Splitting Rolling Process
p.802

Flow Behavior and Microstructural Evolution of an As-Wrought Duplex Stainless Steel during Hot Compression Deformation
p.808

Tensile Properties of Processed 3D Printer ZP150 Powder Material
p.813

Improvement of Thermal Stability of Nickel Silicide Using Co-Sputtering of Ni and Ti on Boron Cluster Implanted Ultra-Shallow Junction for Nanoscale CMOS Technology
p.817

Computational Fluid Dynamics Modeling of Palm Fruit Pyrolysis in a Fast Fluidized Bed Reactor
p.822

Production of Lightweight Ceramsite from the Yellow River Silt and its Performance Investigation in a Biological Aerated Filer (BAF) Reactor
p.829

HomeAdvanced Materials ResearchAdvanced Materials Research Vol. 699Flow Behavior and Microstructural Evolution of an...

Flow Behavior and Microstructural Evolution of an As-Wrought Duplex Stainless Steel during Hot Compression Deformation

Abstract:

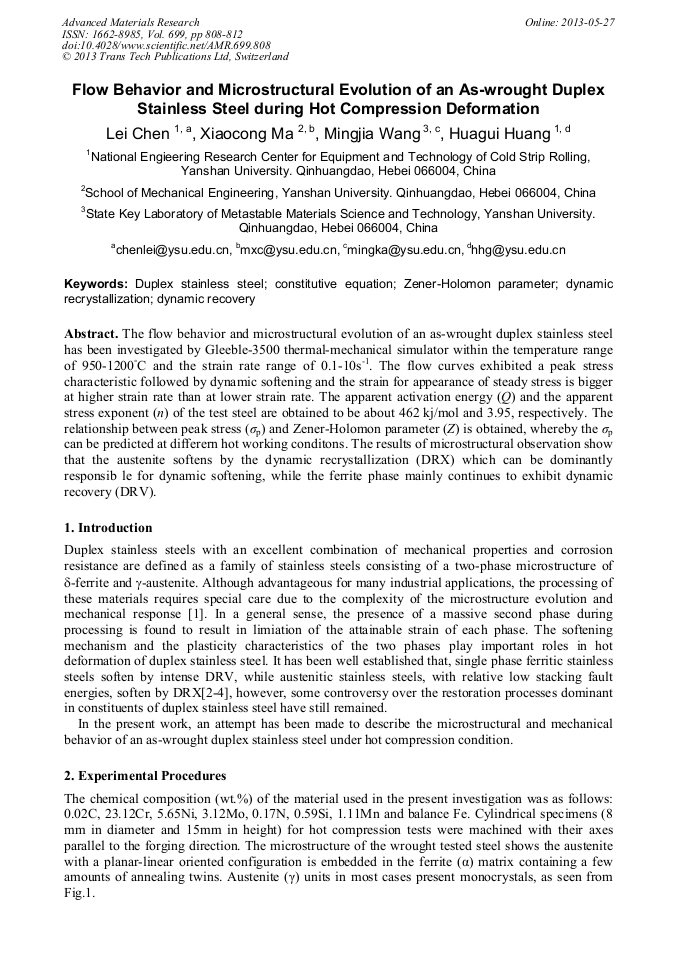

The flow behavior and microstructural evolution of an as-wrought duplex stainless steel has been investigated by Gleeble-3500 thermal-mechanical simulator within the temperature range of 950-1200°C and the strain rate range of 0.1-10s-1. The flow curves exhibited a peak stress characteristic followed by dynamic softening and the strain for appearance of steady stress is bigger at higher strain rate than at lower strain rate. The apparent activation energy (Q) and the apparent stress exponent (n) of the test steel are obtained to be about 462 kj/mol and 3.95, respectively. The relationship between peak stress (σp) and Zener-Holomon parameter (Z) is obtained, whereby the σp can be predicted at differern hot working conditons. The results of microstructural observation show that the austenite softens by the dynamic recrystallization (DRX) which can be dominantly responsib le for dynamic softening, while the ferrite phase mainly continues to exhibit dynamic recovery (DRV).
