Determination of Attack Angle and Tilt Angle of a Cutting Pick

Abstract:

Mechanical excavators play an important role in mining and construction. An excavation machine cuts rocks using its cutterhead which is normally composed of a large number of cutting picks. These picks are installed on a drum with certain attack angles, tilt angles and skew angles. These angles, especially attack and tilt angles, will affect the forces acting on individual picks and the cutterhead. To ensure the reliability and productivity of the excavation machine, these angles have to be kept in their optimal values. However, in manufacturing, these three types of angles cannot be set simultaneously. They have to be respectively set one after another. As a result, the angle which is set previously will be changed by the angles which are determined after it. Understanding the relationship between the values of the final angle and the designed angle is important for optimizing drum and pick design. This paper develops a formula for quantitatively analyzing this relationship, with the research scope limited to attack angle and tilt angle only as the first stage of the study.

You might also be interested in these eBooks

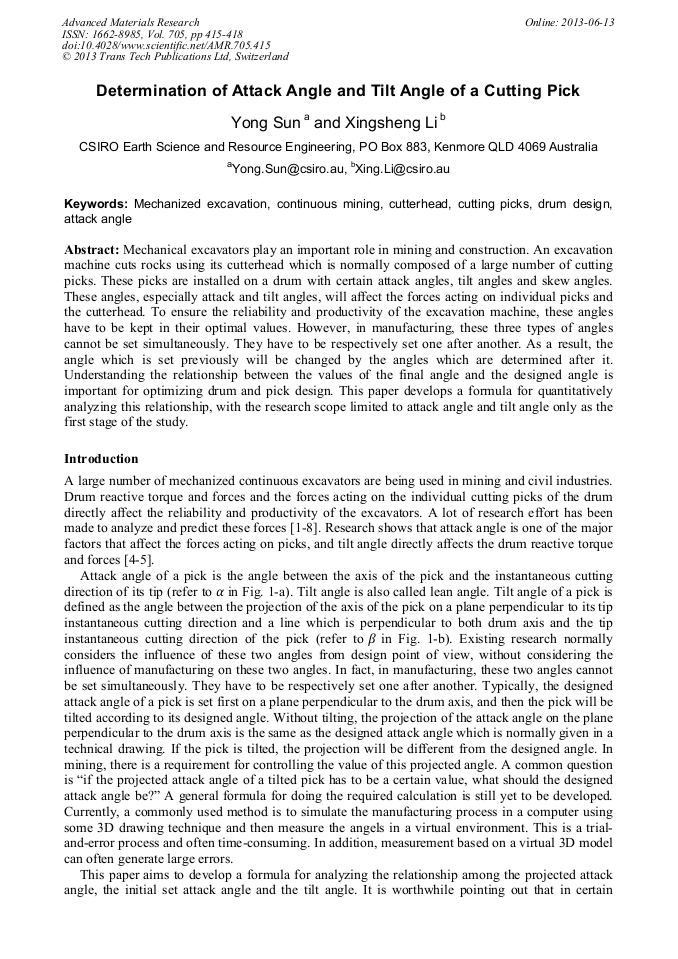

View Preview

Info:

Periodical:

Advanced Materials Research (Volume 705)

Pages:

415-418

DOI:

https://doi.org/10.4028/www.scientific.net/AMR.705.415

Citation:

Cite this paper

Online since:

June 2013

Authors:

Yong Sun, Xing Sheng Li

Keywords:

Attack Angle, Continuous Mining, Cutter Head, Cutting Picks, Drum Design, Mechanized Excavation

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] Y. Sun and X.S Li: Advanced Materials Research. Vol. 565(2012), pp.448-453.

Google Scholar

[2] Y. Sun, X.S. Li and W. Shao: Advanced Materials Research. Vol. 538-541 (2012), pp.1422-1428

Google Scholar

[3] I. Evans: International Journal of Mining Engineering, Vol. 2(1984), pp.63-71.

Google Scholar

[4] R. Goktan and N. Gunnes: The Journal of South African Institute of Mining and Metallurgy, Vol. 105(2005), pp.257-263.

Google Scholar

[5] K. Hurt and C. J. Morris, in: 14th Canadian Rock Mechanics Symposium on "Rock Breaking and Mechanical Excavation", Vancouver, British Columbia, (1982), pp.54-58.

Google Scholar

[6] Y. Sun and X.S Li: AASRI Procedia, (2012), in press.

Google Scholar

[7] S.Y. Liu, C.L. Du and X.X. Cui: Mining Science and Technology, Vol. 19 (2009), pp.514-517.

Google Scholar

[8] O. Su and N.A Akcin: International Journal of Rock Mechanics and Mining Sciences. Vol 48 (2011), pp.434-442.

Google Scholar
