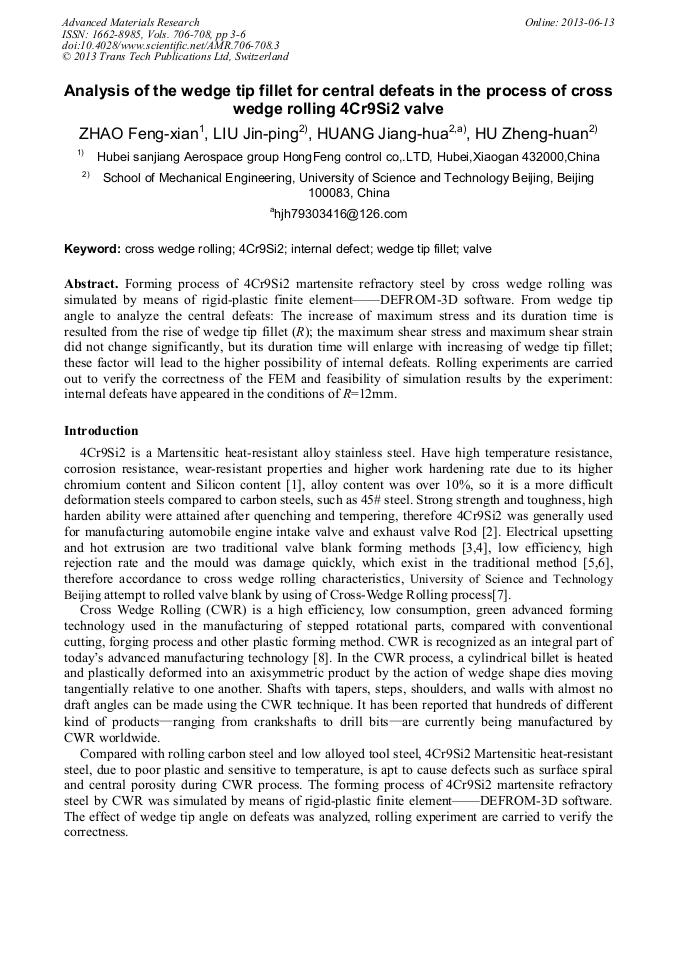

Analysis of the Wedge Tip Fillet for Central Defeats in the Process of Cross Wedge Rolling 4Cr9Si2 Valve

Abstract:

Forming process of 4Cr9Si2 martensite refractory steel by cross wedge rolling was simulated by means of rigid-plastic finite elementDEFROM-3D software. From wedge tip angle to analyze the central defeats: The increase of maximum stress and its duration time is resulted from the rise of wedge tip fillet (R); the maximum shear stress and maximum shear strain did not change significantly, but its duration time will enlarge with increasing of wedge tip fillet; these factor will lead to the higher possibility of internal defeats. Rolling experiments are carried out to verify the correctness of the FEM and feasibility of simulation results by the experiment: internal defeats have appeared in the conditions of R=12mm.

• Periodical: Advanced Materials Research (Volumes 706-708)
• Pages: 3-6
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.706-708.3
• Online since: June 2013
• Authors: Feng Xian Zhao, Jin Ping Liu, Jiang Hua Huang, Zheng Huan Hu
• Keywords: 4Cr9Si2, Cross Wedge Rolling, Internal Defect, Valve, Wedge Tip Fillet

References

[1] Zhu R Z. Heat resistant alloy and high temperature alloys.Beijing: chemical industry press, 1996: 253

[2] Wu X C, Shen W J. The application and development of engine valve materials. Internal Combustion Enginer, 1999 (01): 33

[3] Wang H C, Xia J C, Wang X Y, et al. Process Numerical Simulation on Hot Extrusion Preforming and Final Forging of Automobile Valves. CMET,2006 (03): 54

[4] Xia J C, Wang X Y, Hu G A,et al.Process Optimization and Simulation on the Perform and Part Forming During Electro-thermal Upsetting of Valve.Thermal Processing Technology,2004 (09): 25.

[5] Chen K J． The numerical simulation on hot extrusion of automobile valve． Mech Res Appl，2007(01): 50

[6] B Painter, R Shivpuri, T Altan. Prediction of die wears during hot-extrusion of engine valves. Journal of Materials processing Technology, 1996, 59(1/2): 132.

DOI: 10.1016/0924-0136(96)02294-7

[7] Liu J P, Hu Z H, Long S X, et al. An automobile engine valve blank precise forming method with cross wedge rolling: China Patent, 201010107843.3. 2010-7-28

[8] Hu Z H, Zhang K S, Wang B Y, et al. The forming technology and simulation of parts with cross wedge rolling. Beijing: Metallurgy Industry Press.2004: 101.

[9] Li Q, Michael R L, William Slaughter et al. Investigation of the morphology of internal defects in cross wedge rolling. Journal of Materials Processing Technology, 2002, 125-126: 248

DOI: 10.1016/s0924-0136(02)00303-5

[10] Ying F Q, Pan B S. Analysis on temperature distribution in cross wedge rolling process with finite element method. Journal of Materials Processing Technology,2007,187-188: 392

DOI: 10.1016/j.jmatprotec.2006.11.193
