Effects of CeO₂ Additions on the Structure and Dielectric Properties of Aluminoborosilicate Glasses

Abstract:

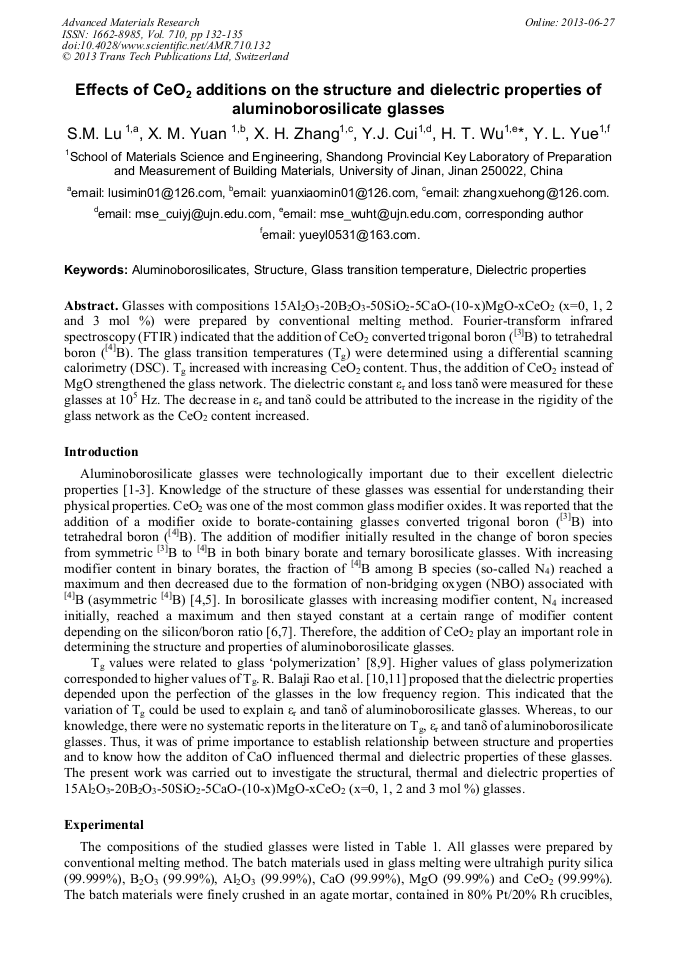

Glasses with compositions 15Al₂O₃-20B₂O₃-50SiO₂-5CaO-(10-x)MgO-xCeO₂ (x=0, 1, 2 and 3 mol %) were prepared by conventional melting method. Fourier-transform infrared spectroscopy (FTIR) indicated that the addition of CeO₂ converted trigonal boron (^[B) to tetrahedral boron (^[B). The glass transition temperatures (T_g) were determined using a differential scanning calorimetry (DSC). T_g increased with increasing CeO₂ content. Thus, the addition of CeO₂ instead of MgO strengthened the glass network. The dielectric constant ε_r and loss tanδ were measured for these glasses at 10⁵ Hz. The decrease in ε_r and tanδ could be attributed to the increase in the rigidity of the glass network as the CeO₂ content increased.

• Periodical: Advanced Materials Research (Volume 710)
• Pages: 132-135
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.710.132
• Online since: June 2013
• Authors: S.M. Lu, X.M. Yuan, X.H. Zhang, Y.J. Cui, H.T. Wu, Y.L. Yue
• Keywords: Aluminoborosilicate, Dielectric Property, Glass Transition Temperature, Structure

References

[1] M.M. Gomaa, H.A. Abo-Mosallam and H. Darwish: J Mater Sci: Mater Electron Vol. 20 (2009), p.507

[2] I. Choi, J.G. Kim, D.G. Lee and I.S. Seo: Compos Sci Tachnol Vol. 71 (2011), p.1632

[3] A. Sridhar, D.J. Van Dijk and R. Akkerman: Thin Solid Films Vol. 517 (2009), p.4633

[4] Y.H. Yun and P.J. Bray: J. Non-Cryst. Solids Vol. 44 (1981), p.227

[5] J. Zhong and P.J. Bray: J. Non-Cryst. Solids Vol 111 (1989), p.67

[6] W.J. Dell, P.J. Bray and S.Z. Xiao: J. Non-Cryst. Solids Vol. 58 (1983), p.1

[7] Y.H. Yun and P.J. Bray: J. Non-Cryst. Solids Vol. 27 (1978), p.363

[8] M. Bengisu, R.K. Brow, E. Yilmaz, A. Mogus-Milankovic, and S.T. Reis, J. Non-Cryst. Solids Vol. 352 (2006), p.3668

[9] D. Saritha, Y. Markandeya, M. Salagram, M. Vithal, A. K. Singh and G. Bhikshamaiah: J. Non-Cryst. Solids Vol. 354 (2008), p.5573

DOI: 10.1016/j.jnoncrysol.2008.09.017

[10] G. Lusvardi, G. Malavasi, F. Tarsitano, L. Menabue, M.C. Menziani and A. Pedone: J. Phys. Chem. B Vol. 113 (2009), p.10331

DOI: 10.1021/jp809805z

[11] N.J. Clayden, S. Esposito, A. Aronne and P. Pernice: J. Non-Cryst. Solids Vol. 258 (1999), p.11

[12] G.D. Chryssikos, M.S. Bitsis, J.A. Kapoutsis and E.I. Kamitsos: J. Non-Cryst. Solids Vol. 217 (1997), p.278

DOI: 10.1016/s0022-3093(97)00224-x

[13] M. Bengisu, R.K. Brow, E. Yilmaz, A. Mogus-Milankovic and S.T. Reis, J. Non-Cryst. Solids Vol. 352 (2006), p.3668

[14] D. Saritha, Y. Markandeya, M. Salagram, M. Vithal, A. K. Singh and G. Bhikshamaiah: J. Non-Cryst. Solids Vol. 354 (2008), p.5573

DOI: 10.1016/j.jnoncrysol.2008.09.017

[15] G. Lusvardi, G. Malavasi, F. Tarsitano, L. Menabue, M.C. Menziani and A. Pedone: J. Phys. Chem. B Vol. 113 (2009), p.10331

DOI: 10.1021/jp809805z

[16] N.J. Clayden, S. Esposito, A. Aronne and P. Pernice: J. Non-Cryst. Solids Vol. 258 (1999), p.11

[17] B.H. Jung and H.S. Kim: J. Non-Cryst. Solids Vol. 336 (2004), p.96

[18] Z.J. Wang, Y.C. Hu, H.K. Lu and F. Yu: J. Non-Cryst. Solids Vol. 354 (2008), p.1128

[19] G. Srinivasarao and N. Veeraiah: J. Solid. State. Chem Vol. 166 (2002), p.104

[20] G. Srinivasarao and N. Veeraiah: J. Phys. Chem. Solids Vol. 63 (2002), p.705
