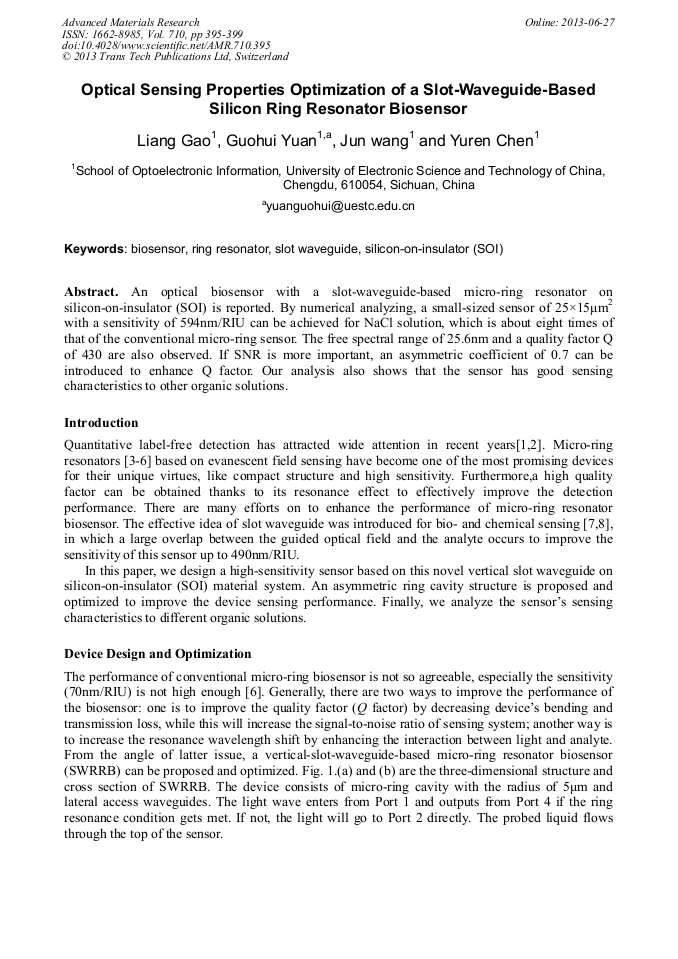

Optical Sensing Properties Optimization of a Slot-Waveguide-Based Silicon Ring Resonator Biosensor

Abstract:

An optical biosensor with a slot-waveguide-based micro-ring resonator on silicon-on-insulator (SOI) is reported. By numerical analyzing, a small-sized sensor of 25×15μm² with a sensitivity of 594nm/RIU can be achieved for NaCl solution, which is about eight times of that of the conventional micro-ring sensor. The free spectral range of 25.6nm and a quality factor Q of 430 are also observed. If SNR is more important, an asymmetric coefficient of 0.7 can be introduced to enhance Q factor. Our analysis also shows that the sensor has good sensing characteristics to other organic solutions.

• Periodical: Advanced Materials Research (Volume 710)
• Pages: 395-399
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.710.395
• Online since: June 2013
• Authors: Liang Gao, Guo Hui Yuan, Jun Wang, Yu Ren Chen
• Keywords: Biosensor, Ring Resonator, Silicon-on-Insulator (SOI), Slot Waveguide

References

[1] X. Fan et al: Anal. Chim. Acta. Vol. 620(2008), pp.8-26.

[2] A. Densmore et al: IEEE Photon. Technol. Lett. Vol. 18(2006), pp.2520-2522.

[3] A.M. Armani and K.J. Vahala: Opt. Lett. Vol. 31(2006), pp.1896-1898.

[4] A.M. Armani et al: Science. Vol. 317(2007), pp.783-787.

[5] H. Yi, D.S. Citrin, and Z. Zhou: Opt. Exp.Vol. 18(2010), pp.2967-2972.

[6] Katrien De Vos, I. Bartolozzi, E. Schacht, P. Bienstman, and R. Baets: Opt. Exp. Vol. 15(2007), p.7610–7615.

DOI: 10.1364/oe.15.007610

[7] Qianfan Xu, Vilson R. Almeida, Roberto R. Panepucci, and Michal Lipson: Opt. Lett. Vol. 29(2004), pp.1626-1628.

[8] Jacob T. Robinson, Long Chen, and Michal Lipson: OPTICS EXPRESS. Vol. 16(2008), pp.4296-4301.

[9] H. Su and X.G. Huang: Sensors and Actuators B-Chemical. Vol. 126(2007), pp.579-582.

[10] Information on http://bbs.redocn.com/thread-120741-1-1.html.
