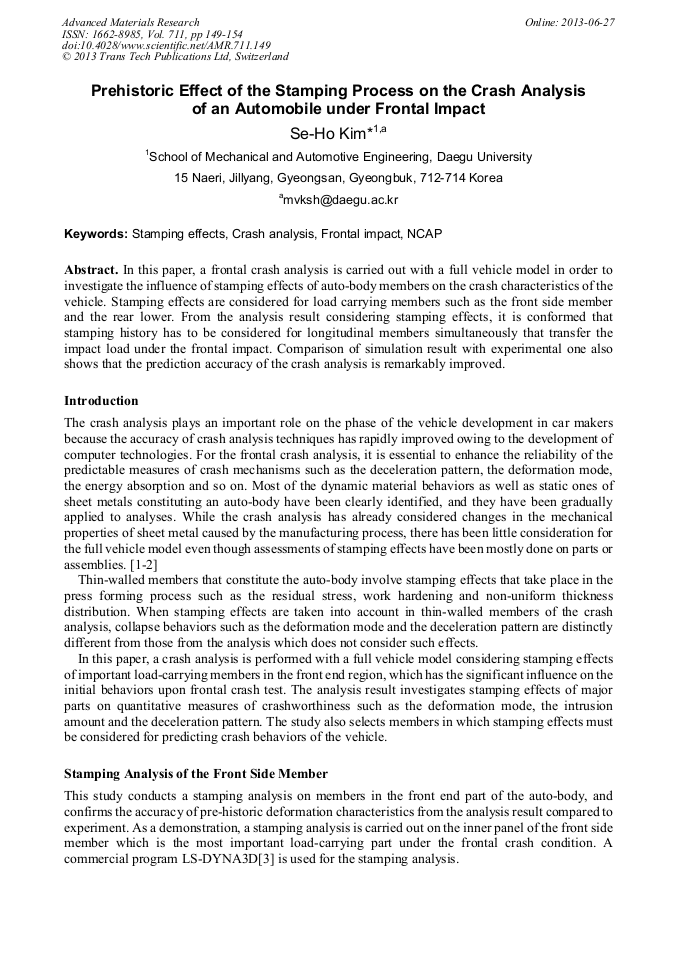

Prehistoric Effect of the Stamping Process on the Crash Analysis of an Automobile under Frontal Impact

Abstract:

In this paper, a frontal crash analysis is carried out with a full vehicle model in order to investigate the influence of stamping effects of auto-body members on the crash characteristics of the vehicle. Stamping effects are considered for load carrying members such as the front side member and the rear lower. From the analysis result considering stamping effects, it is conformed that stamping history has to be considered for longitudinal members simultaneously that transfer the impact load under the frontal impact. Comparison of simulation result with experimental one also shows that the prediction accuracy of the crash analysis is remarkably improved.

• Periodical: Advanced Materials Research (Volume 711)
• Pages: 149-154
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.711.149
• Online since: June 2013
• Authors: Se Ho Kim
• Keywords: Crash Analysis, Frontal Impact, NCAP, Stamping Effects

References

[1] H. Huh, K.P. Kim, S.H. Kim, J.H. Song, H.S. Kim and S.K. Hong: Int. J. Mech. Sci. Vol. 45(2003), p.1645

[2] S.H. Lee, C.S. Han, S.I. Oh and P. Wriggers: Engineering Computations Vol. 18(2001), p.744

[3] J. O. Hallquist: LS-DYNA3D Keyword User's Manual-Vers. 9.7 (LSTC, CA, 2003).

[4] NHTSA: Laboratory Test Procedure for New Car Assessment Program (2002).

[5] Insurance Institute for Highway Safety: Frontal Offset Crashworthiness Evaluation – Offset Barrier Crash Test Protocol (Version XIII) (2008).

DOI: 10.1533/ijcr.2005.0407

[6] ESI Group: PAM-CRASH 2G User's Guide (2002).
