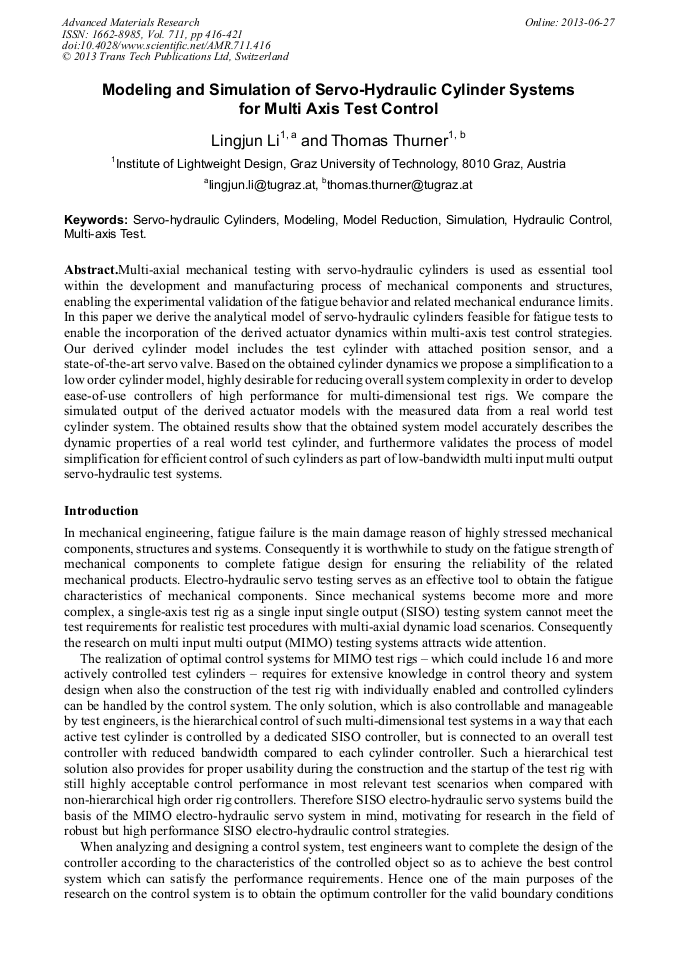

Modeling and Simulation of Servo-Hydraulic Cylinder Systems for Multi Axis Test Control

Abstract:

Multi-axial mechanical testing with servo-hydraulic cylinders is used as essential tool within the development and manufacturing process of mechanical components and structures, enabling the experimental validation of the fatigue behavior and related mechanical endurance limits. In this paper we derive the analytical model of servo-hydraulic cylinders feasible for fatigue tests to enable the incorporation of the derived actuator dynamics within multi-axis test control strategies. Our derived cylinder model includes the test cylinder with attached position sensor, and a state-of-the-art servo valve. Based on the obtained cylinder dynamics we propose a simplification to a low order cylinder model, highly desirable for reducing overall system complexity in order to develop ease-of-use controllers of high performance for multi-dimensional test rigs. We compare the simulated output of the derived actuator models with the measured data from a real world test cylinder system. The obtained results show that the obtained system model accurately describes the dynamic properties of a real world test cylinder, and furthermore validates the process of model simplification for efficient control of such cylinders as part of low-bandwidth multi input multi output servo-hydraulic test systems.

• Periodical: Advanced Materials Research (Volume 711)
• Pages: 416-421
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.711.416
• Online since: June 2013
• Authors: Ling Jun Li, Thomas Thurner
• Keywords: Hydraulic Control, Model Reduction, Modeling, Multi-Axis Test, Servo-Hydraulic Cylinders, Simulation

References

[1] J.E. McInroy: Modeling and design of flexure jointed Stewart platforms for control purposes. IEEE/ASME Transactions on Mechatronics Vol. 7 (2002), pp.95-99

DOI: 10.1109/3516.990892

[2] Y.X. Chen and J.E. McInroy: Decoupled control of flexure-jointed hexapods using estimated joint-space mass-inertia matrix. IEEE Transactions on Control Systems Technology Vol. 12 (2004), pp.413-421

DOI: 10.1109/tcst.2004.824339

[3] C.F. Yang, Q.T. Huang and J.W. Han: Decoupling control for spatial six-degree-of-freedom electro-hydraulic parallel robot. Robotics and Computer-Integrated Manufacturing Vol. 28 (2012), pp.14-23

DOI: 10.1016/j.rcim.2011.06.002

[4] B.-C. Chen, D.M. Tilbury and A.G. Ulsoy: Modular control for machine tools: cross-coupling control with friction compensation. ASME Dynamic Systems and Control Division Vol. DSC-64 (1998), pp.455-462

DOI: 10.1115/imece1998-0289

[5] M.T. Yan, M.H. Lee and P.L. Yen: Theory and application of a combined self-tuning adaptive control and cross-coupling control in a retrofit milling machine. Mechatronics Vol. 15 (2005), pp.193-211

DOI: 10.1016/j.mechatronics.2004.07.011

[6] W.A. Jia and J. Ruan: Four-axis high-frequency structural strength fatigue test system. 10th Intl. Conf. on Control, Automation, Robotics and Vision (2008)

DOI: 10.1109/icarcv.2008.4795760

[7] H. Zhang: Neural adaptive control of nonlinear MIMO electrohydraulic servosystem. Docter Thesis. University of Saskatchewan, 1997.

[8] S. Soderling, M. Sharp and C. Leser: Servo controller compensation methods selection of the correct technique for test applications. Society of Automotive Engineers (1999)

DOI: 10.4271/1999-01-3000

[9] M. Jelali and A. Kroll: Hydraulic Servo-systems: Modeling, Identification and Control (Springer, Great Britain 2004).

[10] N.D. Manring: Hydraulic Control Systems (John Wiley & Sons, Inc., USA 2005).

[11] Y.S. Sun, B.Q. Jin and X.Y. Xiong: Research united simulation of electro-hydraulic servo-proportional value controlled cylinder servo position system. Hydraulics Pneumatics & Seals Vol. 4 (2009), pp.38-42

[12] Moog, Inc.: G761 Series Servovalves. Technical reference, Moog Inc., East Aurora, NY. http://www.moog.com, 11-2012.
