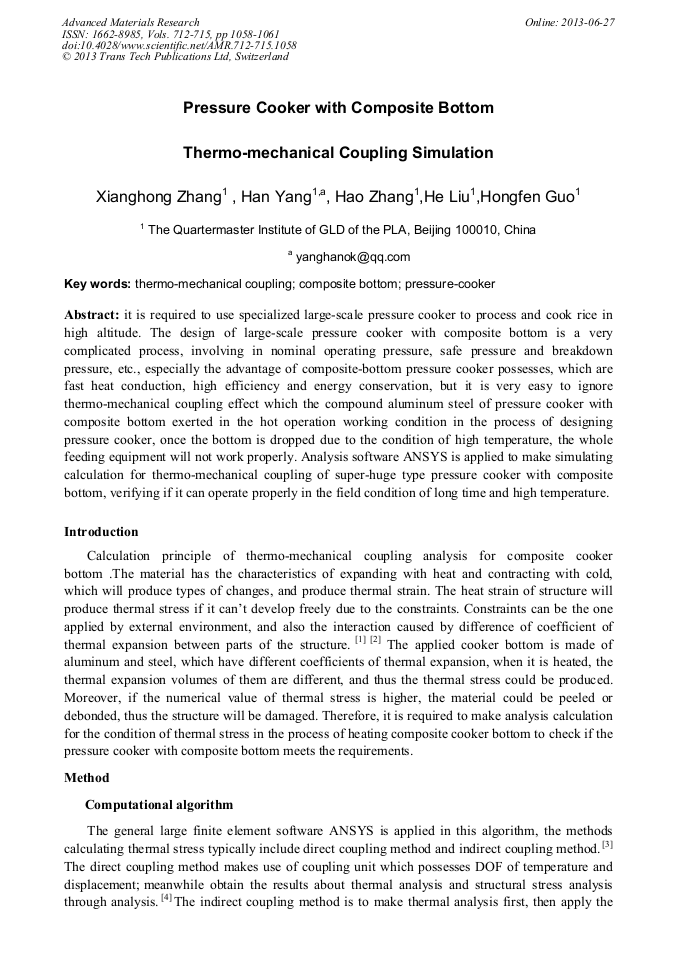

Pressure Cooker with Composite Bottom Thermo-Mechanical Coupling Simulation

Abstract:

t is required to use specialized large-scale pressure cooker to process and cook rice in high altitude. The design of large-scale pressure cooker with composite bottom is a very complicated process, involving in nominal operating pressure, safe pressure and breakdown pressure, etc., especially the advantage of composite-bottom pressure cooker possesses, which are fast heat conduction, high efficiency and energy conservation, but it is very easy to ignore thermo-mechanical coupling effect which the compound aluminum steel of pressure cooker with composite bottom exerted in the hot operation working condition in the process of designing pressure cooker, once the bottom is dropped due to the condition of high temperature, the whole feeding equipment will not work properly. Analysis software ANSYS is applied to make simulating calculation for thermo-mechanical coupling of super-huge type pressure cooker with composite bottom, verifying if it can operate properly in the field condition of long time and high temperature.

• Periodical: Advanced Materials Research (Volumes 712-715)
• Pages: 1058-1061
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.712-715.1058
• Online since: June 2013
• Authors: Xiang Hong Zhang, Han Yang, Hao Zhang, He Liu, Hong Fen Guo
• Keywords: Composite Bottom, Pressure-Cooker, Thermo-Mechanical Coupling

References

[1] Zhuo Weidong. Application of Elastic-plastic Mechanics [M]. Beijing: Science Press, 2004.

[2] Xie Yiquan, He Baofu. Finite Element Method in Elastic and Plastic Mechanics [M]. Beijing: Mechanical Industry Press, 1981.

[3] Zeng Pan. Finite-element Analysis and Application. Beijing: Tsinghua University Press, June 2004.

[4] [USA] wrote by: Ted Belytschko,Wing Kam Lin,Brian Moran, transplated by Zhuang Zhuo. Nonlinear Finite Element of Non-individual Body and Structure. Beijing: Tsinghua University Press, August 2011.

[5] Zhang Hongcai, He Bo. Finite-element Analysis: ANSYS 13.0 from Introduction to Practice. Mechanical Industry Press, September 2011.

[6] Chen Huohong, et al. MSC.Marc/Mentat2003 Foundation and Application Examples. Science Press

[7] CHEN Dong-lin, CHENG Shan,YUN Ying , DENG Tao. Effects of the Structure of Preheating Chamber on Combustion of a Multi-stage Self-preheating Burner, Power Engineering , October 2012.

DOI: 10.1109/appeec.2012.6306936

[8] Pu Lianggui, Ji Minggang. Mechanical Design [M]. Beijing: Higher Education Press, 2001.
