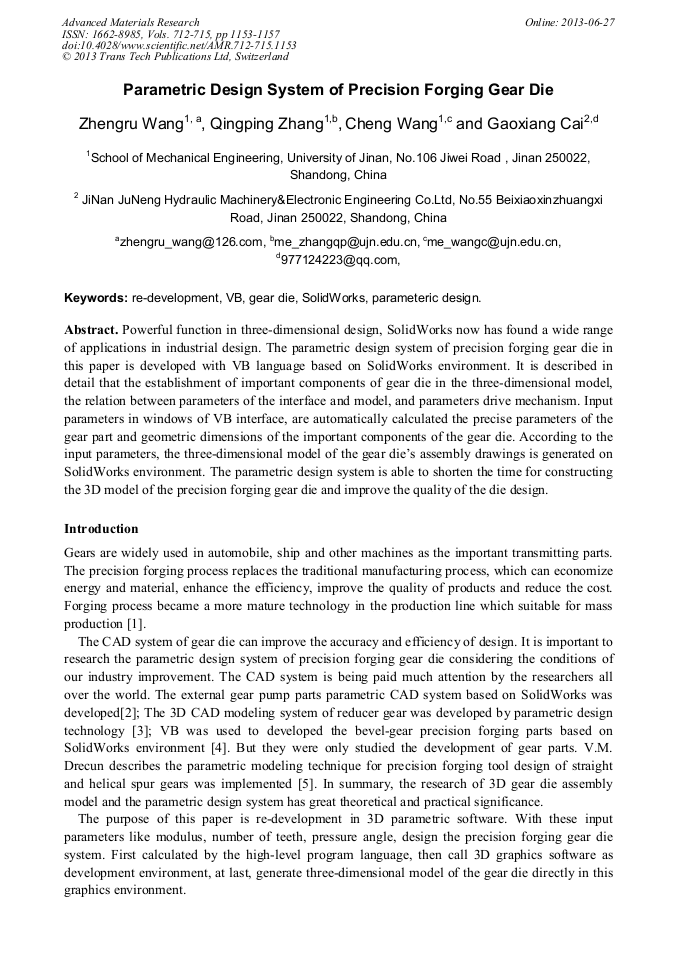

Parametric Design System of Precision Forging Gear Die

Abstract:

Powerful function in three-dimensional design, SolidWorks now has found a wide range of applications in industrial design. The parametric design system of precision forging gear die in this paper is developed with VB language based on SolidWorks environment. It is described in detail that the establishment of important components of gear die in the three-dimensional model, the relation between parameters of the interface and model, and parameters drive mechanism. Input parameters in windows of VB interface, are automatically calculated the precise parameters of the gear part and geometric dimensions of the important components of the gear die. According to the input arameters, the three-dimensional model of the gear die’s assembly drawings is generated on SolidWorks environment. The parametric design system is able to shorten the time for constructing the 3D model of the precision forging gear die and improve the quality of the die design.

• Periodical: Advanced Materials Research (Volumes 712-715)
• Pages: 1153-1157
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.712-715.1153
• Online since: June 2013
• Authors: Zheng Ru Wang, Qing Ping Zhang, Cheng Wang, Gao Xiang Cai
• Keywords: Gear Die, Parameteric Design, Re-Development, SolidWorks, Visual Basic (VB)

References

[1] J.caia,T.A. Deana Z.M. Hub. Journal of Materials Processing Technology Vol.4(2007), pp.159-465.

[2] Qiu C X. Based SolidWorks parametric CAD system development of external gear pump parts . Nanjing Forestry University. (2007) (In Chinese).

[3] Xi Q. CAD 3D Modeling and key components parametric design of the gear reducer. Taiyuan University of Technology.(2006) (In Chinese).

[4] Gao Y Y. Machinery Manufacturing Vol.44(2006), pp.14-16(In Chinese).

[5] V.M. Drecun, T.A. Dean. International Journal of Machine Tools and Manufacture (1991), p.183–191.

[6] Chen J H. 3D parametric modeling and stress analysis of cylindrical gears. Northwestern Polytechnical University, (2005) (In Chinese).

[7] Wang D Y. Research and Implementation based on knowledge of machinery common parts in parametric CAD system. Tianjin Polytechnic University, (2005)(In Chinese).

[8] Zhang Q P.Research on 3D Numerical Simulation and Key Technologies of Precision Forging Processes of Gears,Shan Dong University，(2004)(In Chinese).

[9] Li Z. The study of gears three-dimensional parametric modeling based on SolidWorks. Inner Mongolia Agricultural University, (2005)(In Chinese).

[10] Zhang J D.Micro Computer Information Vol.1(2007), pp.1-5(In Chinese).

[11] Chen X Q. Science Technology and Engineering Vol.7(2007), pp.1451-1454(In Chinese).

[12] Wu B. Manufacturing Technology and Machine Tool Vol.10(2006), pp.41-44(In Chinese).
