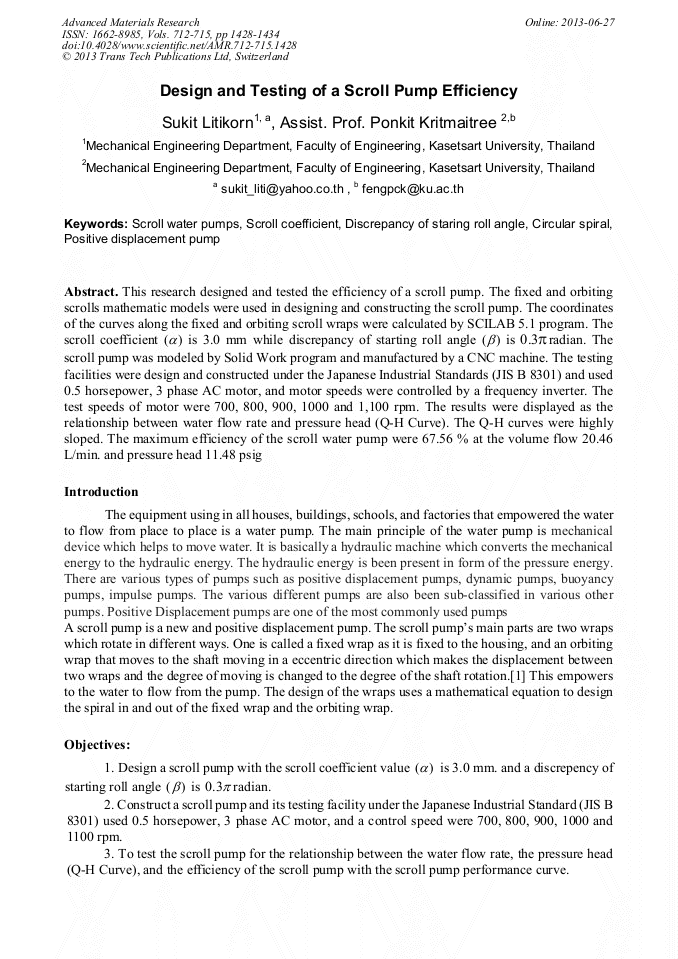

Design and Testing of a Scroll Pump Efficiency

Abstract:

This research designed and tested the efficiency of a scroll pump. The fixed and orbiting scrolls mathematic models were used in designing and constructing the scroll pump. The coordinates of the curves along the fixed and orbiting scroll wraps were calculated by SCILAB 5.1 program. The scroll coefficient is 3.0 mm while discrepancy of starting roll angle is radian. The scroll pump was modeled by Solid Work program and manufactured by a CNC machine. The testing facilities were design and constructed under the Japanese Industrial Standards (JIS B 8301) and used 0.5 horsepower, 3 phase AC motor, and motor speeds were controlled by a frequency inverter. The test speeds of motor were 700, 800, 900, 1000 and 1,100 rpm. The results were displayed as the relationship between water flow rate and pressure head (Q-H Curve). The Q-H curves were highly sloped. The maximum efficiency of the scroll water pump were 67.56 % at the volume flow 20.46 L/min. and pressure head 11.48 psig

You might also be interested in these eBooks

Advances in Manufacturing Science and Engineering

View Preview

Info:

Periodical:

Advanced Materials Research (Volumes 712-715)

Pages:

1428-1434

DOI:

https://doi.org/10.4028/www.scientific.net/AMR.712-715.1428

Citation:

Cite this paper

Online since:

June 2013

Authors:

Sukit Litikorn*, Ponkit Kritmaitree

Keywords:

Circular Spiral, Discrepancy of Staring Roll Angle, Positive Displacement Pump, Scroll Coefficient, Scroll Water Pump

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

* - Corresponding Author

References

[1] Charl Thanat-ngan and Warit Uengpakorn. (1994). A Machinery Design, Volume 1. Bangkok: C-Education, Company, Ltd.

Google Scholar

[2] Kritmaitree, P. (2002). Study of Volumetric Scroll Pump for the Cold Moderator System. Ph.D. Thesis, Utsunomiya University, Japan

Google Scholar

[3] Thana Phuphuekrat (2005). An Analysis of the Wrap of The Scroll Wrap Pump Loss. Master of Engineering Thesis, the Faculty of Engineering, Kasetsart University.

Google Scholar

[4] Japan Standard Association (1990) Testing Methods for Centrifugal Pump, Mixed Flow Pump and Axial Flow Pumps. JIS B 8301 Japanese Standards Association: Tokyo, Japan

Google Scholar

[5] Jamed B.Rishel (2006) HVAC Pump Handbook. McGraw-Hill, Inc.: Singapore

Google Scholar

[6] Krutzsch, W.C. (1985) Introduction: classification and selection of pump. Pump Handbook International Edition. McGraw-Hill Inc.: New York, USA.

Google Scholar
