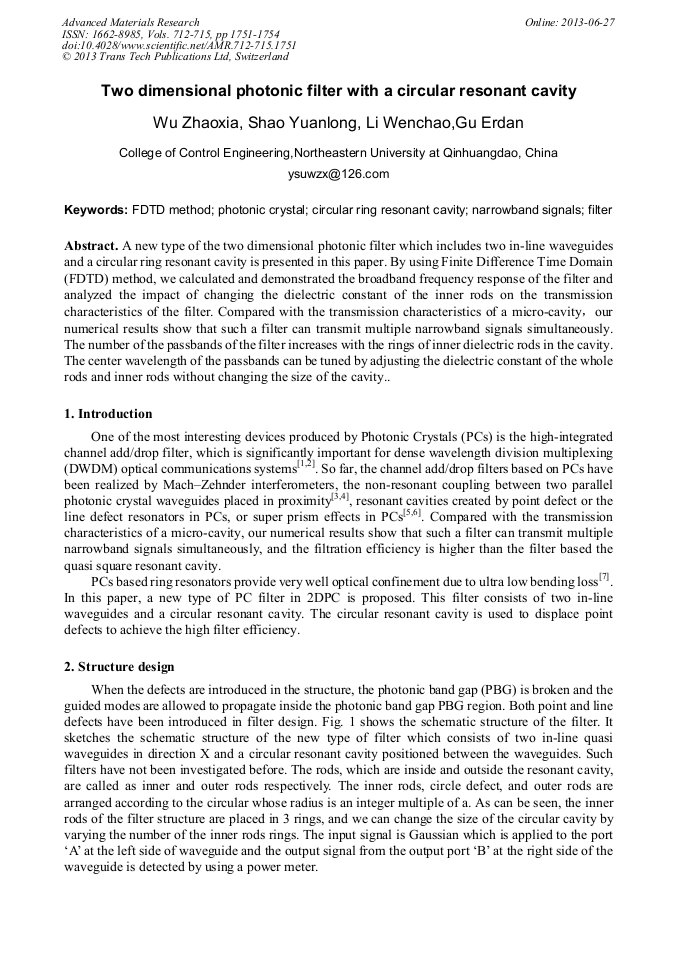

Two Dimensional Photonic Filter with a Circular Resonant Cavity

Abstract:

A new type of the two dimensional photonic filter which includes two in-line waveguides and a circular ring resonant cavity is presented in this paper. By using Finite Difference Time Domain (FDTD) method, we calculated and demonstrated the broadband frequency response of the filter and analyzed the impact of changing the dielectric constant of the inner rods on the transmission characteristics of the filter. Compared with the transmission characteristics of a micro-cavity,our numerical results show that such a filter can transmit multiple narrowband signals simultaneously. The number of the passbands of the filter increases with the rings of inner dielectric rods in the cavity. The center wavelength of the passbands can be tuned by adjusting the dielectric constant of the whole rods and inner rods without changing the size of the cavity..

• Periodical: Advanced Materials Research (Volumes 712-715)
• Pages: 1751-1754
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.712-715.1751
• Online since: June 2013
• Authors: Zhao Xia Wu, Yuan Long Shao, Wen Chao Li, Er Dan Gu
• Keywords: Circular Ring Resonant Cavity, FDTD Method, Filter, Narrowband Signal, Photonic Crystal (PC)

References

[1] Y.Wu, T.shlh, J.Lee.High-quallth –factor fliter based on a photonic crystal ring resonator for wavelength division multiplexing applications [J].Appl.Opt. 2009, 48(25):24-30

DOI: 10.1364/ao.48.000f24

[2] Lavrinenko, P.I. Borel, L.H. Frandsen, M. Thorhauge, A. Harpoth, M. Kristensen, T. Niemi, H.M.H. Chong, Comprehensive FDTD modeling of photonic crystal waveguide components, Opt. Express, 2004,12 : 234–248.

DOI: 10.1364/opex.12.000234

[3] A.Khavasi, M.Miri, Mrezaei et al..Transmission line model for extraction of transmission characteristics in photonic crystal waveguides with stubs: optical filter design [J].Opt.Lett. 2012, 37(8):1322-1324

DOI: 10.1364/ol.37.001322

[4] Gangqiang Xiong, Jiaxian Wang, Juncheng Zhang et al. The Analysis of the Influence Factors of Photonic Absolute Band Gap [J]. Acta optica sinica, 2009, 29(12):3523-3526.

DOI: 10.3788/aos20092912.3523

[5] Qin M, Jaskorzynska B. Design of a channel drop filter in a two-dimensional triangular photonic crystal [J]. Appl. Phys. Lett. , 2006, 83 (6):1074-1076.

DOI: 10.1063/1.1599982

[6] R. Costa, A. Melloni, M. Martinelli, Band-pass resonant filters in photonic crystal waveguides [J]. IEEE Photon. Tech. Lett. 2003, 15:401–403.

DOI: 10.1109/lpt.2002.807953

[7] C. Chao, X. Li, H. Li, K. Xu, J. Wu, J. Lin, Bandpass filters based on phase-shifted photonic crystal waveguide gratings [J].Opt. Express .2007,15:11278-11284.

DOI: 10.1364/oe.15.011278
