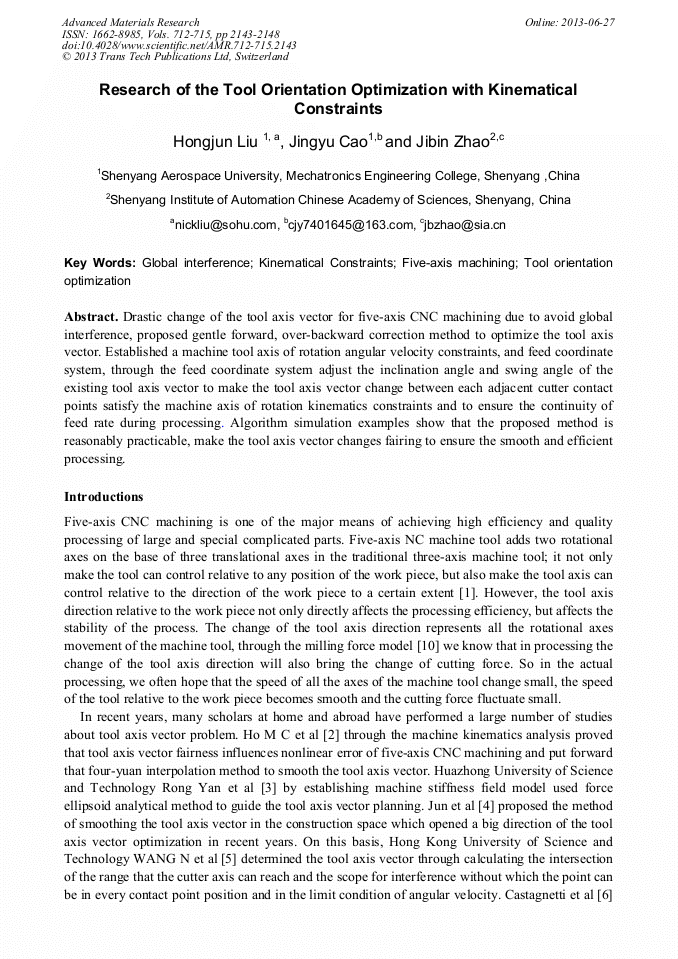

Research of the Tool Orientation Optimization with Kinematical Constraints

Abstract:

Drastic change of the tool axis vector for five-axis CNC machining due to avoid global interference, proposed gentle forward, over-backward correction method to optimize the tool axis vector. Established a machine tool axis of rotation angular velocity constraints, and feed coordinate system, through the feed coordinate system adjust the inclination angle and swing angle of the existing tool axis vector to make the tool axis vector change between each adjacent cutter contact points satisfy the machine axis of rotation kinematics constraints and to ensure the continuity of feed rate during processing. Algorithm simulation examples show that the proposed method is reasonably practicable, make the tool axis vector changes fairing to ensure the smooth and efficient processing.

• Periodical: Advanced Materials Research (Volumes 712-715)
• Pages: 2143-2148
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.712-715.2143
• Online since: June 2013
• Authors: Hong Jun Liu*, Jing Yu Cao, Ji Bin Zhao
• Keywords: Five-Axis Machining, Global Interference, Kinematical Constraints, Tool Orientation Optimization

References

[1] Ailing Wang, Mengqun Li and Yuxiang Feng. NC machining theory and practical technology[M]. Beijing: China Machine Press, 2009, 5.In Chinese

[2] Ho M C, Hwang Y R and Hu C H. Five-axis tool orientation smoothing using quaternion interpolation algorithm. Int J Mach Tool Manu, 2003, 43(12): 1259-1267.

DOI: 10.1016/s0890-6955(03)00107-x

[3] Rong Yan, Fangyu Peng and Bin Li. Multi-spindle NC machining tool attitude optimization and its stiffness performance index analysis[J]. Chinese Journal of Mechanical Engineering, 2008, 19(22): 2699-2702. In Chinese

[4] Jun C S, Cha K and Lee Y S. Optimizing tool orientations for 5-axis machining by configuration-space search method. Comput Aided Design, 2003, 35(6): 549-566.

DOI: 10.1016/s0010-4485(02)00077-5

[5] Wang N and Tang K. Automatic generation of gouge-free and angular-velocity-compliant five-axis toolpath. Computer Aided Design, 2007, 39(10): 841-852.

DOI: 10.1016/j.cad.2007.04.003

[6] Castagnetti C, Duc E and Ray P. The domain of admissible orientation concept: A new method for five-axis tool path optimisation. Computer Aided Design, 2008, 40(9): 938-950.

DOI: 10.1016/j.cad.2008.07.002

[7] Bi Q Z, Wang Y H, Zhu L M, et al. Wholly smoothing cutter orientations for five-axis NC machining based on cutter contact point mesh. Sci China Tech Sci, 2010, 53: 1294-1303.

DOI: 10.1007/s11431-010-0064-x

[8] Zhan Haisheng, Li Guangxin and Ma Zhixin. Geometric modelling technology and system development Based on ACIS[M]. Beijing: Tsinghua University Press, 2002, 6. In Chinese

[9] Liu Weijun and Sun Yuwen. Reverse engineering principle, method and application [M]. Beijing: China Machine Press, 2008, 9. In Chinese

[10] Ozturk E. and Budak E. Modeling of 5-axis milling processes. Machining Science and Technology, 2007, 11(3): 287-31.
