For Libraries For Publication Open Access Downloads About Us Contact Us
Paper Titles
Analysis for Extinction Capability of Carbon Nanofibers by Moment Method
p.220
Solid State Chemical Reaction Synthesis and Characterization of Nanocrystalline Cerium 8-Quinolinolate
p.224
Synthesis and Micro-Wave Absorption Properties of BiFeO3 Coated Fe Nanocapsules
p.229
Synthesis of CoPt Nanoparticles by Reduction of Co(CH3COO)2 and Pt(acac)2
p.233
Preparation of Monodisperse Iron Nanoparticles at Low Temperature
p.237
Hydrothermal Synthesis, Characterization and Optical Properties of Zn-Doped CdS Dendritic Nanostructures
p.241
Energy Transfer of PVK/ SiO2 Nanometer Composite Films
p.246
Research on the Activation System of Lead-Acid Battery
p.253
Preparation of La0.75Sr0.25Cr0.5Mn0.5O3-δ Nanometer Powders by Sol-Gel Method and Research about its Electrochemical Performance
p.257

Preparation of Monodisperse Iron Nanoparticles at Low Temperature

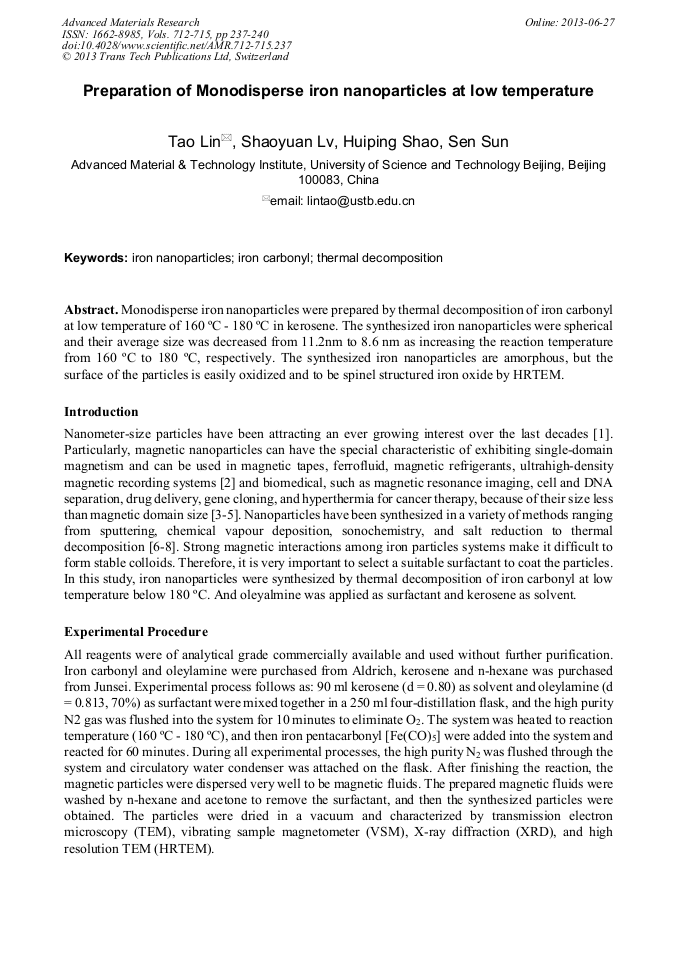

Article Preview

Abstract:

Monodisperse iron nanoparticles were prepared by thermal decomposition of iron carbonyl at low temperature of 160 oC - 180 oC in kerosene. The synthesized iron nanoparticles were spherical and their average size was decreased from 11.2nm to 8.6 nm as increasing the reaction temperature from 160 oC to 180 oC, respectively. The synthesized iron nanoparticles are amorphous, but the surface of the particles is easily oxidized and to be spinel structured iron oxide by HRTEM.

You might also be interested in these eBooks
Advances in Manufacturing Science and Engineering View Preview

Info:

Periodical:

Advanced Materials Research (Volumes 712-715)

Pages:

237-240

DOI:

https://doi.org/10.4028/www.scientific.net/AMR.712-715.237

Citation:

Cite this paper

Online since:

June 2013

Authors:

Tao Lin, Shao Yuan Lv, Hui Ping Shao, Sen Sun

Keywords:

Iron Carbonyl, Ron Nanoparticle, Thermal Decomposition

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

© 2013 Trans Tech Publications Ltd. All Rights Reserved

Share:

Citation:

References

[1] C. Petit, S. Rusponi, and H. Brune, J. Appl. Phys., 95 No.8 (2004) 4251.

Google Scholar

[2] L. Bronstein, E. Kramer, B. Berton, C. Burger, S. Forster, M. Antonietti, Chem. Mater., 11 (1999) 1402.

Google Scholar

[3] C. Liu, T.J. Klemmer, N. Shukla, X. Wu, D. Weller, M. Tanase, D. Laughlin, J. Magn. Magn. Mater., 266 (2003) 96.

Google Scholar

[4] N. Wu, L. Fu, M. Su, M. Aslam, K. C. Wong, and V. P. Dravid, NanoLetters, 4 No.2 (2004) 383.

Google Scholar

[5] C. J. Choi, O. Tolochko, B.K. Kim, Materials Letters, 56 (2002) 289.

Google Scholar

[6] F. Guo, H. Zheng, Z. Yang, Y. Qian, Mater. Lett., 56 (2002) 906.

Google Scholar

[7] S. Wirth, S. von Molnar, M. Field, and D.D. Awschalom, J. Appl. Phys., vol. 85, no.8, (1999) 5249.

Google Scholar

[8] M. Sivakumar, A. Gedanken, W. Zhong, Y. W. Du, D. Bhattacharya, Y. Yeshurun, and I. Felner, J. Magn. Magn. Mater., 268 (2004) 95.

Google Scholar

© 2025 Trans Tech Publications Ltd. All rights are reserved, including those for text and data mining, AI training, and similar technologies. For open access content, terms of the Creative Commons licensing CC-BY are applied.
Scientific.Net is a registered trademark of Trans Tech Publications Ltd.
