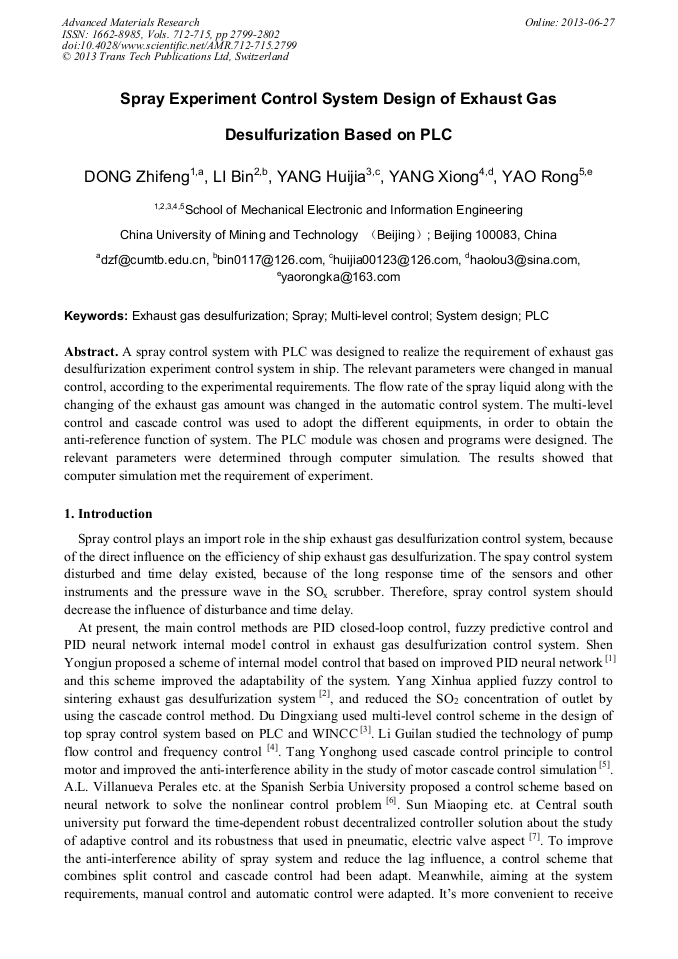

Spray Experiment Control System Design of Exhaust Gas Desulfurization Based on PLC

Abstract:

A spray control system with PLC was designed to realize the requirement of exhaust gas desulfurization experiment control system in ship. The relevant parameters were changed in manual control, according to the experimental requirements. The flow rate of the spray liquid along with the changing of the exhaust gas amount was changed in the automatic control system. The multi-level control and cascade control was used to adopt the different equipments, in order to obtain the anti-reference function of system. The PLC module was chosen and programs were designed. The relevant parameters were determined through computer simulation. The results showed that computer simulation met the requirement of experiment.

• Periodical: Advanced Materials Research (Volumes 712-715)
• Pages: 2799-2802
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.712-715.2799
• Online since: June 2013
• Authors: Zhi Feng Dong*, Bin Li, Hui Jia Yang, Xiong Yang, Rong Yao
• Keywords: Exhaust Gas Desulfurization, Multi-Level Control, Programmable Logic Controller (PLC), Spray, System Design

References

[1] Shen Yongjun. Internal model control based on an improved PID neural network for wet exhaust gas desulphurization [J]. Tsinghua Science and Technology, 2007(47):1798-1802

[2] Yang Xinhua. Research and Application of the Fuzzy Predictive Control on Desulphurization Technology for Sintering Exhaust gas [J]. Electrical automation,2011(33):3-5

[3] Du Dingxiang, Wang Renming. The Design of Blast Spray System Based on PLC and WINCC [J]. Techniques of Automation and Application, 2012(31):85-88

[4] Li Guilan. The Research Based on Water Pump Flow Control and Frequency Conversion Velocitymodulation Technology Application Research [J]. Coal Engineering, 2008(5):83-84

[5] Tang Yonghong, Gao Yanli. The Simulation Research of Cascade Control System in the Control of Motor [C]. Mechanical,Industrial and Manufacturing Engineering, 2011(1): 469-472

[6] A.L. Villanueva Perales. Using neural networks to address nonlinear pH control in wet limestone exhaust gas desulfurization plants [J]. Industrial and Engineering Chemwastry Research, 2010(49):2263-2272

DOI: 10.1021/ie9007584

[7] Sun Miaoping. Delay-dependent robust stabilization for steam valve opening of uncertain time-delay multi-machine power system with sector saturating actuator [J]. International Journal of Electrical Power and Energy Systems, 2013(44):153-159

DOI: 10.1016/j.ijepes.2012.07.004
