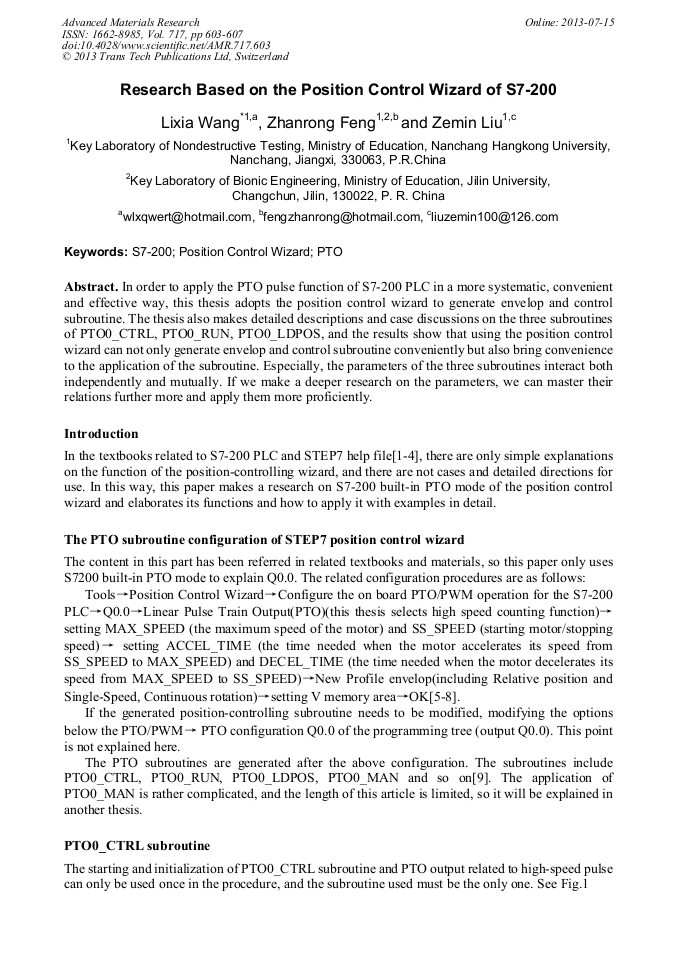

Research Based on the Position Control Wizard of S7-200

Abstract:

In order to apply the PTO pulse function of S7-200 PLC in a more systematic, convenient and effective way, this thesis adopts the position control wizard to generate envelop and control subroutine. The thesis also makes detailed descriptions and case discussions on the three subroutines of PTO0_CTRL, PTO0_RUN, PTO0_LDPOS, and the results show that using the position control wizard can not only generate envelop and control subroutine conveniently but also bring convenience to the application of the subroutine. Especially, the parameters of the three subroutines interact both independently and mutually. If we make a deeper research on the parameters, we can master their relations further more and apply them more proficiently.
