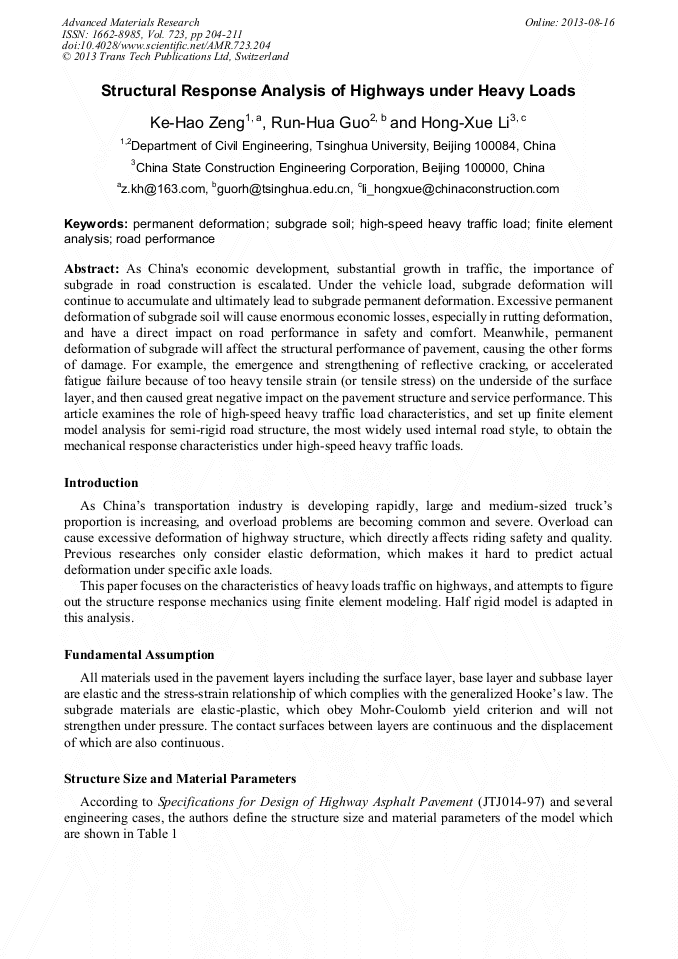

Structural Response Analysis of Highways under Heavy Loads

Abstract:

As China's economic development, substantial growth in traffic, the importance of subgrade in road construction is escalated. Under the vehicle load, subgrade deformation will continue to accumulate and ultimately lead to subgrade permanent deformation. Excessive permanent deformation of subgrade soil will cause enormous economic losses, especially in rutting deformation, and have a direct impact on road performance in safety and comfort. Meanwhile, permanent deformation of subgrade will affect the structural performance of pavement, causing the other forms of damage. For example, the emergence and strengthening of reflective cracking, or accelerated fatigue failure because of too heavy tensile strain (or tensile stress) on the underside of the surface layer, and then caused great negative impact on the pavement structure and service performance. This article examines the role of high-speed heavy traffic load characteristics, and set up finite element model analysis for semi-rigid road structure, the most widely used internal road style, to obtain the mechanical response characteristics under high-speed heavy traffic loads.

• Periodical: Advanced Materials Research (Volume 723)
• Pages: 204-211
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.723.204
• Online since: August 2013
• Authors: Ke Hao Zeng, Run Hua Guo, Hong Xue Li
• Keywords: Finite Element Analysis (FEA), High-Speed Heavy Traffic Load, Permanent Deformation, Road Performance, Subgrade Soil

References

[1] TANG Liansheng, ZHANG Qinghua, LIAO Huarong. Advance in Post-Construction Settlement of Soft Subgrade Soil, J. Chinese Journal of Rock Mechanics and Engineering, 2006, 3450-3452.

[2] XIAO Jun-hua, YANG Xing-chen. Permanent deformation of silt subgrade under vehicle load, J. Journal of Nanjing University of Technology (Natural Science Edition), 2010, 17-18.

[3] Zhou Huafei, Jiang Jianqun, Mao Genhai. Analysis of Dynamic Vehicle Load Caused by Pavement Roughness, J. China Municipal Engineering, 2002, 10-11.

[4] Elliott R P，Thornton S I. Simplification of subgrade resilient modulus testing[A]. In：Transportation Research Record(1 192), C. Washington, D. C.：[s. n. ]，1988. 1–7.

[5] Monismith C L, Ogawa N, Freeme C R. Permanent deformation characteristics of subgrade soils due to repeated loading [A]. TRR 537, TRB, C. Washington D C: 1975: 1~17.

[6] Barksdale, R. D. Laboratory Evaluation of Rutting in Base Course Materials, J. Proceedings, 3rd International Conference on the Structural Design of Asphalt Pavements, University of Michigan, 1972:161-174.

[7] Lentz, R. W. Permanent deformation of a Cohesion less Subgrade Material Under Cyclic Loading, D. Michigan State University, East Lansing, USA, 1979,95-113.

[8] Majidzadeh, K.,Bayomy, F., and Khedr S. Rutting Evaluation of Subgrade Soils in Ohio, J, TRR 637, TRB,Washington D. C. 1978,75-84.

[9] Deng Weidong, Zhang Xingqiang, Chen Bo, Yan Shuwang. Nonlinear FEM analysis of influence of asphalt pavement under non-homogenous settlement of roadbed, J. China Journal of Highway and Transport, 2004, 12-13.

[10] Theyse, H.L. Mechanistic - empirial modeling of the permanent deformation of unbound pavement layers, J. Proceedings, 8th International Conference on Asphalt Pavements, 1997,(2):1597-1594.

[11] WEI Mi, GUO Zhong-yin, YANG Qun. Permanent Deformation of Subgrade Soils in Flexible Pavement under Axle Cyclic Loading, J. Chinese Journal of Underground Space and Engineering, 2007, 357-358.

[12] RTAC. Pavement Design and Evaluation Committee, Roads and Transportations Association of Canada, Output Measurement of Pavement Studies in Canada, Proc. of 3rd ICSDAP, p.978~989, 1972.

[13] QIU Yan-jun, SUN Zhen-tang. Permanent Deformation of Subgrade Soils in Flexible Pavement, J. Journal of Southwest Jiaotong University, 2000, 117-118.

[14] Lade P. Elasto-plastic stress-strain theory for cohesionless soil with curved yield surface, J. Int. J. of Solids & Structures, 1977; 13: 1019~1035.

DOI: 10.1016/0020-7683(77)90073-7
