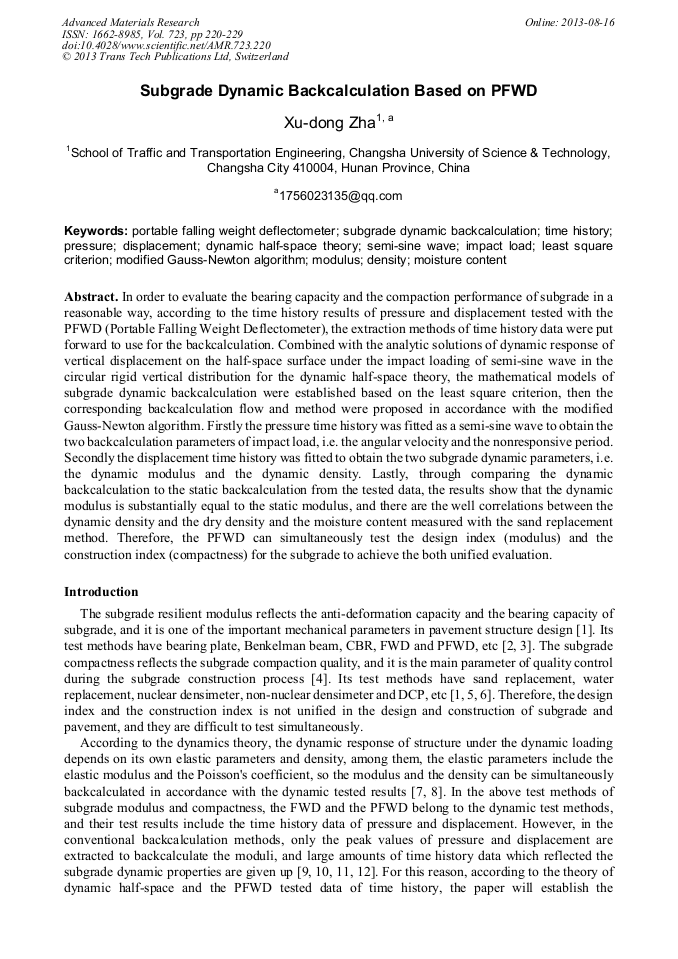

Subgrade Dynamic Backcalculation Based on PFWD

Abstract:

In order to evaluate the bearing capacity and the compaction performance of subgrade in a reasonable way, according to the time history results of pressure and displacement tested with the PFWD (Portable Falling Weight Deflectometer), the extraction methods of time history data were put forward to use for the backcalculation. Combined with the analytic solutions of dynamic response of vertical displacement on the half-space surface under the impact loading of semi-sine wave in the circular rigid vertical distribution for the dynamic half-space theory, the mathematical models of subgrade dynamic backcalculation were established based on the least square criterion, then the corresponding backcalculation flow and method were proposed in accordance with the modified Gauss-Newton algorithm. Firstly the pressure time history was fitted as a semi-sine wave to obtain the two backcalculation parameters of impact load, i.e. the angular velocity and the nonresponsive period. Secondly the displacement time history was fitted to obtain the two subgrade dynamic parameters, i.e. the dynamic modulus and the dynamic density. Lastly, through comparing the dynamic backcalculation to the static backcalculation from the tested data, the results show that the dynamic modulus is substantially equal to the static modulus, and there are the well correlations between the dynamic density and the dry density and the moisture content measured with the sand replacement method. Therefore, the PFWD can simultaneously test the design index (modulus) and the construction index (compactness) for the subgrade to achieve the both unified evaluation.

• Periodical: Advanced Materials Research (Volume 723)
• Pages: 220-229
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.723.220
• Online since: August 2013
• Authors: Xu Dong Zha
• Keywords: Density, Displacement, Dynamic Half-Space Theory, Impact Load, Least Square Criterion, Modified Gauss-Newton Algorithm, Modulus, Moisture Content, Portable Falling Weight Deflectometer, Pressure, Semi-Sine Wave, Subgrade Dynamic Backcalculation, Time History

References

[1] Industry standard of PRC, Specifications for Design of Highway Asphalt Pavement (JTG D50-2006), China Communications Press, Beijing, 2006.

[2] Industry standard of PRC, Field Test Methods of Subgrade and Pavement for Highway Engineering (JTG E60-2008), China Communications Press, Beijing, 2008.

[3] X.D. Zha, Study of rapid test of subgrade modulus with PFWD, Journal of Highway and Transportation Research and Development, 26(1) (2009) 26-30.

[4] Industry standard of PRC, Technical Specification for Construction of Highway Subgrades (JTG F10-2006), China Communications Press, Beijing, 2006.

[5] X.D. Zha, B. Yang, B. Wang, W. Chen. Rapid testing of compaction properties for soil subgrade with dynamic cone penetrometer, Journal of Transport Science and Engineering, 26(1) (2010) 14-18.

[6] X.Z. Shen, H. Zhang, H.Z. Shen, D.P. Han, A radial basis function method of error-revising for nuclear density-moisture gauge, China Civil Engineering Journal, 37(11) (2004) 92-96.

[7] H.Y. Chai, H.M. Wu, D.J. Zhang, S.B. Liu, Theroy of Surface Wave in Elastic Medium and Its Applications in Geotechnical Engineering, Science Press, Beijing, 2008.

[8] X.D. Zha, Q.M. Xiao, Analysis of properties for loads and deformations with portable falling weight deflectometer, Proceedings of 7th International Conference on Road and Airfield Pavement Technology, Bangkok, Thailand, (2011) 264-275.

[9] D.J. Duan, X.D. Zha, Q.S. Zhang, Subgrade resilience modulus measuring by portable falling weight deflectometer (PFWD), Journal of Traffic and Transportation Engineering, 4(4) (2004) 10-12.

[10] X.D. Zha, Summary of backcalculation methods of pavement layer moduli, Journal of Traffic and Transportation Engineering, 2(4) (2002) 1-6.

[11] X.D. Zha, Q.M. Xiao, Relation between pressure and deflection measured with portable falling weight deflectometer, Journal of Highway and Transportation Research and Development, 28(10) (2011) 24-28+53.

[12] X.D. Zha, B.G. Wang, Backcalculation of modulus for pavements based on homotopy method, China Journal of Highway and Transport, 16(1) (2003) 1-5.
