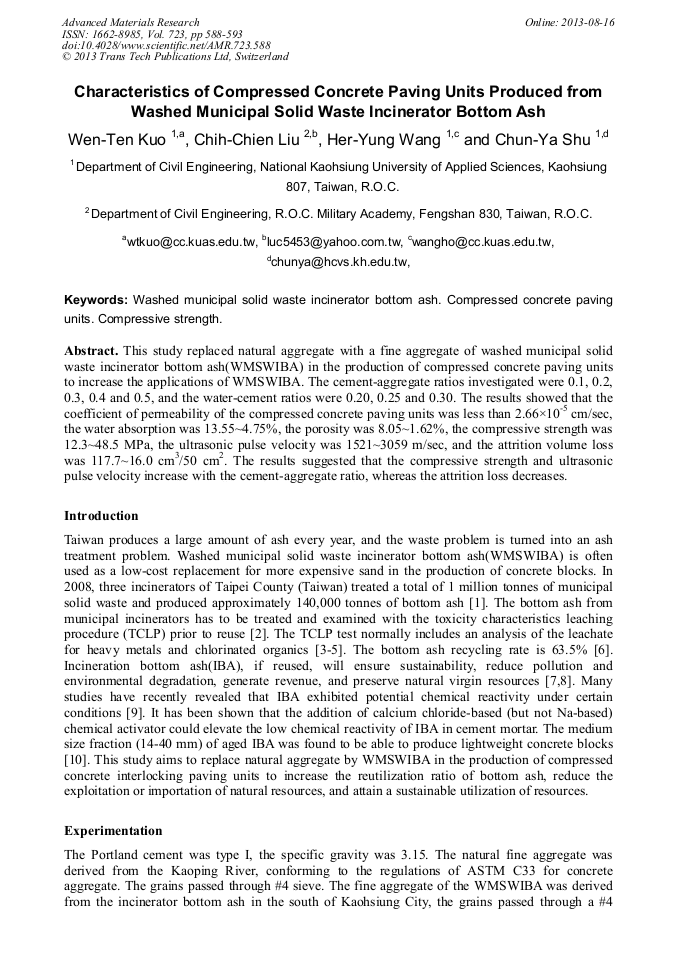

Characteristics of Compressed Concrete Paving Units Produced from Washed Municipal Solid Waste Incinerator Bottom Ash

Abstract:

This study replaced natural aggregate with a fine aggregate of washed municipal solid waste incinerator bottom ash (WMSWIBA) in the production of compressed concrete paving units to increase the applications of WMSWIBA. The cement-aggregate ratios investigated were 0.1, 0.2, 0.3, 0.4 and 0.5, and the water-cement ratios were 0.20, 0.25 and 0.30. The results showed that the coefficient of permeability of the compressed concrete paving units was less than 2.66×10^-5 cm/sec, the water absorption was 13.55~4.75%, the porosity was 8.05~1.62%, the compressive strength was 12.3~48.5 MPa, the ultrasonic pulse velocity was 1521~3059 m/sec, and the attrition volume loss was 117.7~16.0 cm³/50 cm². The results suggested that the compressive strength and ultrasonic pulse velocity increase with the cement-aggregate ratio, whereas the attrition loss decreases.

• Periodical: Advanced Materials Research (Volume 723)
• Pages: 588-593
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.723.588
• Online since: August 2013
• Authors: Wen Ten Kuo, Chih Chien Liu, Her Yung Wang, Chun Ya Shu
• Keywords: Compressed Concrete Paving Units, Compressive Strength, Washed Municipal Solid Waste Incinerator Bottom Ash

References

[1] Taiwan EPA, Operation and management of refuse incineration plants, Environmental statistics - Solid Waste Statistics, http://www.epa.gov.tw/en/statistics/c4060.pdf (2012)

[2] Taiwan EPA, Standards for defining hazardous industrial waste, No. 0960049171, Regulations, http://law.epa.gov.tw/en/laws/865316921 (2007)

[3] J.D. Chou, M.Y. Wey, H.H. Liang and S.H. Chang, Biotoxicity evaluation of fly ash and bottom ash from different municipal solid waste incinerators, J. Hazard. Mater. 168 (1) (2009) 197-202.

DOI: 10.1016/j.jhazmat.2009.02.023

[4] W.J. Huang, J.L. Tsai, M.H. Liao, Cytotoxicity of municipal solid waste incinerator ash wastes toward mammalian kidney cell lines, Chemosphere. 71 (10) (2008) 1860-1865.

DOI: 10.1016/j.chemosphere.2008.01.063

[5] Y.S. Lin, K.S. Chen, Y.C. Lin, C.H. Hung and G.P. Chang-Chien, Polychlorinated dibenzo-p dioxins/dibenzofurans distributions in ash from different units in a municipal solid waste incinerator, J. Hazard. Mater. 154 (1-3) (2008) 954-962.

DOI: 10.1016/j.jhazmat.2007.10.110

[6] Environmental Protection Administration Executive Yuan, R.O.C. (Taiwan) Web site statistical data (2010)

[7] S. Naganathan, H.A. Razak, S.N. Abdul-Hamid, Properties of controlled low-strength material made using industrial waste incineration bottom ash and quarry dust, Mater. Des. 33 (2012) 56-63.

DOI: 10.1016/j.matdes.2011.07.014

[8] S. Naganathan, H.A. Razak, S.N. Abdul-Hamid, Effect of kaolin addition on the performance of controlled low-strength material using industrial waste incineration bottom ash, Waste Manag. Res. 28 (2010) 848-860.

DOI: 10.1177/0734242x09355073

[9] A.A. A l-Rawas, A.W. Hago, R. Taha and K. Al-Kharousi, Use of incinerator ash as a replacement for cement and sand in cement mortars, Build. Environ. 40 (9) (2005) 1261-1266.

DOI: 10.1016/j.buildenv.2004.10.009

[10] X.C. Qiao, B.R. Ng, M. Tyrer, C.S. Poon and C.R. Cheeseman, Production of lightweight concrete using incinerator bottom ash, Constr. Build. Mater. 22 (4) (2008) 473-480.

DOI: 10.1016/j.conbuildmat.2006.11.013
