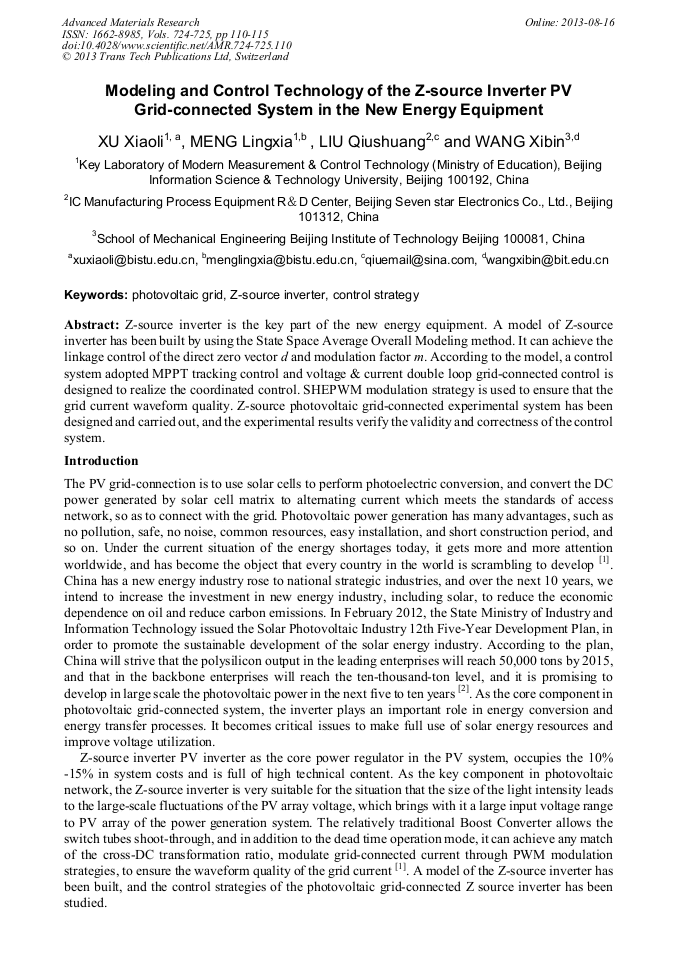

Modeling and Control Technology of the Z-Source Inverter PV Grid-Connected System in the New Energy Equipment

Abstract:

Z-source inverter is the key part of the new energy equipment. A model of Z-source inverter has been built by using the State Space Average Overall Modeling method. It can achieve the linkage control of the direct zero vector d and modulation factor m. According to the model, a control system adopted MPPT tracking control and voltage & current double loop grid-connected control is designed to realize the coordinated control. SHEPWM modulation strategy is used to ensure that the grid current waveform quality. Z-source photovoltaic grid-connected experimental system has been designed and carried out, and the experimental results verify the validity and correctness of the control system.

• Periodical: Advanced Materials Research (Volumes 724-725)
• Pages: 110-115
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.724-725.110
• Online since: August 2013
• Authors: Xiao Li Xu, Ling Xia Meng, Qiu Shuang Liu, Xi Bin Wang
• Keywords: Control Strategy, Photovoltaic Grid, Z-Source Inverter

References

[1] ZhenBiao Qi, Xing Zhang, et al. Power Electronics Technology Vol. 43 (12) (2009) (In Chinese)

[2] Information on http://www.ocn.com.cn/reports/2006103guangfufadian.html

[3] Qiushuang Liu. Doctoral thesis of Beijing Institute of Technology ( 2011) (In Chinese)

[4] Po Xu, Xing Zhang, Chongwei Zhang, et al. IEEE Annual Power Electronics Specialists Conference (2006), P.1-5

[5] Gow J. A., Manning C. D. IEE Proc. Electr.Power Appl, Vol.146 (2)(1999), P. 193-200

[6] Ruqi Cheng. Doctoral thesis of Nankai University (2010) (In Chinese)

[7] Shuitao Yang, Xinping Ding, et al. Journal of Electrical Engineering, Vol.28 (17) (2008) (In Chinese)

[8] Libo Wu. Doctoral thesis of Tsinghua University (2006) (In Chinese)

[9] Van Dyk E. E., Gxasheka A. R., Meyer E. L. Proceedings of the 29th IEEE Photovoltaic Specialists Conference (2002), P.1516-1519

[10] Wei Zhao , Shijie Yu. Relays, V30 (7) (2002), P.31-33
