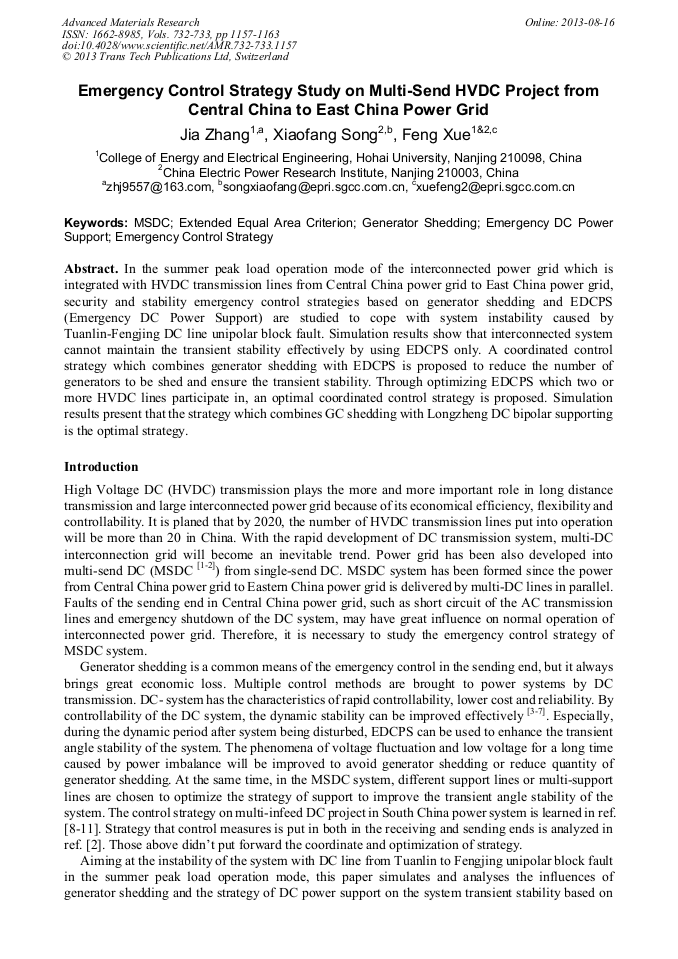

Emergency Control Strategy Study on Multi-Send HVDC Project from Central China to East China Power Grid

Abstract:

In the summer peak load operation mode of the interconnected power grid which is integrated with HVDC transmission lines from Central China power grid to East China power grid, security and stability emergency control strategies based on generator shedding and EDCPS (Emergency DC Power Support) are studied to cope with system instability caused by Tuanlin-Fengjing DC line unipolar block fault. Simulation results show that interconnected system cannot maintain the transient stability effectively by using EDCPS only. A coordinated control strategy which combines generator shedding with EDCPS is proposed to reduce the number of generators to be shed and ensure the transient stability. Through optimizing EDCPS which two or more HVDC lines participate in, an optimal coordinated control strategy is proposed. Simulation results present that the strategy which combines GC shedding with Longzheng DC bipolar supporting is the optimal strategy.

• Periodical: Advanced Materials Research (Volumes 732-733)
• Pages: 1157-1163
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.732-733.1157
• Online since: August 2013
• Authors: Jia Zhang, Xiao Fang Song, Feng Xue
• Keywords: Emergency Control Strategy, Emergency DC Power Support, Extended Equal Area Criterion, Generator Shedding, MSDC

References

[1] H. Chen, Y. He, Y. M. Zhang, et al. Interaction Analysis of Multi-send HVDC Systems of Sichuan Power Grid, Proceedings of the CSU-EPSA, Vol. 23, No. 4, 2011, pp.21-26. (in Chinese).

[2] X. J. Guo, G. Q. Bu, S. Y. Ma, et al. System Stability Control Strategy for Multi-send &multi-infeed HVDC Project from Southwest Hydropower Stations to East China Power Grid, Power System Technology, Vol. 33, No. 2, 2009, pp.56-61. (in Chinese).

[3] R. L. Lee, Melvoid DJ , Szumlas DJ , et al . Potential DC System Support to Enhance AC System Performance in the Western United States, IEEE Trans on Power Systems , Vol. 8, No. 1, 1993, pp.264-274.

DOI: 10.1109/59.221231

[4] H. F. Xie, Y. Zhang, C. J. Xia. Optimization strategy of emergency DC power support based on extended equal area criterion, Journal of South China University of Technology(Natural Science Edition), Vol. 36, No. 6, 2008, pp.127-132. (in Chinese).

[5] H. F. Xie, Y. Zhang, C. J. Xia. Study of UHV Emergency DC Power Support Strategy, Electric Power Automation Equipment, Vol. 28, No. 8, 2008, pp.1-7. (in Chinese).

[6] L. Chen, H. J. Liu, G. H. Chen. Effect Of HVDC Modulating in Three Gorges HVDC Transmission Links, High Voltage Engineering, Vol. 32, No. 3, 2006, pp.87-89. (in Chinese).

[7] K. Wang, S. C. Yang, J. G. Yao, et al. Emergency DC Power Support with Reactive Power Coordinated Control for Multi-circuit HVDC System, Automation of Electric Power Systems, Vol. 35, No. 18, 2008, pp.103-107. (in Chinese).

DOI: 10.1109/psce.2011.5772475

[8] W. D. Yang. Research on Control Strategies for Multi-infeed HVDC System, Ph.D. Thesis, Zhejiang University, Hangzhou, China, 2001. (in Chinese).

[9] W. D. Yang, Y. S. Xue, et al. Emergency DC Power Support to AC Power System in South China Power Grid, Automation of Electric Power Systems, Vol. 27, No. 17, 2008, pp.68-72. (in Chinese).

[10] H. F. Xie, Y. Zhang, C. J. Xia, et al. Issues Related to DC Power Modulation in AC/DC Hybrid System, Power System Technology , Vol. 33, No. 4, 2009, pp.43-50. (in Chinese).

[11] Z. Xu, H. M. Gao, J. P. Yang. Effect of HVDC emergent power modulation in South China power system, High Voltage Engineering, Vol. 30, No. 11, 2009, pp.24-26. (in Chinese).

[12] Y. S. Xue. Quantitative study of general motion stability, Jiangsu Science and Technology Press, Nanjing, China, 1999. (in Chinese).

[13] Y. Duan, L. Chen, B. Q. Zhang et al. Research on emergency DC power support in Central China power grid, Power System Technology, Vol. 36, No. 2, 2012, pp.104-108. (in Chinese).

[14] W. Ren. Generator shedding control for system transient stability based on transient energy, Ph.D. Thesis, Tianjin University, Tianjin, China, 2009. (in Chinese).

[15] J. M. Wang, H. D. Sun, J. Zhang et al. Stability Characteristics and Coordinated Control Strategy of Interconnected Grid Integrated with UHVDC Transmission Line from Jinping to Sunan, Power System Technology, Vol. 36, No. 12, 2012, pp.66-70.
