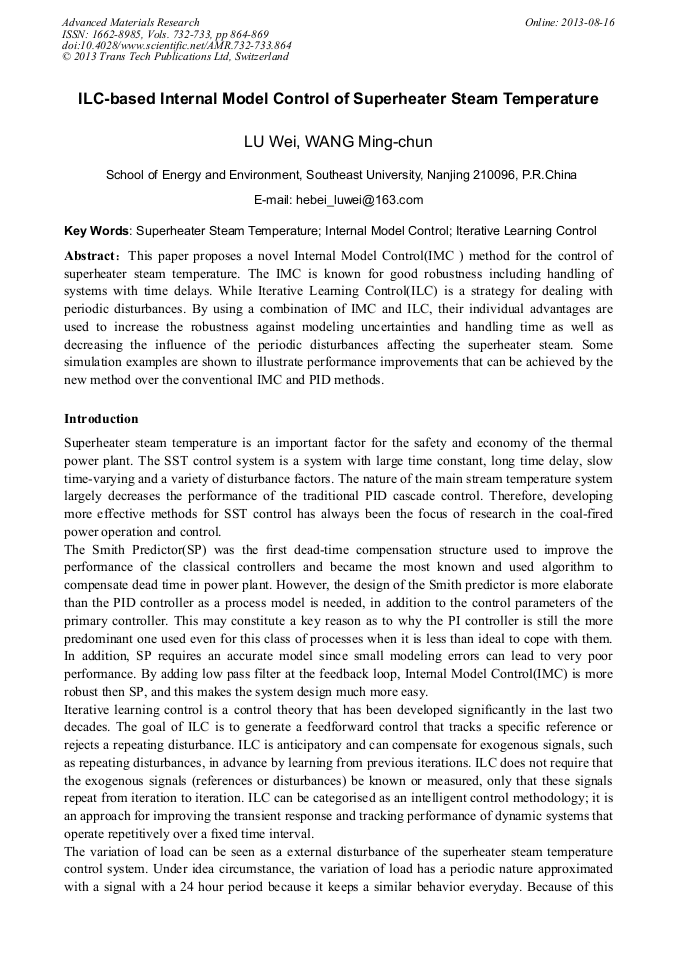

ILC-Based Internal Model Control of Superheater Steam Temperature

Abstract:

This paper proposes a novel Internal Model Control (IMC) method for the control of superheater steam temperature. The IMC is known for good robustness including handling of systems with time delays. While Iterative Learning Control (ILC) is a strategy for dealing with periodic disturbances. By using a combination of IMC and ILC, their individual advantages are used to increase the robustness against modeling uncertainties and handling time as well as decreasing the influence of the periodic disturbances affecting the superheater steam. Some simulation examples are shown to illustrate performance improvements that can be achieved by the new method over the conventional IMC and PID methods. Key Words: Superheater Steam Temperature; Internal Model Control; Iterative Learning Control

• Periodical: Advanced Materials Research (Volumes 732-733)
• Pages: 864-869
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.732-733.864
• Online since: August 2013
• Authors: Wei Lu*, Ming Chun Wang
• Keywords: Internal Model Control, Iterative Learning Control, Superheater Steam Temperature

References

[1] Han Pu, Zhu Xiyan. Digital simulation of automatic control system[M]. Beijing: China Electric Power Press, 1996,42 (in Chinese).

[2] Tao Liu, Furong Gao, and Youqing Wang. IMC-based Iterative Learning Control for Batch Processes with Uncertain Time Delay[J]. Journal of Process Control, 20(2):173–180, 2010.

DOI: 10.1016/j.jprocont.2009.10.008

[3] FANG Yong sheng, XU Zhi gao, CHEN Lai jiu. Study of adaptive fuzzy control of boiler superheated steam temperature based on dynamic mechanism analysis[J]. Proceedings of the CSEE, 1997, 17(1): 23-28 (in Chinese).

[4] Wang Guoyu, Han Pu, Wang Dongfeng, Zhou Lihui. Studies and applications of PFC-PID cascade control strategy in boiler steam temperature control system[J]. Proceedings of the CSEE, 2002, 22(12): 50-55 (in Chinese).

[5] T.Moelbak. Advanced control of superheater steam temperatures-anevaluation based on practical applications[J]. Control Engineering Practice, 1999, 7(7):1–10.

DOI: 10.1016/s0967-0661(98)00144-0

[6] X. Liu, F. Lara-Rosano, C.W. Chan. Model-reference adaptive control based on neurofuzzy networks[J]. IEEE Transactions on Systems, Man and Cybernetics C, 2004, 34(3): 302 – 309.

DOI: 10.1109/tsmcc.2003.819702

[7] Active disturbance rejection control technique – the technique for estimating and compensating the uncertainties [M]. Beijing: National defense industry press, 2008 (in Chinese).
