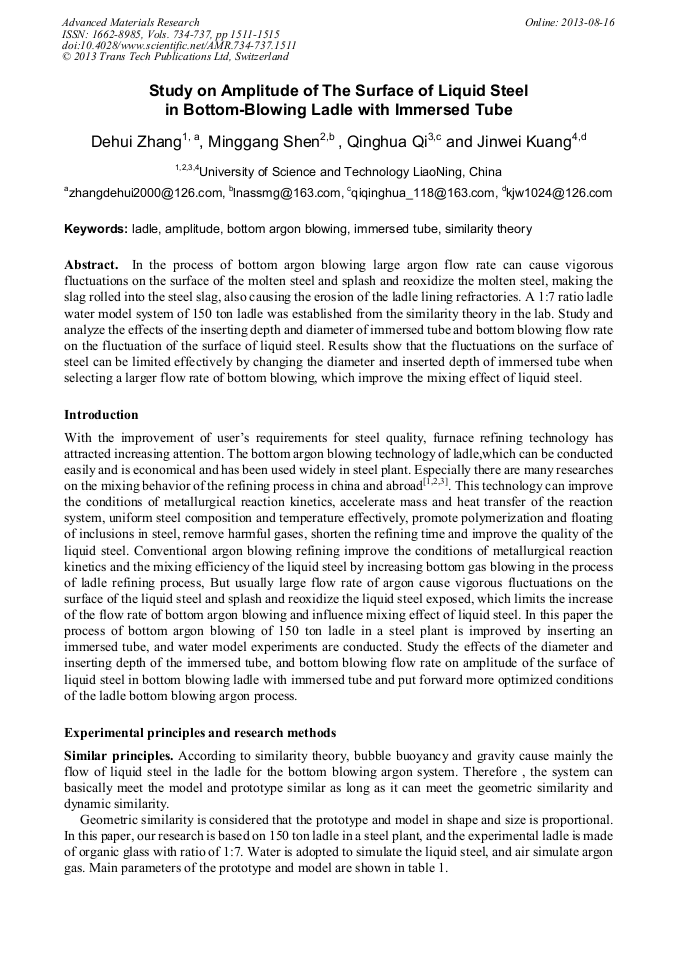

Study on Amplitude of the Surface of Liquid Steel in Bottom-Blowing Ladle with Immersed Tube

Abstract:

In the process of bottom argon blowing large argon flow rate can cause vigorous fluctuations on the surface of the molten steel and splash and reoxidize the molten steel, making the slag rolled into the steel slag, also causing the erosion of the ladle lining refractories. A 1:7 ratio ladle water model system of 150 ton ladle was established from the similarity theory in the lab. Study and analyze the effects of the inserting depth and diameter of immersed tube and bottom blowing flow rate on the fluctuation of the surface of liquid steel. Results show that the fluctuations on the surface of steel can be limited effectively by changing the diameter and inserted depth of immersed tube when selecting a larger flow rate of bottom blowing, which improve the mixing effect of liquid steel.

• Periodical: Advanced Materials Research (Volumes 734-737)
• Pages: 1511-1515
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.734-737.1511
• Online since: August 2013
• Authors: De Hui Zhang, Ming Gang Shen, Qing Hua Qi, Jin Wei Kuang
• Keywords: Amplitude, Bottom Argon Blowing, Immersed Tube, Ladle, Similarity Theory

References

[1] Wei Zhang and Hongwei Ni: Special Steel. 2007,28(4) :13-15 (In Chinese)

[2] Zhaoyang Wang and Shuguo Zheng:China Metallurgy.2012,22(10):3-12 (In Chinese)

[3] Manabu IGUCHI: Tetsu-to-Hagane. 2010,96(10): 714-719 (In Japanese)

[4] Dongli Zhang,Yantao Bi and Chuanhua Chen: Shanghai Metals. 2004,26(5):19-21 (In Chinese)

[5] Lei Yu and Ping He: Special Steel, 2008,29(1):28-30. (In Chinese)
