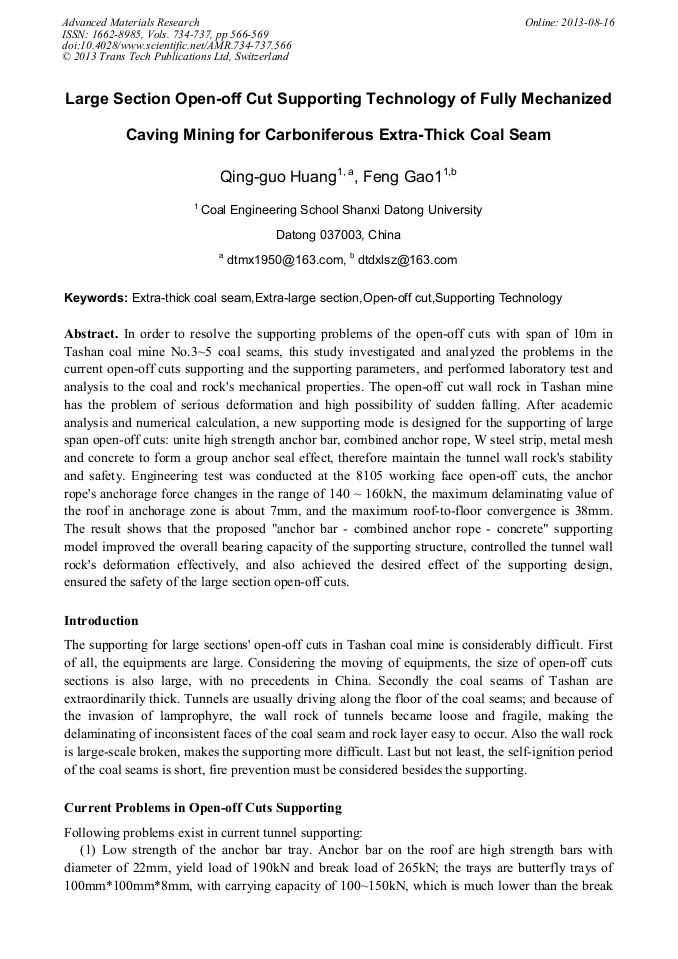

Large Section Open-Off Cut Supporting Technology of Fully Mechanized Caving Mining for Carboniferous Extra-Thick Coal Seam

Abstract:

In order to resolve the supporting problems of the open-off cuts with span of 10m in Tashan coal mine No.3~5 coal seams, this study investigated and analyzed the problems in the current open-off cuts supporting and the supporting parameters, and performed laboratory test and analysis to the coal and rock's mechanical properties. The open-off cut wall rock in Tashan mine has the problem of serious deformation and high possibility of sudden falling. After academic analysis and numerical calculation, a new supporting mode is designed for the supporting of large span open-off cuts: unite high strength anchor bar, combined anchor rope, W steel strip, metal mesh and concrete to form a group anchor seal effect, therefore maintain the tunnel wall rock's stability and safety. Engineering test was conducted at the 8105 working face open-off cuts, the anchor rope's anchorage force changes in the range of 140 ~ 160kN, the maximum delaminating value of the roof in anchorage zone is about 7mm, and the maximum roof-to-floor convergence is 38mm. The result shows that the proposed "anchor bar - combined anchor rope - concrete" supporting model improved the overall bearing capacity of the supporting structure, controlled the tunnel wall rock's deformation effectively, and also achieved the desired effect of the supporting design, ensured the safety of the large section open-off cuts.

• Periodical: Advanced Materials Research (Volumes 734-737)
• Pages: 566-569
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.734-737.566
• Online since: August 2013
• Authors: Qing Guo Huang*, Feng Gao
• Keywords: Extra-Large Section, Extra-Thick Coal Seam, Open-Off Cut, Supporting Technology

References

[1] Wu,Y.P. Research of Rock Pressure Appear Pattern of Extra-thick Coal Seam Fully Mechanized Caving Mining Face in Datong Mine [J] Coal Science and Technology, 2008, 36(1); 8-10.

DOI: 10.1109/icmt.2011.6002055

[2] Huang, Q.G. Key Technology of Fully Mechanized Caving Mining in Extra-thick Coal Seam of Tashan Mine [J]. Coal Science and Technology, 2009, 39(2); 22-24.

DOI: 10.1109/icmt.2011.6002055

[3] Kong, L.H., Jiang, F.X., Liu, J. et al. Reasonable With Micro-seismicity Monitoring of Coal Pillar in Extra-thick Coal Seam Fully Mechanized Caving Mining [J]. Journal of Coal Science & Engineering, 2009, 34(7); 872-874.

DOI: 10.1109/icmt.2011.6002055
