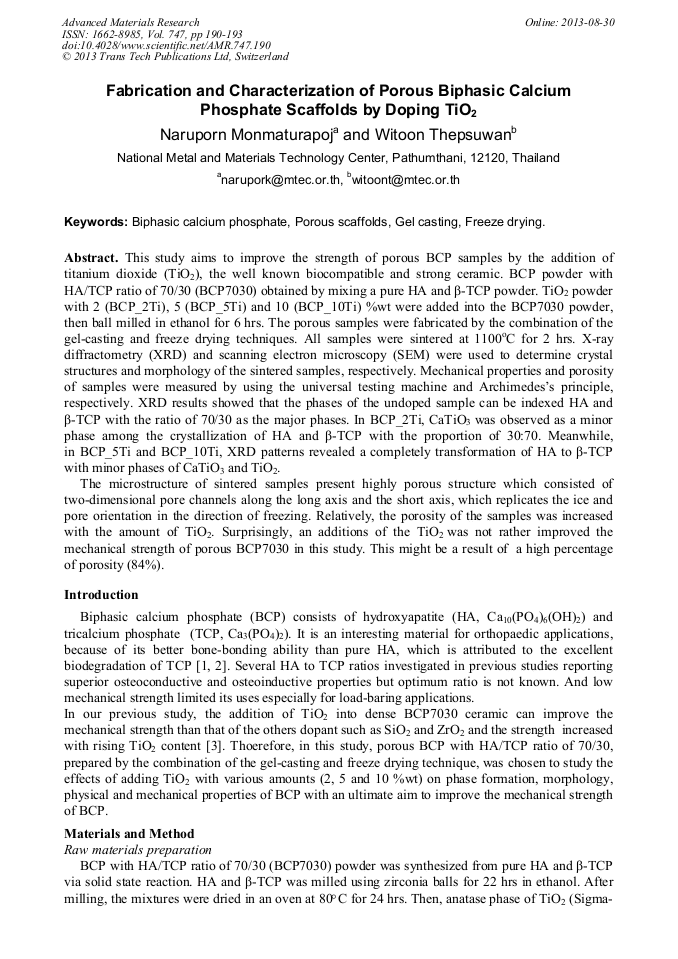

Fabrication and Characterization of Porous Biphasic Calcium Phosphate Scaffolds by Doping TiO₂

Abstract:

This study aims to improve the strength of porous BCP samples by the addition of titanium dioxide (TiO₂), the well known biocompatible and strong ceramic. BCP powder with HA/TCP ratio of 70/30 (BCP7030) obtained by mixing a pure HA and β-TCP powder. TiO₂ powder with 2 (BCP_2Ti), 5 (BCP_5Ti) and 10 (BCP_10Ti) %wt were added into the BCP7030 powder, then ball milled in ethanol for 6 hrs. The porous samples were fabricated by the combination of the gel-casting and freeze drying techniques. All samples were sintered at 1100°C for 2 hrs. X-ray diffractometry (XRD) and scanning electron microscopy (SEM) were used to determine crystal structures and morphology of the sintered samples, respectively. Mechanical properties and porosity of samples were measured by using the universal testing machine and Archimedess principle, respectively. XRD results showed that the phases of the undoped sample can be indexed HA and β-TCP with the ratio of 70/30 as the major phases. In BCP_2Ti, CaTiO₃ was observed as a minor phase among the crystallization of HA and β-TCP with the proportion of 30:70. Meanwhile, in BCP_5Ti and BCP_10Ti, XRD patterns revealed a completely transformation of HA to β-TCP with minor phases of CaTiO₃ and TiO₂. The microstructure of sintered samples present highly porous structure which consisted of two-dimensional pore channels along the long axis and the short axis, which replicates the ice and pore orientation in the direction of freezing. Relatively, the porosity of the samples was increased with the amount of TiO₂. Surprisingly, an additions of the TiO₂ was not rather improved the mechanical strength of porous BCP7030 in this study. This might be a result of a high percentage of porosity (84%).

• Periodical: Advanced Materials Research (Volume 747)
• Pages: 190-193
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.747.190
• Online since: August 2013
• Authors: Naruporn Monmaturapoj, Witoon Thepsuwan
• Keywords: Biphasic Calcium Phosphate, Freeze Drying, Gel Casting, Porous Scaffolds

References

[1] O.E. Petrov, E. Dyulgerova, L. Petrov, R. Popova, Characterization of calcium phosphate phases obtained during the preparation of sintered biphase Ca–P ceramics, Mater. Lett. 48 (2001) 162-167.

DOI: 10.1016/s0167-577x(00)00297-4

[2] G. Daculsi, Biphasic calcium phosphate concept applied to artificial bone, implant coating and injectable bone substitute, Biomater. 19 (1998) 1473-1478.

DOI: 10.1016/s0142-9612(98)00061-1

[3] N. Monmaturapoj, W. Thepsuwan, Preparation and characterization of modified biphasic calcium phosphate ceramics, Adv. Mater. Res. 506 (2012) 74-77.

DOI: 10.4028/www.scientific.net/amr.506.74

[4] Q. Fu, M.N. Rahaman, F. Dogan, S. Bal, Freeze casting of porous hydroxyapatite scaffolds, J. Biomed. Mater. Res. B Appl. Biomater. 86B (2008) 125-135.

DOI: 10.1002/jbm.b.30997

[5] T.A. Vu, R.B. Heimann, Influence of the CaO/TiO2 ratio on thermal stability of hydroxyapatite in the system Ca5(PO4)3OH-CaO-TiO2, J. Mater. Sci. Lett. 16 (1997) 1680-1682.
