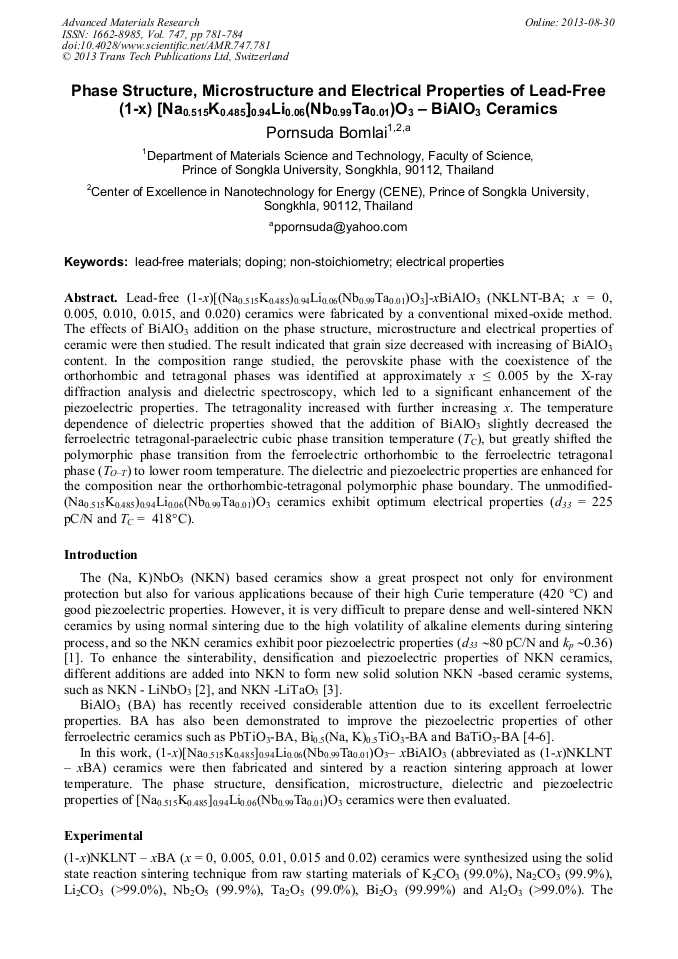

Phase Structure, Microstructure and Electrical Properties of Lead-Free (1-x) [Na_0.515K_0.485]_0.94Li_0.06(Nb_0.99Ta_0.01)O_{3 -} BiAlO₃ Ceramics

Abstract:

Lead-free (1-x)[(Na_0.515K_0.485)_0.94Li_0.06(Nb_0.99Ta_0.01)O₃]-xBiAlO₃ (NKLNT-BA; x = 0, 0.005, 0.010, 0.015, and 0.020) ceramics were fabricated by a conventional mixed-oxide method. The effects of BiAlO₃ addition on the phase structure, microstructure and electrical properties of ceramic were then studied. The result indicated that grain size decreased with increasing of BiAlO₃ content. In the composition range studied, the perovskite phase with the coexistence of the orthorhombic and tetragonal phases was identified at approximately x 0.005 by the X-ray diffraction analysis and dielectric spectroscopy, which led to a significant enhancement of the piezoelectric properties. The tetragonality increased with further increasing x. The temperature dependence of dielectric properties showed that the addition of BiAlO₃ slightly decreased the ferroelectric tetragonal-paraelectric cubic phase transition temperature (T_C), but greatly shifted the polymorphic phase transition from the ferroelectric orthorhombic to the ferroelectric tetragonal phase (T_OT) to lower room temperature. The dielectric and piezoelectric properties are enhanced for the composition near the orthorhombic-tetragonal polymorphic phase boundary. The unmodified-(Na_0.515K_0.485)_0.94Li_0.06(Nb_0.99Ta_0.01)O₃ ceramics exhibit optimum electrical properties (d₃₃ = 225 pC/N and T_C = 418°C).

• Periodical: Advanced Materials Research (Volume 747)
• Pages: 781-784
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.747.781
• Online since: August 2013
• Authors: Pornsuda Bomlai
• Keywords: Doping, Electrical Properties, Lead-Free Materials, Non-Stoichiometry

References

[1] H. Birol, D. Damjanovic, N. Setter, Preparation and characterization of (K0. 5Na0. 5)NbO3 ceramics, J. Eur. Ceram. Soc. 26 (2006) 861-866.

DOI: 10.1016/j.jeurceramsoc.2004.11.022

[2] Y. Guo, K.I. Kakimoto, H. Ohsato, Phase transitional behavior and piezoelectric properties (Na0. 5K0. 5)NbO3 – LiNbO3 ceramics, Appl. Phys. Lett. 85 (2004) 4121-4123.

DOI: 10.1063/1.1813636

[3] ‏ Y. Saito, H. Takao, High performance lead-free piezoelectric ceramics in the (K, Na)NbO3 – LiTaO3 solid solution system, Ferroelectrics. 338 (2006) 17-32.

DOI: 10.1080/00150190600732512

[4] N. Vittayakorn, B. Boonchom, Effect of BiAlO3 modification on the stability of antiferroelectric phase in PbZrO3 ceramics prepared by conventional solid state reaction, J. Alloys. Compd. 509 (2011) 2304–2310.

DOI: 10.1016/j.jallcom.2010.10.206

[5] A. Ullah, C.W. Ahn, A. Hussain, S.Y. Lee, H. J. Lee, I.W. Kim, Phase transition and large electric field-induced strain in BiAlO3-modified Ba0. 5(Na, K)0. 5TiO3 lead-free piezoelectric ceramics. Curr. Appl. Phys. 10 (2010)1174-1181.

DOI: 10.1016/j.cap.2010.02.006

[6] H. Yu, Z.G. Ye, Dielectric properties and relaxor behavior of a new (1 − x)BaTiO3–xBiAlO3 solid solution, J. Appl. Phys. 103 (2008) 034114.

DOI: 10.1063/1.2838479

[7] P. Bomlai, P. Sinsap, S. Muensit, S.J. Milne, Effect of MnO on the phase development, microstructures, and dielectric properties of 0. 95Na0. 5K0. 5NbO3 – 0. 05LiTaO3 ceramics, J. Am. Ceram. Soc. 91 (2008) 624-627.

DOI: 10.1111/j.1551-2916.2007.02130.x
