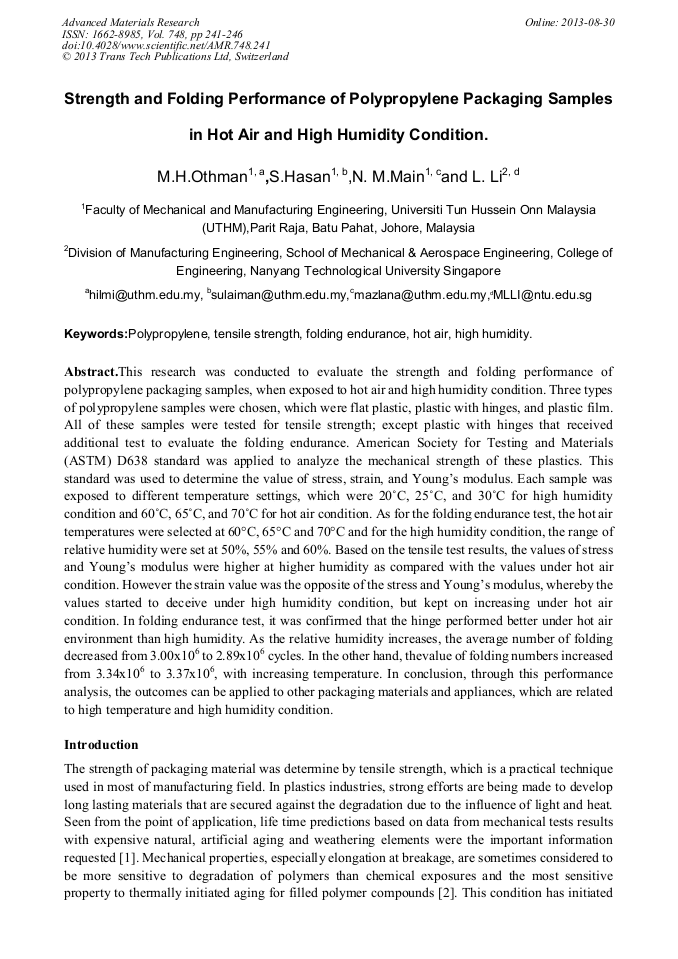

Strength and Folding Performance of Polypropylene Packaging Samples in Hot Air and High Humidity Condition

Abstract:

This research was conducted to evaluate the strength and folding performance of polypropylene packaging samples, when exposed to hot air and high humidity condition. Three types of polypropylene samples were chosen, which were flat plastic, plastic with hinges, and plastic film. All of these samples were tested for tensile strength; except plastic with hinges that received additional test to evaluate the folding endurance. American Society for Testing and Materials (ASTM) D638 standard was applied to analyze the mechanical strength of these plastics. This standard was used to determine the value of stress, strain, and Young’s modulus. Each sample was exposed to different temperature settings, which were 20°C, 25°C, and 30°C for high humidity condition and 60°C, 65°C, and 70°C for hot air condition. As for the folding endurance test, the hot air temperatures were selected at 60°C, 65°C and 70°C and for the high humidity condition, the range of relative humidity were set at 50%, 55% and 60%. Based on the tensile test results, the values of stress and Young’s modulus were higher at higher humidity as compared with the values under hot air condition. However the strain value was the opposite of the stress and Young’s modulus, whereby the values started to deceive under high humidity condition, but kept on increasing under hot air condition. In folding endurance test, it was confirmed that the hinge performed better under hot air environment than high humidity. As the relative humidity increases, the average number of folding decreased from 3.00x10⁶ to 2.89x10⁶ cycles. In the other hand, thevalue of folding numbers increased from 3.34x10⁶ to 3.37x10⁶, with increasing temperature. In conclusion, through this performance analysis, the outcomes can be applied to other packaging materials and appliances, which are related to high temperature and high humidity condition.

• Periodical: Advanced Materials Research (Volume 748)
• Pages: 241-246
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.748.241
• Online since: August 2013
• Authors: Mohd Hilmi Othman, Hasan Sulaiman, N.M. Main, L. Li
• Keywords: Folding Endurance, High Humidity, Hot Air, Polypropylene (PP), Tensile Strength

References

[1] C. Maeir, T. Calafut, Polypropylene: The Definitive User's Guide and Databook (Plastic Design Library), William Andrew; 1999, p.225.

[2] H. Zweifel, R. D Maier, M. Schiller, Plastic Additives Handbook, Hanser Gardner Publications, 2009, p.623.

[3] D. Briassoulis, The effects of tensile stress and the agrochemical Vapam on the ageing of low density polyethylene (LDPE) agricultural films. Part I. Mechanical behavior, Polymer Degradation and Stability, vol. 88, Issue 3, pp.489-503, June (2005).

DOI: 10.1016/j.polymdegradstab.2004.11.021

[4] O. Guseva, A. Lichtblau. Application of smoothing methods for estimation of service life for polymers from tensile testing, Polymer Testing, vol. 24, Issue 6, pp.718-727, September (2005).

DOI: 10.1016/j.polymertesting.2005.04.009

[5] http: /www. tiniusolsen. com/types-of-tests/Folding-Endurance-test. html. Access on 25 May (2012).

[6] http: /www. projects. juliantrubin. com/science_fair_project/chemistry/hot_air_balloon_1. html. Access on 25 May (2012).

[7] http: /www. wcaslab. com/tech/tbftir. htm. Access on 25 May (2012).

[8] ASTM D638 - 10 Standard Test Method for Tensile Properties of Plastics ASTM Volume 08. 01 Plastics (I): D256-D3159. 2012. http: /www. astm. org/Standards/D638. htm.

DOI: 10.1007/978-1-4419-6247-8_858

[9] Polypropylene film http: /www. paperandfilm. com/polypropylenefilm-ppfilm. aspx. Access on 25 May (2012).
