The Hydraulic Manifold Block Pore Checking CAD Explore

Abstract:

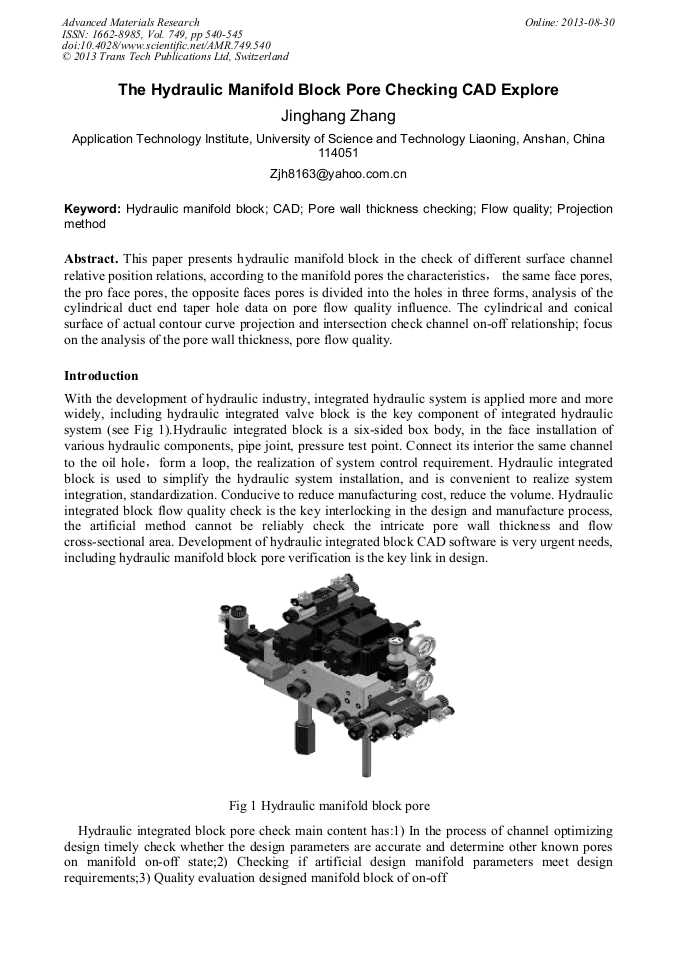

This paper presents hydraulic manifold block in the check of different surface channel relative position relations, according to the manifold pores the characteristics, the same face pores, the pro face pores, the opposite faces pores is divided into the holes in three forms, analysis of the cylindrical duct end taper hole data on pore flow quality influence. The cylindrical and conical surface of actual contour curve projection and intersection check channel on-off relationship; focus on the analysis of the pore wall thickness, pore flow quality.
