Physico-Mechanical Properties of the Cr-C and Mo-C Coatings

Abstract:

The investigation of physico-mechanical properties of metal-carbon (Cr-C and Mo-C) coatings obtained using pulsed vacuum arc deposition has been carried out. Changing the arc discharge pulse repetition rate of the individual plasma sources equipped with metal and graphite cathodes allows significant varying of the composition, surface roughness and friction coefficient of the coatings. When reducing the pulse repetition rate in metal plasma source from 10 Hz to 5 Hz while retaining that constant in carbon source, the metal content in the coating can be decreased from 30 at.% to 2 at. % with increasing the surface roughness by a factor of 3.5. The tribological investigations of Cr-C and Mo-C coatings under the dry friction conditions showed the uniform adhesive wear of the coating upper layers. The coefficient of friction measured against steel counterbody was in the range of 0.08 to 0.1. However, in this case Mo-C coatings were more wear-resistant than Cr-C coatings.

You might also be interested in these eBooks

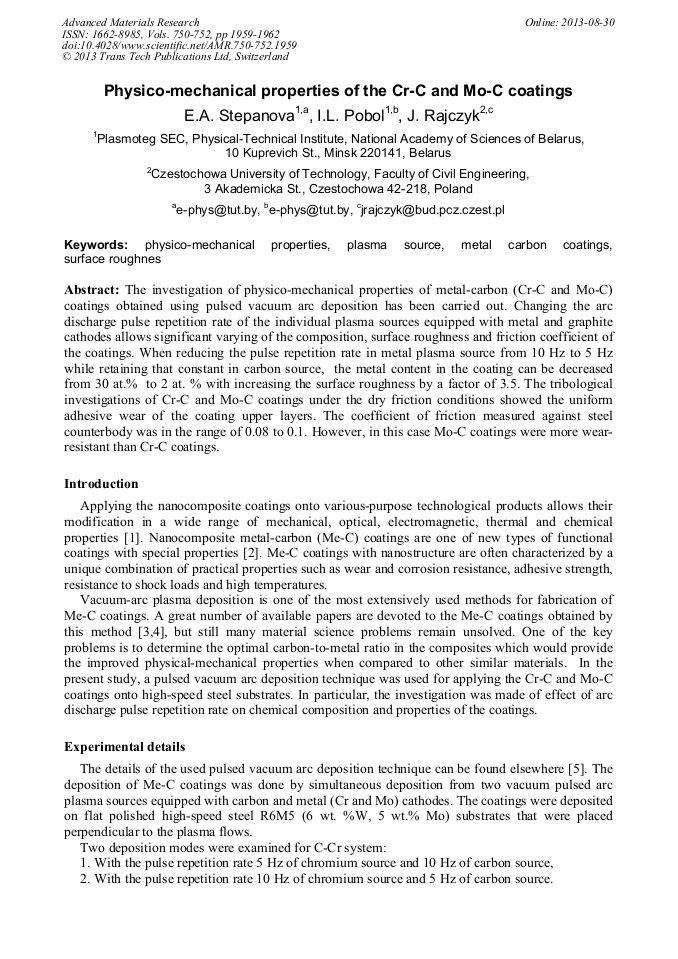

View Preview

Info:

Periodical:

Advanced Materials Research (Volumes 750-752)

Pages:

1959-1962

DOI:

https://doi.org/10.4028/www.scientific.net/AMR.750-752.1959

Citation:

Cite this paper

Online since:

August 2013

Authors:

Е.A. Stepanova, I.L. Pobol, J. Rajczyk

Keywords:

Metal Carbon Coatings, Physico-Mechanical Properties, Plasma Source, Surface Roughness (SR)

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] Gerhards I., Ronning C., Hofsäss H. et al. Synthesis and characterisation of metal containing amorphous carbon thin films / J. Appl. Phys. 2003. V. 93. Р. 1203-1207.

DOI: 10.1063/1.1531211

Google Scholar

[2] Charitidis C.A. Nanomechanical and nanotribological properties of carbon-based thin films: A review / Int. J. Refr. Metals Hard Mater. 2010. V. 28. P. 51-70.

DOI: 10.1016/j.ijrmhm.2009.08.003

Google Scholar

[3] Lungu C.P., Lungu A.M., Chiru P. et al. Low friction properties of nano-structured C-Ni films prepared by thermionic vacuum arc method / Int. J. Surf. Sci. Eng. 2010. V. 4. P. 191-200.

DOI: 10.1504/ijsurfse.2010.030489

Google Scholar

[4] Balaceanu M., Braic V, Braic M. et al. Characteristics of Ti-Nb, Ti-Zr and Ti-Al containing hydrogenated carbon nitride films / J. Solid State Sci. 2009. V. 11. P. 1773-1777.

DOI: 10.1016/j.solidstatesciences.2008.12.001

Google Scholar

[5] Tochitsky E.I., Selifanov O.V., Akulich V.V. et al. Electrical erosion pulsed plasma accelerators for preparing diamond-like carbon coatings / J. Surf. Coat. Technol., 1991. V. 47. P. 522-527.

DOI: 10.1016/0257-8972(91)90320-v

Google Scholar
