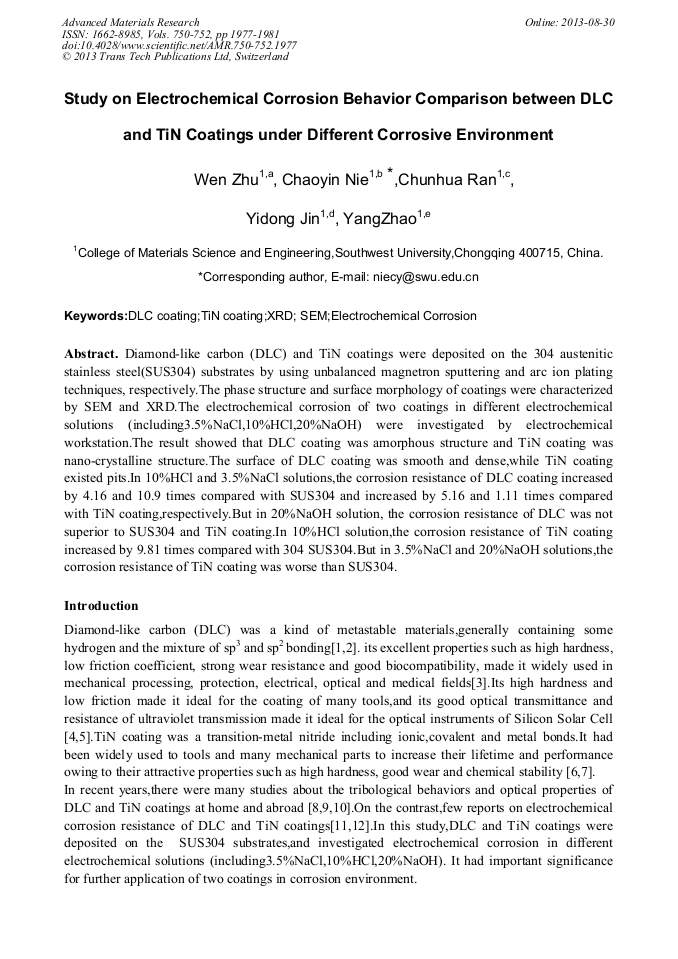

Study on Electrochemical Corrosion Behavior Comparison between DLC and TiN Coatings under Different Corrosive Environment

Abstract:

Diamond-like carbon (DLC) and TiN coatings were deposited on the 304 austenitic stainless steel(SUS304) substrates by using unbalanced magnetron sputtering and arc ion plating techniques, respectively. The phase structure and surface morphology of coatings were characterized by SEM and XRD.The electrochemical corrosion of two coatings in different electrochemical solutions (including3.5%NaCl,10%HCl,20%NaOH) were investigated by electrochemical workstation.The result showed that DLC coating was amorphous structure and TiN coating was nano-crystalline structure.The surface of DLC coating was smooth and dense,while TiN coating existed pits.In 10%HCl and 3.5%NaCl solutions,the corrosion resistance of DLC coating increased by 4.16 and 10.9 times compared with SUS304 and increased by 5.16 and 1.11 times compared with TiN coating,respectively.But in 20%NaOH solution, the corrosion resistance of DLC was not superior to SUS304 and TiN coating.In 10%HCl solution,the corrosion resistance of TiN coating increased by 9.81 times compared with 304 SUS304.But in 3.5%NaCl and 20%NaOH solutions,the corrosion resistance of TiN coating was worse than SUS304.

• Periodical: Advanced Materials Research (Volumes 750-752)
• Pages: 1977-1981
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.750-752.1977
• Online since: August 2013
• Authors: Wen Zhu, Chao Yin Nie, Chun Hua Ran, Yi Dong Jin, Yang Zhao
• Keywords: DLC Coating, Electrochemical Corrosion, SEM, TiN Coating, X-Ray Diffraction (XRD)

References

[1] J. Robertson, Mater. Sci. Eng. R37(2002)129.

[2] J. Robertson, Surf. Coat. Technol, 50(1992)185.

[3] P.R. Goglia,J. Berkowitz,J. Hoehn,A. Hidis,L. Stover, Diamond Relat. Mater. 10(2001)271.

[4] V.M. Elinson V.V. Sleptsov A.N. Laymin, Diamond Relat. Mater. 1999(8): (2013).

[5] K. Donnelly D.P. Dowling M.L. McConnell R.V. Flood. Diamond Relat. Mater. 1999(8): 538.

[6] S. Boelens,H. Veltrop: Hard coatings of TiN, (TiHf)N and (TiNb)N deposited by random and steered arc evaporation. Surf. Coat. Technol, 33(1987), pp.63-71.

DOI: 10.1016/0257-8972(87)90177-0

[7] Seog-Young Yoon, Kwang O Lee, Sung Soo Kang, Kwang Ho Kim: Comparison for mechanical properties between TiN and TiAlN coating layers by AIP technique. Volumes, 2002(20).

DOI: 10.1016/s0924-0136(02)00746-x

[8] Fukarek. W, Chhowalla. M, Kleinsorge B: Electrical and optical properties of boronated tetrahedrally bonded amorphous carbon(ta-c: B). Diamond and Related Materials. 1998(7): 472.

DOI: 10.1016/s0925-9635(97)00238-0

[9] S.J. Bull: Tribology of carbon coatings: DLC, diamond and beyond. Diamond and Related Materials 4(1995): 827-836.

DOI: 10.1016/0925-9635(94)05325-1

[10] Young-Ze Lee, Ki-Hun Jeong: Wear-life diagram of TiN-Coated steels. Volume, 1998(15): 175-1 81.

[11] M. Azzi,P. Amirault,M. Paquette J.E. Klemberg-Sapieha: Corrosion performance and mechanical stability of 316/DLC coating system: Role of interlayers.

DOI: 10.1016/j.surfcoat.2010.05.004

[12] Ying Li, Li Qu, Fuihui Wang: The electrochemical corrosion behavior of TiN and (Ti, Al)N coatings in acid and salt solution. Volume, 2003(7): 1367-1381.

DOI: 10.1016/s0010-938x(02)00223-8

[13] Nie Chaoyin, Zhang Biyun, Xie Hongme: Structure analysis of Ti-doped DLC coatings deposited by unbalanced magnetron sputtering. Acta Metallurgica Sinica. 2007(11): 1207-1210.

[14] Xie Hongmei, Nie chaoyin: Tribological properties of TiN films under different testing conditions. Vacuum, 2009(4): 32-35.

[15] M.I. Jones I.R. McColl D.M. Grant: Effect of substrate preparation and deposition conditions on the preferred orientation of TiN coatings deposited by RF reactive sputtering, Surf. Coat, Technol. 132(2000)143-151.

DOI: 10.1016/s0257-8972(00)00867-7

[16] J. Laimer,H. Stori,P. Rodhammer, Plasma-assisted chemical vapor deposition of titanium nitride in a capacitively couple radiofrequency discharge, J, Vac. Sci. Technol. A7(5)(1989)3952-2959.
