Cyclic Voltammetric Studies of the Behavior of Pb-0.3%Ag-0.06%Ca Rolled Alloy Anode during and after Zinc Electrowinning

Abstract:

In this paper, electrochemical behaviour of Pb0.3%Ag0.06%Ca rolled alloy anode during the 6 days galvanostatic electrolysis in acid zinc sulphate electrolyte solution was investigated with Cyclic Voltammetry (CV) techniques. The phase composition of the anodic oxide layers during the electrolysis was observed using X-Ray Diffraction (XRD). The results revealed that with the increasing electrolysis time, the anodic peak (PbPbSO₄) is mainly present a rise trend in the first day electrolysis, thereafter, almostly keep a constant value. And the anodic peak (PbPbSO₄) gradually moved in the positive direction while the anodic peak (PbSO₄β-PbO₂, PbOα-PbO₂) strongly moved in the negative direction. The cathodic peak (β-PbO₂ and α-PbO₂PbSO₄) and (PbO and PbSO₄Pb) mainly present a rise trend and gradually moved in the negative direction. Besides, the corrosion phase of the anodic oxide layers mainly consist of PbSO₄, Pb, α-PbO₂ and PbS₂O₃. After electrolysis for 3 days, the major phase of the anodic oxide layers is PbSO₄ with a few Pb phase. When the electrolysis reaches the 6th day, the major phase of the anodic oxide layers is also PbSO₄ with a few α-PbO₂ phase. The preferred growth orientation of PbSO₄ is (021) ,(121) and (212) planes.

You might also be interested in these eBooks

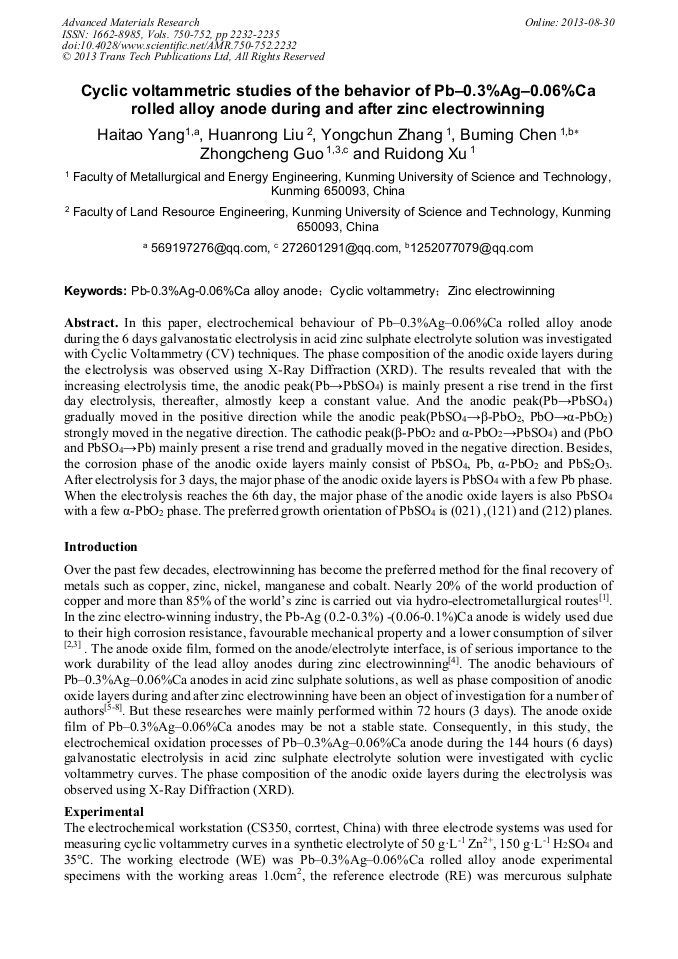

View Preview

Info:

Periodical:

Advanced Materials Research (Volumes 750-752)

Pages:

2232-2235

DOI:

https://doi.org/10.4028/www.scientific.net/AMR.750-752.2232

Citation:

Cite this paper

Online since:

August 2013

Authors:

Hai Tao Yang, Huan Rong Liu, Yong Chun Zhang, Bu Ming Chen, Zhong Cheng Guo, Rui Dong Xu

Keywords:

Cyclic Voltammetry (CV), Pb-0.3%Ag-0.06%Ca Alloy Anode, Zinc Electrowinning

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] V. Tjandrawan, PhD thesis, the role of manganese in the electrowinning of copper and xinc, Murdoch University, (2010).

Google Scholar

[2] W. Zhang, G. Houlachi. Hydrometallurgy, 104(2010)129-135.

Google Scholar

[3] H.T. Yang, B.M. Chen, Z.C. Guo. Journal of Kunming university of science and technology, 36(6)(2011) 21-25(in Chinese).

Google Scholar

[4] T. Dobrev, I. Valchanova, Y. Stefanov and S. Magaeva. T. I. Met. Finish, 87(2009) 136-140.

Google Scholar

[5] Y.Q. Lai, Y. Li, L.X. Jiang, W. X, X.J. Lv, J. Li, Y.X. Liu. J. Electroanal. Chem, 671(2012) 16-23.

Google Scholar

[6] Y. Li, L.X. Jiang, X.J. Lv, Y.Q. Lai, H.L. Zhang, J. Li, Y.X. Liu. Hydrometallurgy, 109 (2011) 252-257.

Google Scholar

[7] S.T. Rashkov, Y. Stefanov, Z. Noncheva, M. Petrova, T.S. Dobrev, N. Kunchev, D. Petrov, S.T. Vlaev, V. Mihnev, S. Zarev, L. Georgieva, D. Buttinelli. Hydrometallurgy, 40 (1996) 319-334.

DOI: 10.1016/0304-386x(95)00010-e

Google Scholar

[8] W. Zhang, G. Houlachi. Hydrometallurgy, 104 (2010) 129.

Google Scholar

[9] Y. Yamamoto, K. Fumino, T. Ueda, M. Nambu. Electrochimica Acta, 37(1992)199-203.

Google Scholar
